China

Chengyue CY-SPC8-PMMA-RDB acrylic 8 inch Spinning Coater with peristaltic pump

0~10000Rpm, Acceleration 100~5000rpm/s, substrate size diameter ≤ 8 inches, acrylic cavity material, easy to observe the spin coating state, manual glue drop, optional precision syringe pump, Linear dispersion.
Certificate
Contact
Details SPEC

ChengYue CY-SPC8-PMMA-RDB Spin CoaterSPEC

ChengYue CY-SPC8-PMMA-RDB Spin CoaterDetails

ChengYue CY-SPC8-PMMA-RDB Spin CoaterPacking list

SKU
NB048299
supply Voltage
AC220V，50Hz
Rotation speed
0~10000rpm
Acceleration
100~5000rpm/s
Rotation speed resolution
1rpm
single step time
3000s
Cavity material
Acrylic material, easy to observe the spin coating state
lid
PP material with injection tube bracket
Operation mode
7 inch high definition LCD touch screen
Epoxy method
Manual glue drop, optional precision syringe pump
Linear dispersion
Linear dispersion 5 segments each, a total of 5 Linear dispersions can be stored
Extraction port
φ 8mm quick screw interface
Machine size
290mm×365mm×260mm
Machine Weight
22kg
CY-SPC8-PMMA-RDB
Spin Coater
0~10000Rpm, Acceleration 100~5000rpm/s, substrate size diameter ≤ 8 inches, acrylic cavity material, easy to observe the spin coating state, manual glue drop, optional precision syringe pump, Linear dispersion.

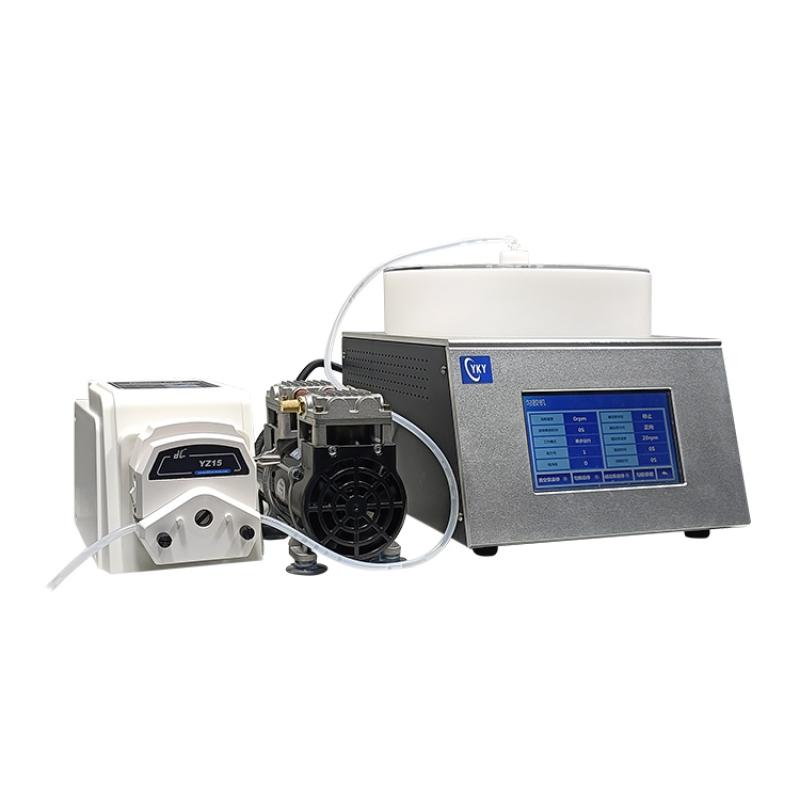

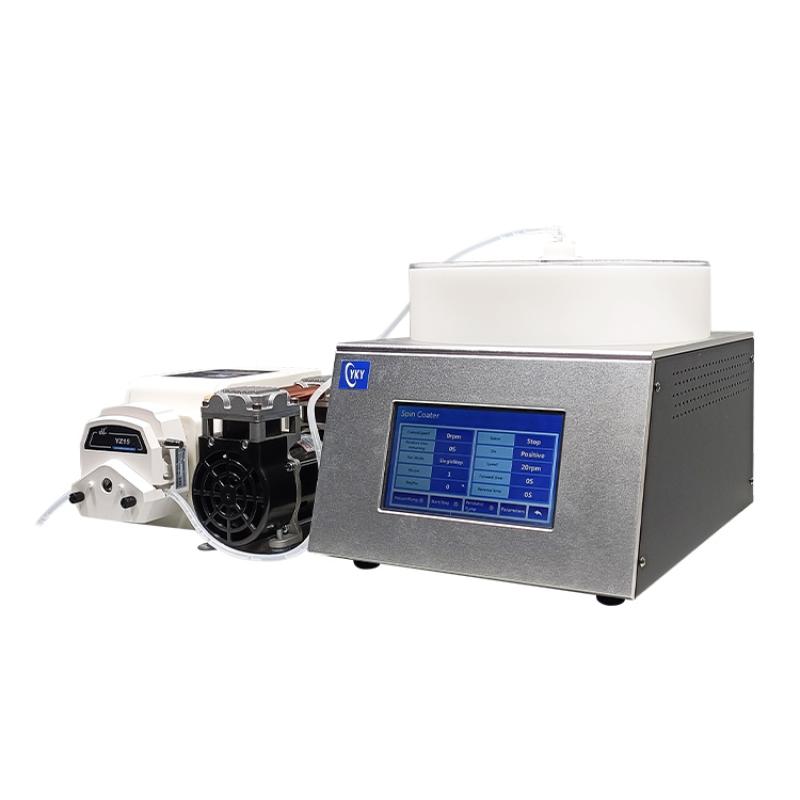

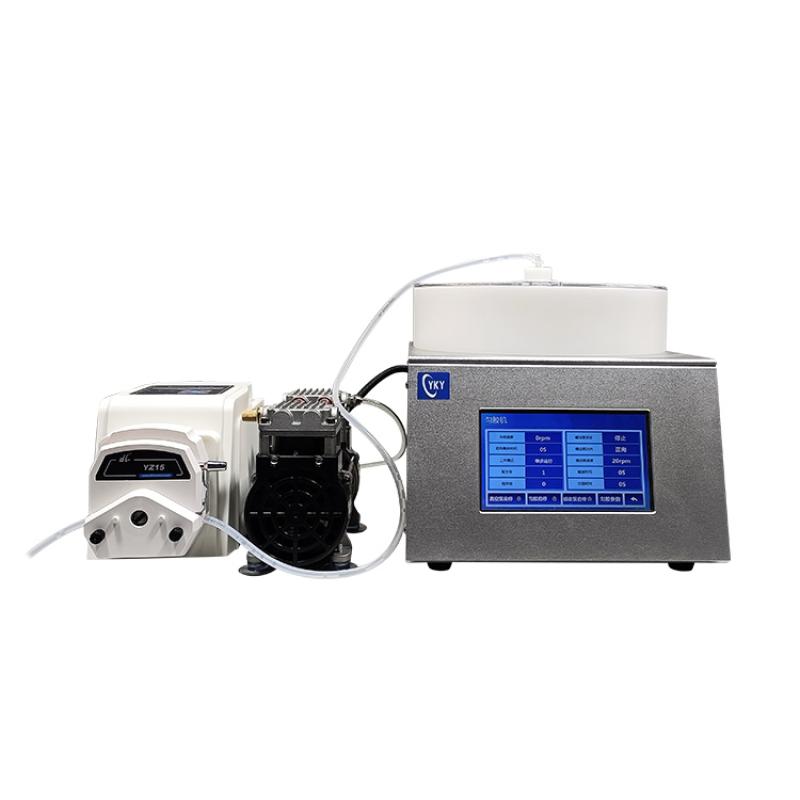

Chengyue CY-SPC8-PMMA-RDB acrylic 8 inch Spinning Coater with peristaltic pump Picture

The acrylic eight-inch homogenizer has been miniaturized and designed, with an overall aluminum alloy structure, and the cavity is made of transparent acrylic, which is beautiful and solid in appearance. The instrument adopts advanced precision motor, and the speed can reach 10,000 rpm, which effectively guarantees the uniformity of film formation. In addition, this instrument adopts touch screen control, which can preset the homogenization curve, which greatly simplifies the use process and reduces the learning cost, which is very suitable for laboratory purchase.

Scope of application

The homogenizer can coat liquid or colloidal materials on silicon wafers, crystals, quartz, ceramics and other substrates to form thin films, which are mainly used in photoresist spin coating, biological culture medium production, sol-gel method to make polymer films and other fields.
