Chengyue CY-CMR-300T-S laboratory lithium battery roll-to-roll heating coater vacuum heating 120 ℃

Continuously variable speed motor control film speed, Vacuum chuck sample stage to ensure smooth operation, bottom heating 120 ℃ to achieve rapid drying, Spreader accuracy of 0.01mm.
Certificate
Contact
Details SPEC

ChengYue CY-CMR-300T-S Laboratory lithium battery roll-to-roll heating coaterSPEC

ChengYue CY-CMR-300T-S Laboratory lithium battery roll-to-roll heating coaterDetails

ChengYue CY-CMR-300T-S Laboratory lithium battery roll-to-roll heating coaterPacking list

SKU
NB048316
Power Supply
AC220V, 50Hz
Total Power
3500W
heating
Bottom hot air heating maximum temperature: 120 degrees temperature control Accuracy : +/- 1 ℃ drying area: length 1m, width 600mm
Film thickness Accuracy
0.01mm
Vacuum substrate
Material: Aluminum alloy substrate Size: 400mmW * 400mmL
vacuum pump
Mini vacuum pump
substrate radiance
520mm
Winding mechanism
The speed of the rewinding and unwinding device is adjustable from 100 to 400mm/min. The machine has feedback adjustment, which can automatically correct the speed. The width of the guide roller is 600mm. Tension control: max.50N Rewinding and unwinding diameter: max.φ 200mm Rewinding and unwinding Accuracy ： +/- 0.5mm
Weight
About 200Kg
CY-CMR-300T-S
Laboratory lithium battery roll-to-roll heating coater
Continuously variable speed motor control film speed, Vacuum chuck sample stage to ensure smooth operation, bottom heating 120 ℃ to achieve rapid drying, Spreader accuracy of 0.01mm.

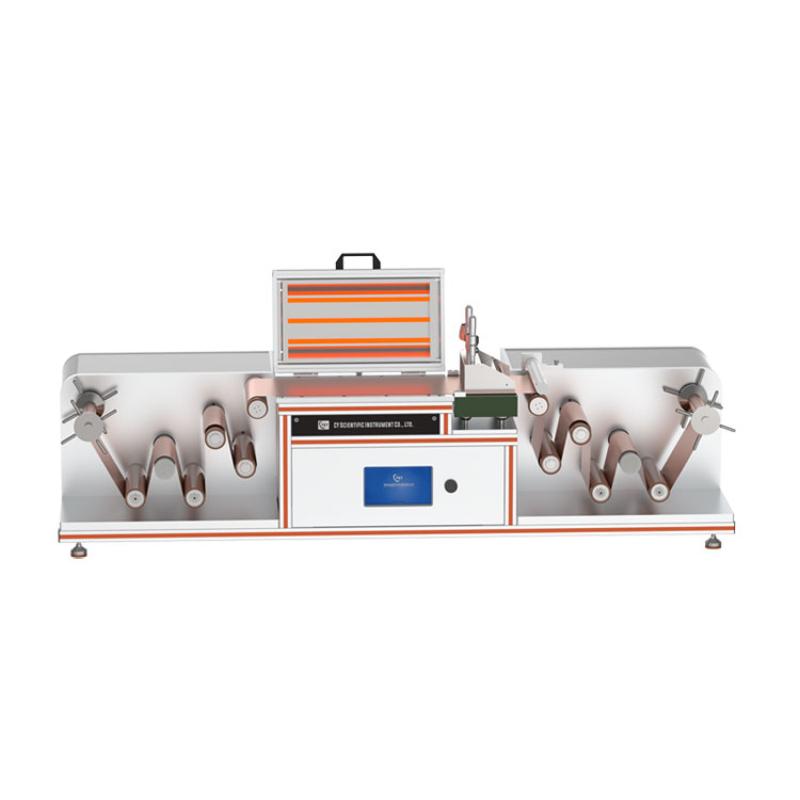

Chengyue CY-CMR-300T-S laboratory lithium battery roll-to-roll heating coater vacuum heating 120 ℃ Picture

The fully automatic winding coater is mainly used for laboratory coating of liquid or colloidal films. The equipment uses a stepless variable speed motor to control the coating speed, so as to achieve the purpose of making the sample move forward at a uniform speed and evenly coat the film. The squeegee blade is made of all stainless steel and has a constant weight to improve the consistency and uniformity of the coating film. The equipment adopts a sample stage with vacuum adsorption function, which can smoothly adsorb samples. At the same time, the coating machine has the function of bottom heating, the heating temperature can reach 120 °C, and the function of baking glue is realized in the process of coating the film, so that the film dries quickly and is convenient for the winding operation.

Features

1. This equipment adopts continuously variable speed motor, which can control the coating speed.

2. Adopt a debuggable scraper.

3. The drying system with intelligent vacuum heating suction plate and digital display temperature control at the bottom can adapt to the development of science and technology for film formation under high temperature conditions.
