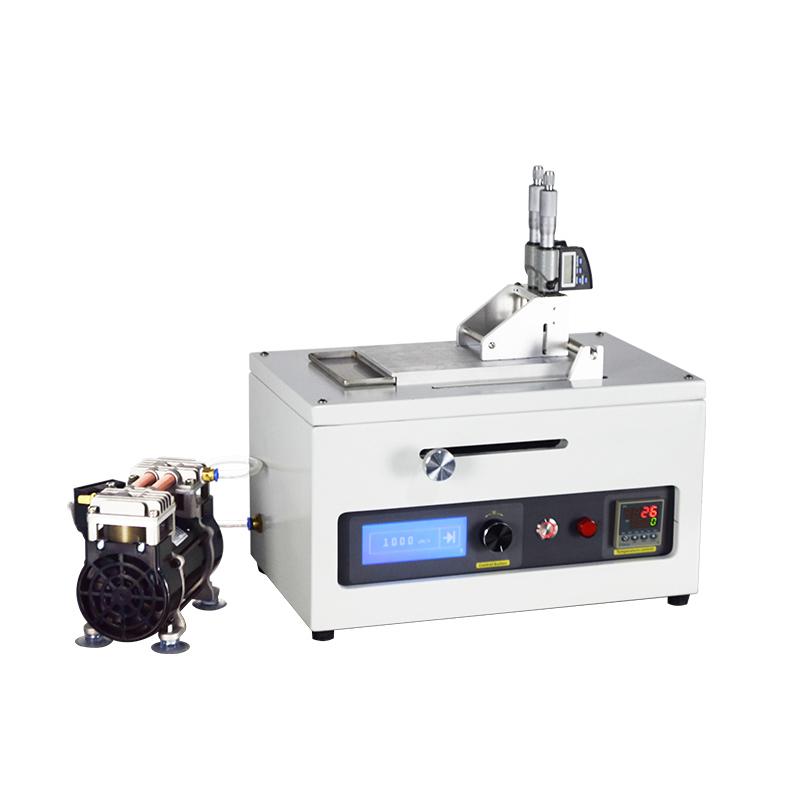

Chengyue CY-CMF-300 × 240B Lithium battery diaphragm coater slot-die extrusion Spreader

Continuous + Intermittent Coating method, slot-die extrusion film, with a 0.8-meter oven, touch screen operation, roll surface design width 300mm.
Certificate
Contact
Details SPEC

ChengYue CY-CMF-300×240B Lithium battery separator coaterSPEC

ChengYue CY-CMF-300×240B Lithium battery separator coaterDetails

ChengYue CY-CMF-300×240B Lithium battery separator coaterPacking list

SKU
NB048355
fit system
Ternary, lithium iron phosphoric acid, lithium cobaltate, lithium manganate, graphite, silicon carbon and other systems of batteries positive and cathode sheet Spreader process
Coating method
Continuous Spreader, Intermittent Spreader
Film thickness of running substrate
Aluminum foil (Al): 8~ 30um; Copper foil (Cu): 6~ 30um
Roller surface design width
300 mm
Guaranteed Spreader Width
Within 240mm
main roller
Φ150mm
Spreader Accuracy
±1.5um
Suitable slurry viscosity
2000~12000 (mPas)
Film thickness range of single top coating
10-250μm
Solvent characteristics
Oily solvent NMP (s.g = 1.033, b.p = 204 ℃); aqueous solvent H2O/NMP (s.g = 1.000, b.p = 100 ℃)
Solid content range
20~85%
Spreader dimensional Accuracy
L≤±1mm、W≤±0.4mm
Front and back alignment Accuracy
L≤±1mm、W≤±0.4mm
CY-CMF-300×240B
Lithium battery separator coater
Continuous + Intermittent Coating method, slot-die extrusion film, with a 0.8-meter oven, touch screen operation, roll surface design width 300mm.

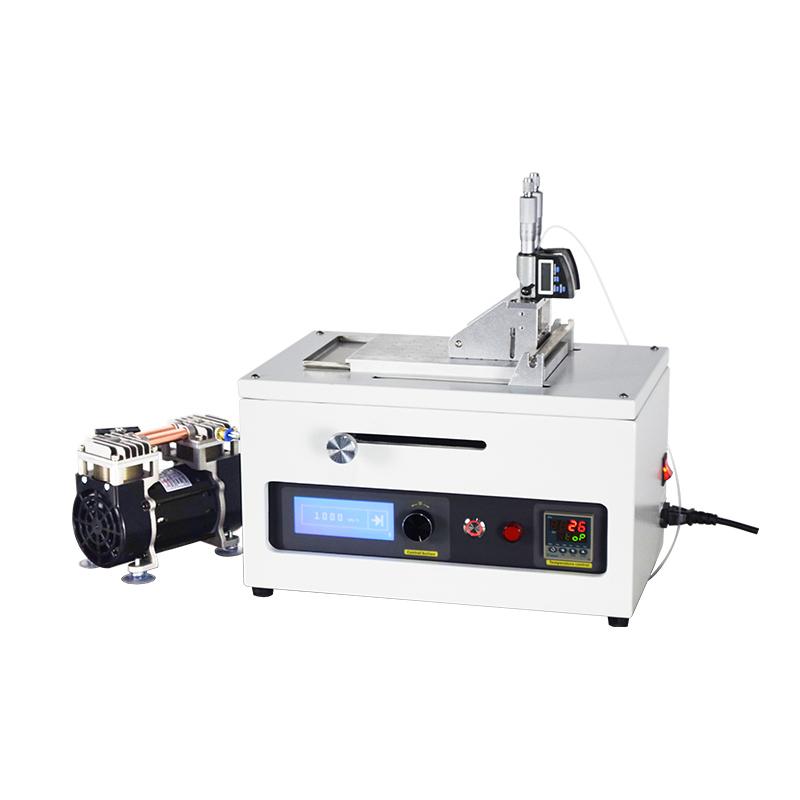

Chengyue CY-CMF-300 × 240B Lithium battery diaphragm coater slot-die extrusion Spreader Picture

Details

Lithium battery separator coater for continuous and intermittent coating and other types of coating requirements. The equipment has high coating precision, good consistency and stability, and is widely used in lithium-ion batteries, graphene films, optical films, ceramic films, tapes and various functional film industries.

Lithium battery separator coating machine features

*It can realize continuous, intermittent and other shapes of coating;

*Slit extrusion coating method, high coating accuracy, good coating consistency;

* Substrate tension control, stable belt bearing, equipped with deviation correction device;

* Hot Air Oven, blowing on both sides and down, drying effect is excellent;

* PLC control, touch screen operation, convenient and easy to use.
