LINSHANG LS155 color difference haze meter, can compare haze, light transmitter, color difference and other parameters

LS155

Color difference haze meter

Can compare haze, light transmitance, color difference and other parameters, while supporting ASTM and ISO standard 7 inch large touch screen, simple operation, dual aperture design, small size material can also be measured and repeability is good, can be Measurement

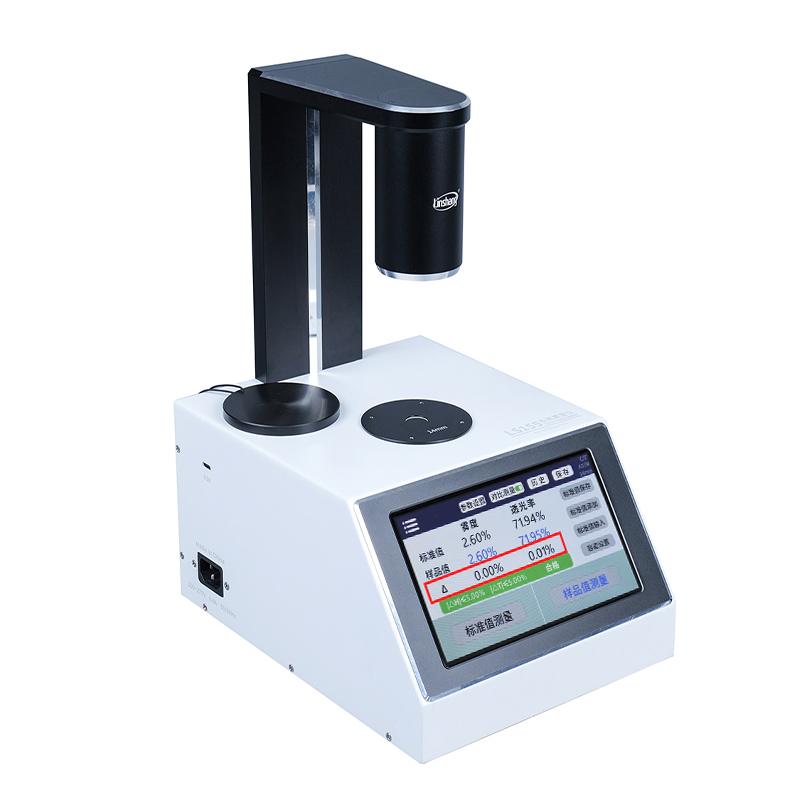

LS155 chromatic aberration haze meter is designed with full-spectrum LED light source and spectral sensor, which is used to measure multiple parameters such as haze, light transmittance, chromatic aberration, clarity, turbidity, platinum and cobalt chromaticity of various transparent and translucent materials such as plastics, glass, films, etc., and can display the transmittance spectral curve. The instrument is designed with a 7-inch touch screen, which is simple and convenient to operate. The LS155 color haze meter adopts an open measurement area, with two measurement states, horizontal and vertical, which can detect liquids and large-sized materials. The LS155 color aberration haze meter also adopts 14mm and 5mm dual aperture design, which can also measure small size materials, and the instrument is equipped with PC software to support data export and report printing.

Core features:

• Both ASTM and ISO standards are supported

  It can support both ASTM and ISO standards to meet the test standard requirements of different users, and also supports ISO standards without compensating ports.

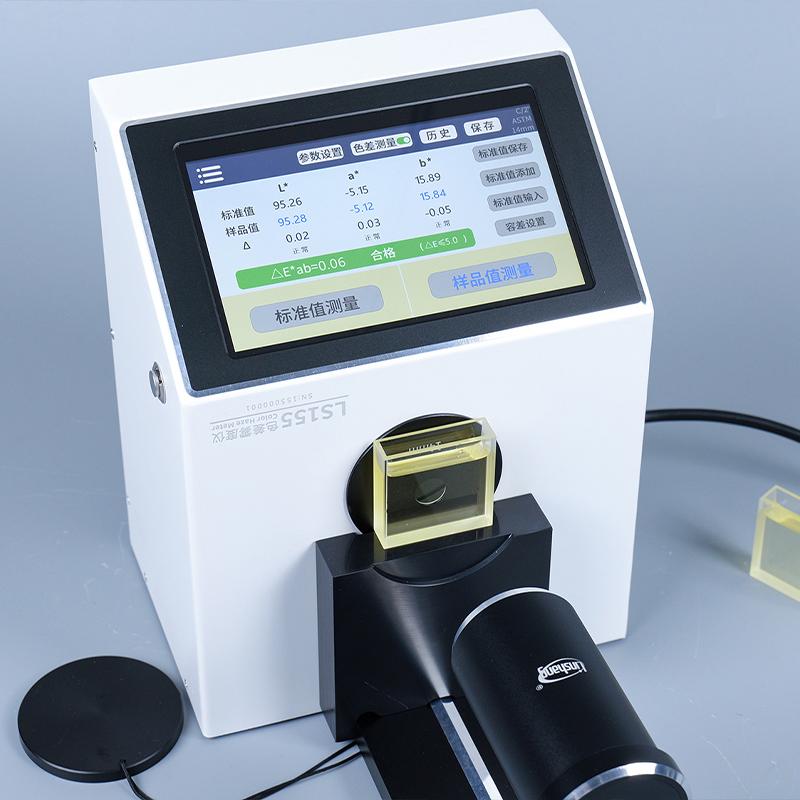

• It can measure color aberration, haze, transmittance, clarity, and display the transmittance spectrum curve

  The instrument can measure the haze, transmittance, chromatic aberration, clarity and other parameters of various transparent and translucent materials such as plastics, glass, films, etc., and can display the spectral curve of light transmittance.

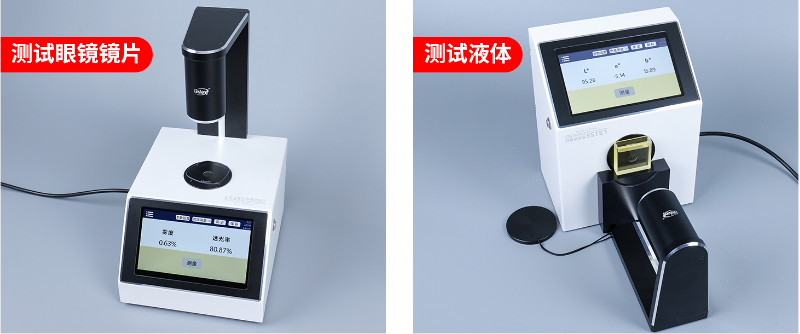

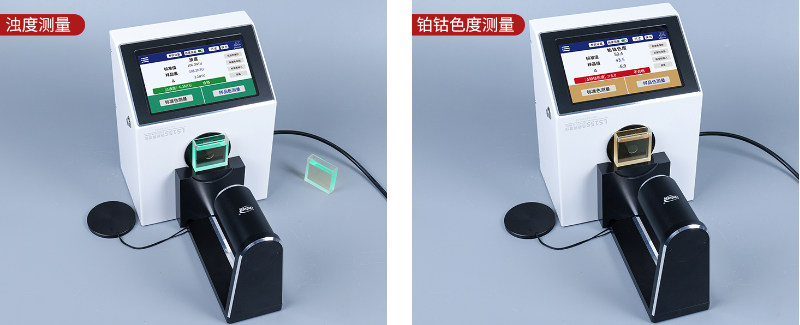

• Liquid turbidity, platinum cobalt color measurement

  The instrument can quickly detect the turbidity and platinum and cobalt chromaticity of liquid samples, and assist in judging the purity and visual quality of liquids.

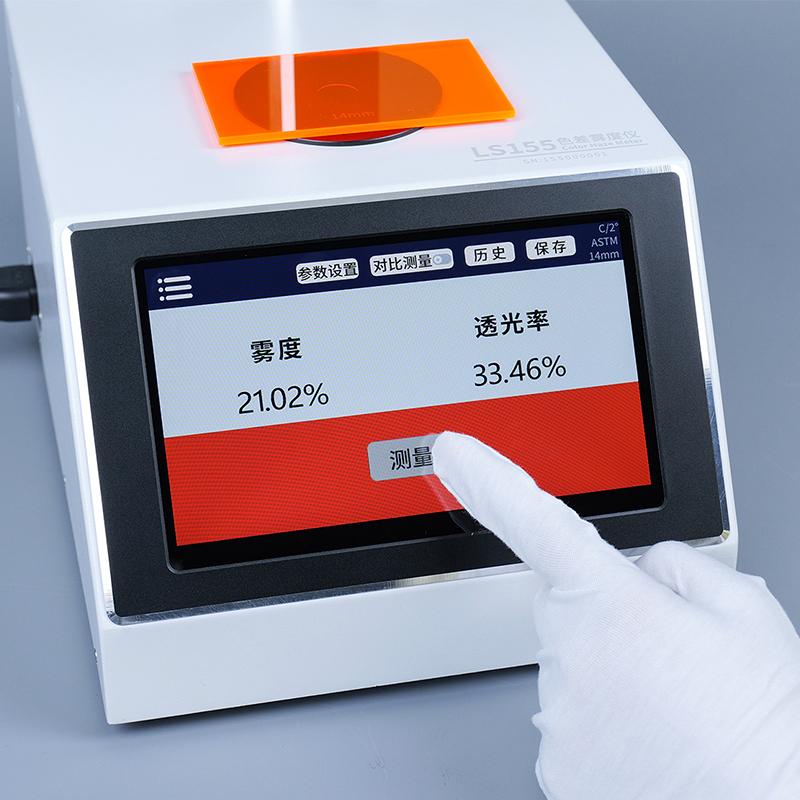

• Large 7-inch touch screen

  It adopts 7-inch IPS smart screen, which does not need to be operated by buttons, has a good human-computer interaction interface, and is very convenient to operate.

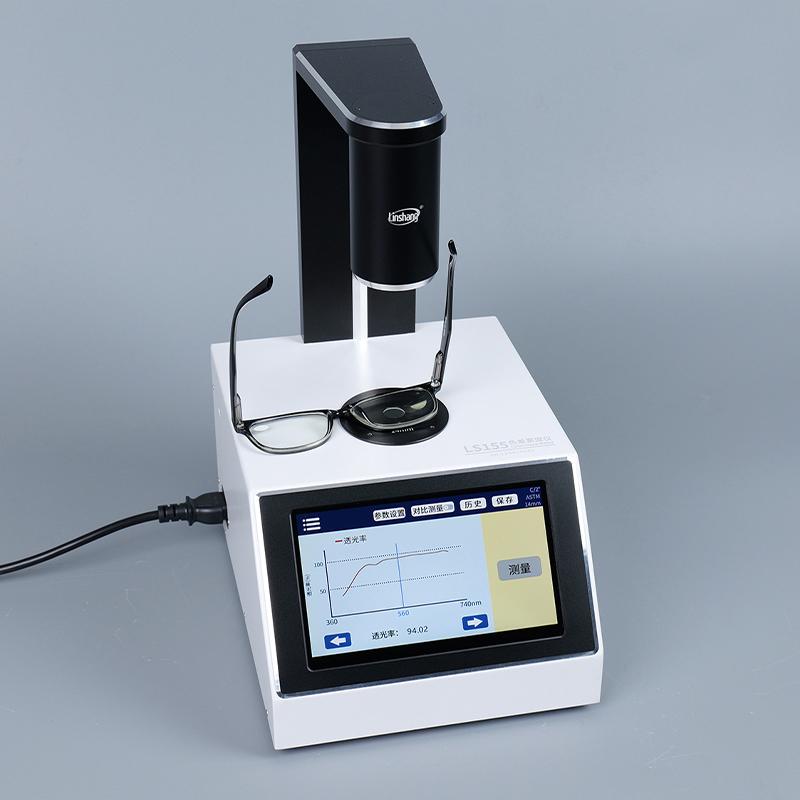

• Professional transmittance spectral curves

  The measurement results show the transmittance of the material in different wavelength bands between 400 and 700 nm. With this transmission data, various optical properties of the material can be evaluated.

• Good repeatability

  The repeatability of the instrument is good, the repeatability of haze ≤ 0.03, the repeatability of transmittance ≤ 0.03, and the repeatability of chromatic aberration ≤ 0.03.

• Ensure that it can be measured by the country

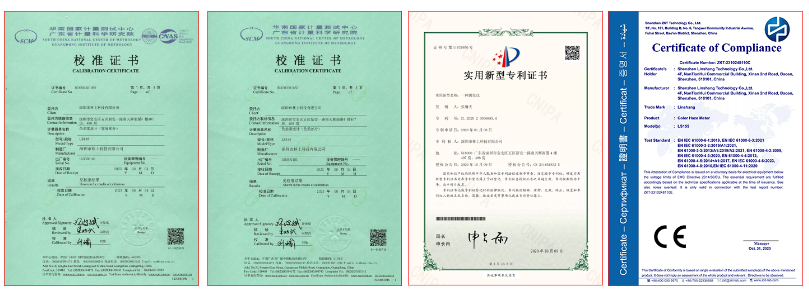

  The haze measurement and color difference measurement of the instrument ensure that it can be tested by the National Institute of Metrology.

• Dual-caliber design

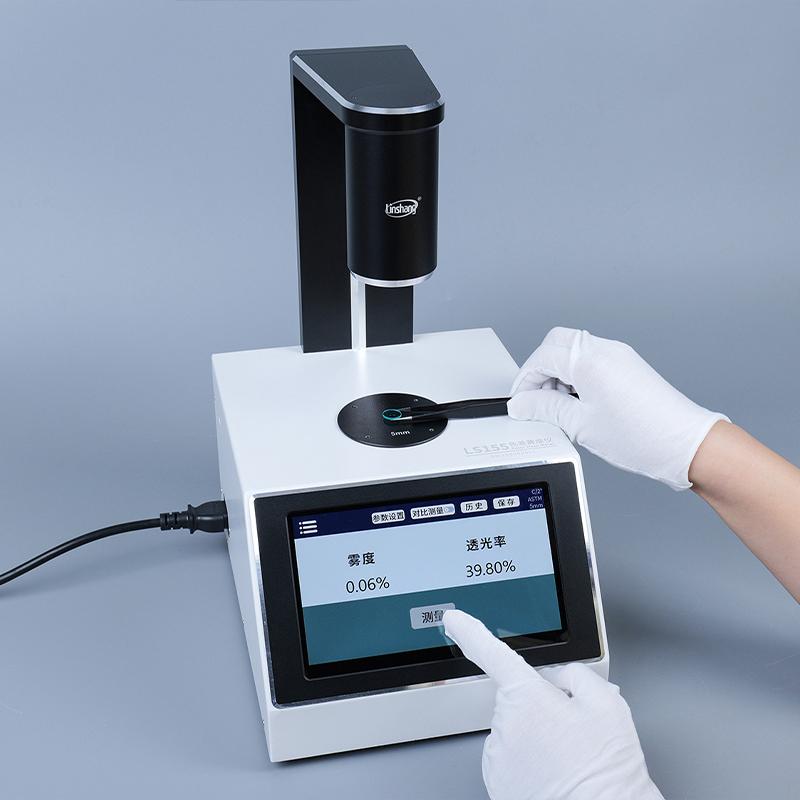

  The instrument is designed with 14mm and 5mm dual diameters, and the appropriate test aperture can be selected according to the size of the material to be measured.

• The spectral sensor cooperates with the fitting algorithm to make the measurement more accurate

  The instrument adopts a spectral sensor with a self-developed fitting algorithm scheme to replace the silicon photoDetector of the traditional haze meter, which has higher precision and more stable measurement.

• Aerospace aluminum parts, precision workmanship

  The core components are made of aviation aluminum, with high-precision CNC machining technology, so that the alignment between the light source and the receiver has micron-level accuracy, ensuring the repeatability and high precision of the instrument.

• Open measuring area

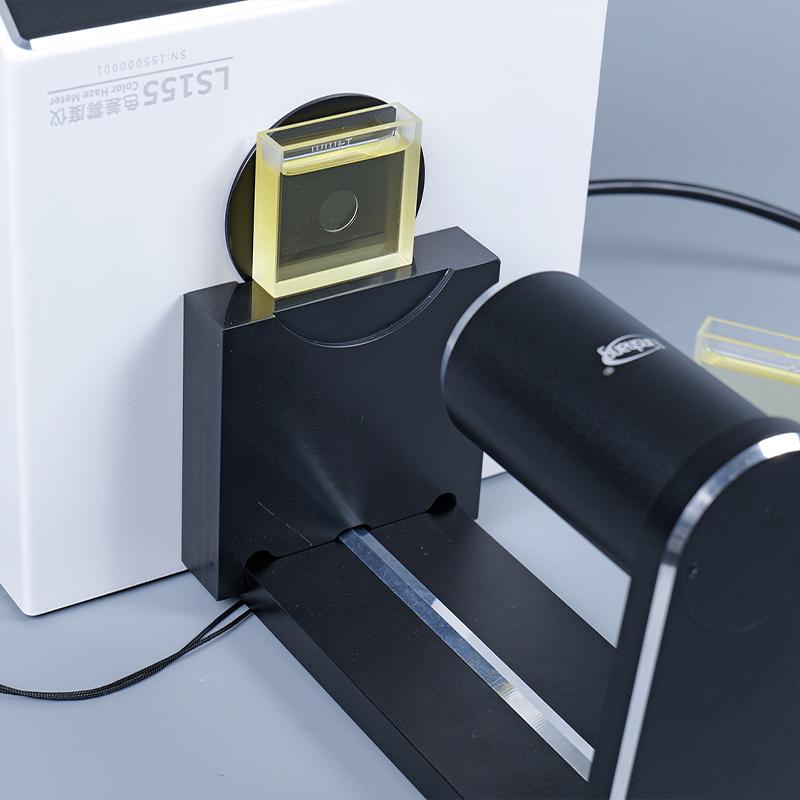

  The instrument has an open measurement area, with two measurement states, vertical and horizontal, and can be used with a positioning bracket when placed horizontally.

• Three standard lighting sources

  The instrument meets the haze, transmittance and chromatic aberration measurement under CIE-A, CIE-C, CIE-D65 three standard illumination sources.

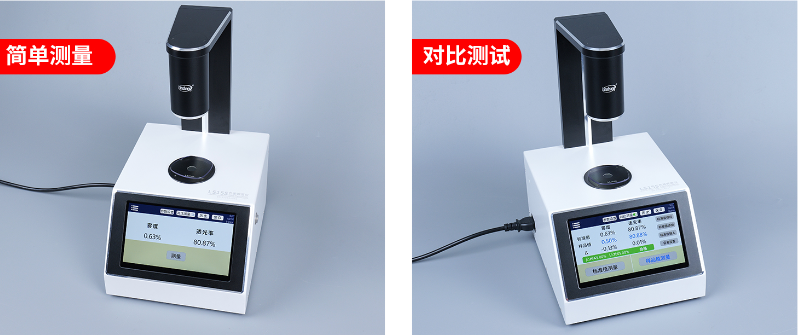

• Dual measurement mode

  Simple measurement and comparative measurement modes can be switched at will, and the operation is clear at a glance. You can automatically determine whether you are qualified or not by setting a tolerance value.

• Equipped with PC software

  The instrument is equipped with PC software, which can be connected through the USB interface, which can be used for online measurements, data export and test report printing.

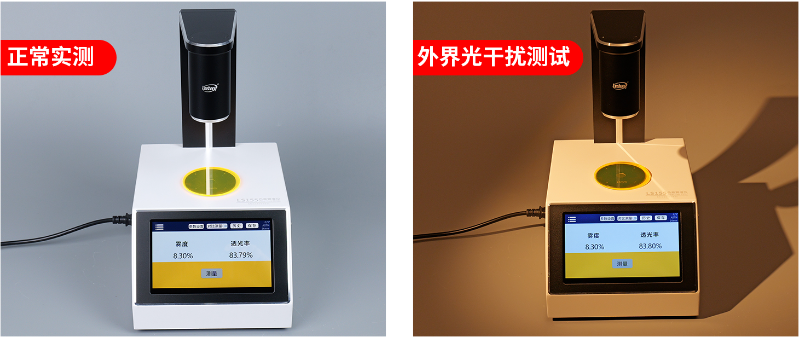

• Not disturbed by ambient light

  The instrument has a unique signal processing technology to ensure that the measurement results are not interfered with by external ambient light.

Meets standards

JJF 1303-2011 Specification for Calibration of Haze Meters

GBT 2410-2008 Determination of light transmittance and haze of transparent plastics

GBT 36142-2018 Methods for measuring the color and color difference of architectural glass

JJG 595-2002 V.R. for Colorimeter Verification

GBT 3978-2008 Standard Illuminator and Geometric Conditions

GBT 7921-2008 Uniform color space and color aberration formulas

Packing list：host X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
