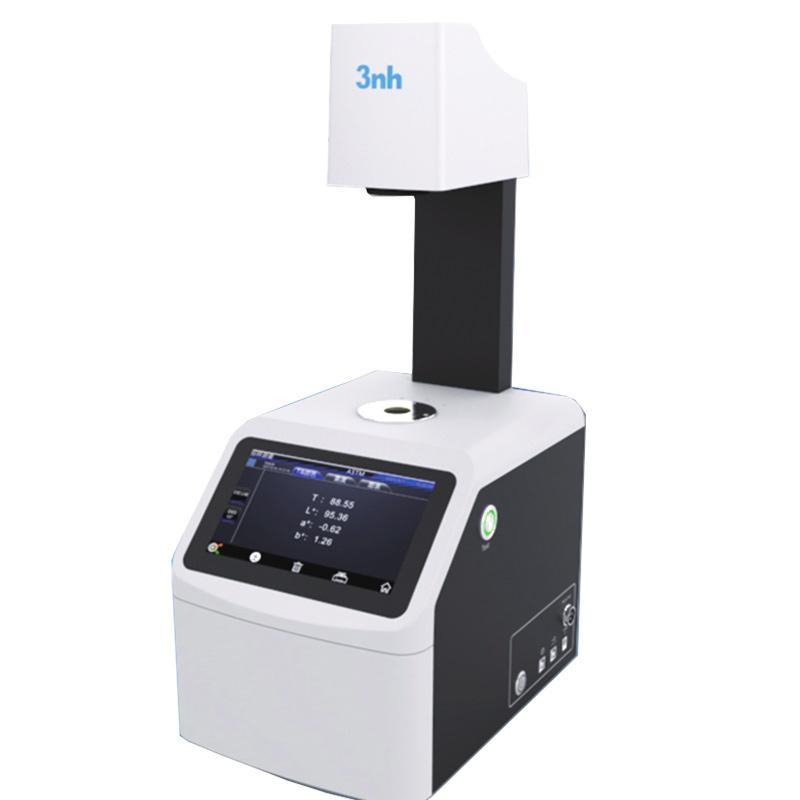

3NH YH600 haze meter, haze light transmitance Tester
YH600
3NH YH600 haze meterSPEC
3NH YH600 haze meterDetails
3NH YH600 haze meterPacking list
- SKU
- NB048581
- Lighting method
- Transmission: 0/D (parallel light illumination, diffuse reflection reception)
- Meet the standard
- ASTM D1003/1044,IS0 14782,GB/T 2410,JJF 1303-2011,CIE 15.2,JIS K7105,JIS K7361,JIS K7136
- Integrating sphere size
- Ф154mm
- Light source
- 400-700Nm Combined LED Light source
- Sensor
- PD Array Detector with CIE V (lambda) 2 Degree Visual Response
- Transmittance range
- 0-100%
- Measurement aperture
- Should 20mm/should 15mm/should 8mm/should 4mm (select single diameter)
- Sample size
- Thickness less than 170mm
- Observer Angle
- 2°
- Observational Light source
- D65,A,C
- show
- Pass/fail results
- Measurement time
- About 1.5s
- Haze resolution
- 0.1 unit
- Haze Repeatability
- 20 mm diameter, less than 0.15 (after the instrument is preheated and corrected, the standard haze sheet with a haze of about 30 is tested 30 times at an interval of 5 seconds)
- stand-alone difference
- 20 mm diameter, less than 0.5 (after the instrument is preheated and corrected, the standard deviation between the standard haze film and the reference value is tested at an interval of 5 s)
- size
- Length X width X height = 290X211X511mm
- Weight
- About 4.0kg
- Power Supply
- DC 24V, 3A power adapter Power Supply
- Light source lifetime
- More than 3 million measurements in 5 years
- Display
- TFT true color 7inch, capacitive touch screen
- interface
- USB, print serial port
- Store data
- 1000 master standards, 10000 samples
- language
- Simplified Chinese, Traditional Chinese, English
- Temperature range
- 0-40°C(32-104°F)
- Temperature range
- -20-50°C(-4-122°F)
Introduction
YH600 haze meter can easily implement ASTM D1003 non-compensated method,Full transmittance and haze test, open sample bin can be erected and horizontalTest, adapt to more samples being tested. YH600 haze meter adopts PDArray Detector that meets the CIE V (in) 2 degree visual response can achieve highAccurate and repeatable light transmittance and haze data measurements.
Features
Complies with ASTM standards
It can meet the requirements of different users' test standards, in line with the standards: ASTMD1003/1044, GB/T 2410, JJF1303-2011, CIE15.2, JISK7105, JIS K7361, JIS K71367

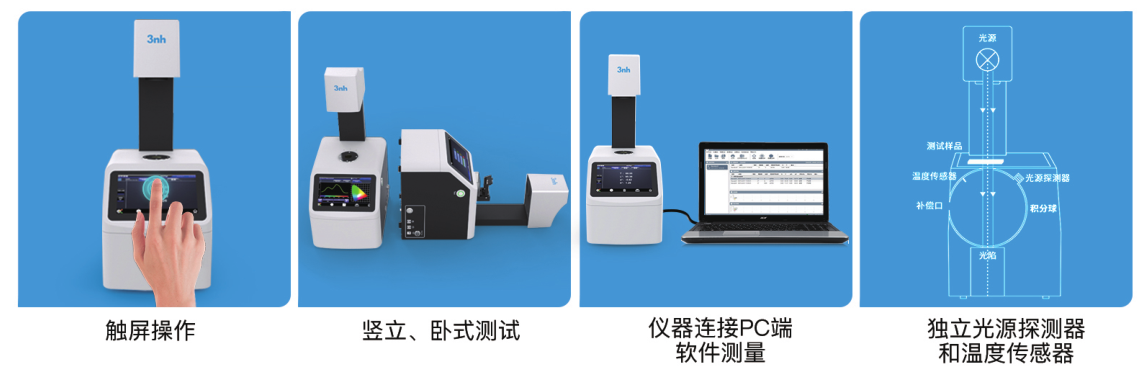

Easy to operate, faster to measure
Equipped with a large-size touch operation screen, the operation is simple and convenient, and the PD array Detector is used to meet the CIE V (in) 2 degree visual response, which can achieve high-precision and repeatable transmittance and haze measurement. USB data inputThe device can be docked with the laboratory system
Dynamic measurements
Stand-alone light source Detectors and temperature sensors monitor light source and environmental changes at all times to ensure reliable test data.
Quality management software
It provides powerful haze and transmittance measurement and analysis software, which is suitable for quality monitoring and tabular management of haze and transmittance data in various industries. The user's management is digitized on the PC computer, the difference between haze and light transmittance is compared, and the test report form is generated to facilitate customer customization and management.
It is convenient to measure and the sample is widely adaptable
Open measurement area, can be tested upright and horizontally, suitable for more samples to be measured
Application
It is widely used in glass processing, plastic processing, film, display processing, packaging industry and other industries in transmittance and haze detection.
