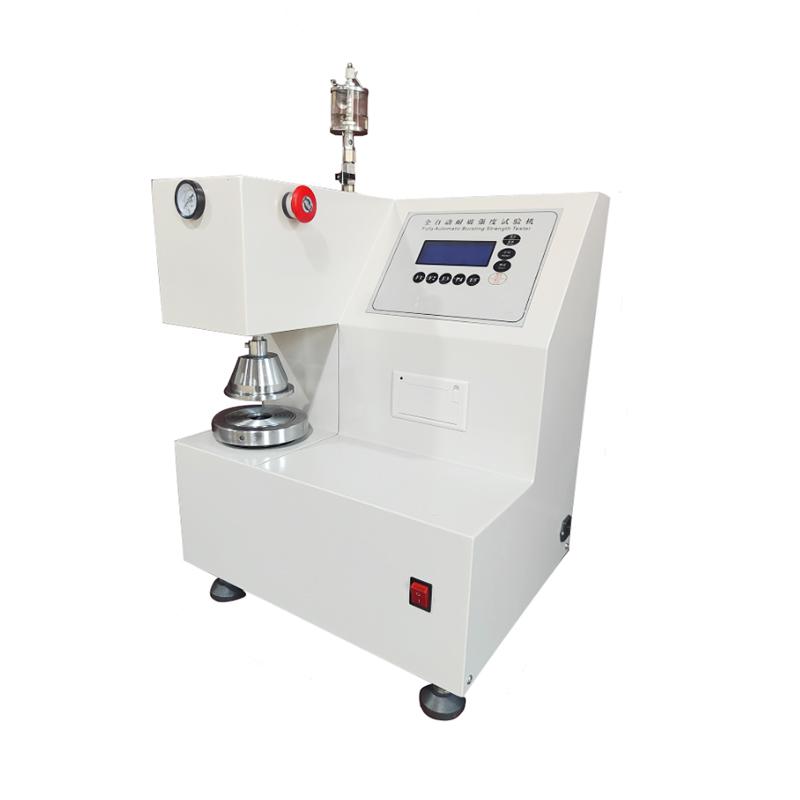

Patek Jushi LY-8502 Cardboard Automatic Burst Strength Tester
SE
LY-8502
-
Yunda YD-NPY1 Automatic Burst Strength Tester ≤ 1200kPa$ 1237.00SE -
CHINA NBC-8502B automatic breaking Strength Tester, touch screen breaking machine$ 1061.00SE -
CHINA NBC-8502 Automatic Breaking Strength Tester$ 968.00SE -
CHINA BLD-608B Automatic Burst Strength Testing Machine$ 949.00SE -
Taichang TC-NPD5600Q Pneumatic Cardboard Burst Tester 250kPa~ 5600kPa$ 1311.00SE
BaiDaJuShi LY-8502 Automatic bursting Strength TesterSPEC
BaiDaJuShi LY-8502 Automatic bursting Strength TesterDetails
BaiDaJuShi LY-8502 Automatic bursting Strength TesterPacking list
- SKU
- NB048598
- Measurement range
- 250～6000kPa
- Clamping Force
- > 690Kpa (adjustable)
- induction method
- pressure converter
- savings outcome
- With printing function, it can print 10 sets of data to automatically calculate the average value
- Display mode
- High definition LCD display, digital A/D value progress rate 100 times/S, Test Accuracy
- Force Unit
- KGF/cm2, Lb/in2, Kpa (with Unit switching function)
- resolution
- 1kPa
- Measurement error of indication
- Better than +/- 1% FS
- Variability of measurement indication
- Better than +/- 1%
- hydraulic speed
- High Voltage 170 +/- 10ml/min
- Film resistance
- Raise 10mm, 170kPa~ 220kPa; Raise 18mm, 250kPa~ 350kPa
- Clamp ring material
- stainless steel
- Upper chuck diameter
- 93mm
- Lower chuck diameter
- 130mm
- Hydraulic oil
- silicone oil
- Volume
- 445*510*365mm
- Weight
- About 50KG
- Power Supply
- 1∮,AC220V
- Standard configuration
- 5 pieces of rubber film, 1 wrench, 10 correction pieces, and 1 bottle of silicone oil.
Product introduction
In line with relevant standards, pneumatic clamping specimens are used, and liquid crystal display is used for the determination of bursting resistance of cardboard, corrugated cardboard and other sheet-like plates.
Adopt the standard
ISO 2759: Determination of bursting resistance of paperboard;
GB/T 1539: Determination of bursting resistance of paperboard;
QB/T 1057: Paper and cardboard bursting meter.
Product features
1. After the cardboard is crushed, it automatically stops and returns to its original position.
2. Fully automatic one-click operation;
3. It can store 50 sets of data simultaneously.
4. With micro-printing, test results can be printed.
5. Equipped with an emergency stop button to enhance operation safety.
6. Equipped with an air pressure gauge to monitor pressure at any time.
7, high definition LCD display.
8. Change the traditional approach of glycerin + water to silicone oil, which makes the machine less susceptible to rust and prolongs its lifespan.

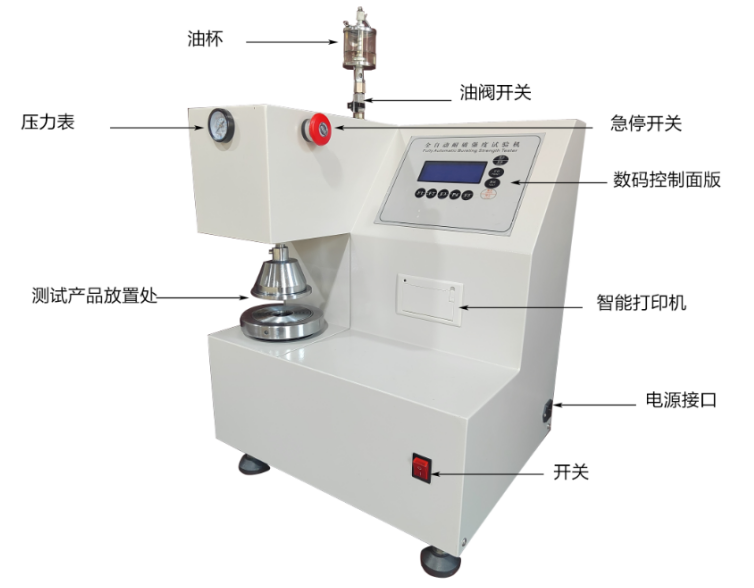

product structure diagram
