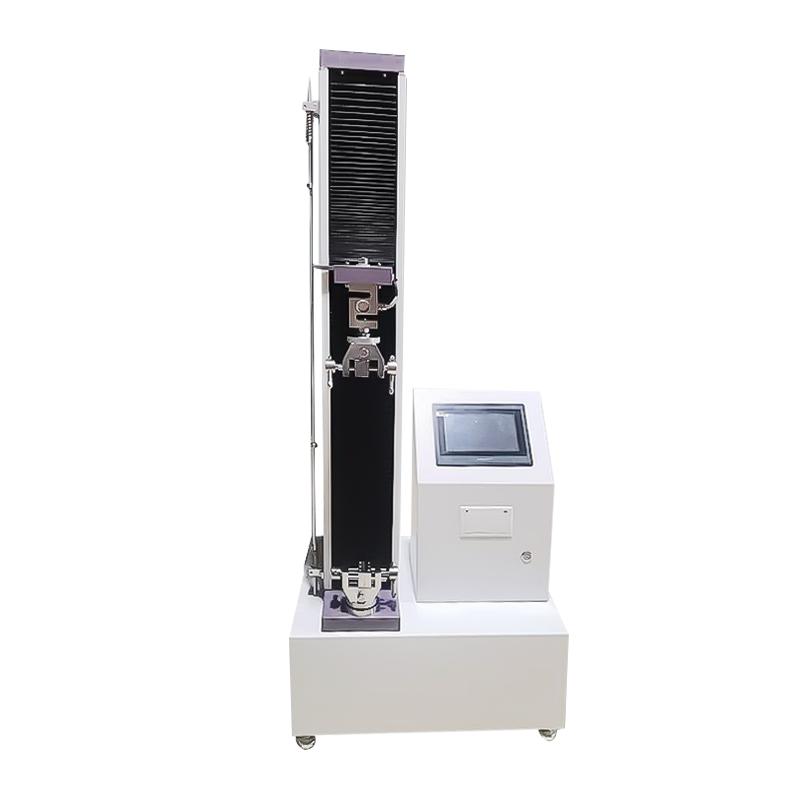

BaidaJUSHI LY-7012A Tensile Tester 50KG
SEMeasurement accuracy +/- 0.1N, built-in micro printer, resolution 1/200000, used for static load, tensile, compression, bending, shearing, tearing, disbonding and other mechanical properties test.
$1011.00/set
PromotionLoading...
Coupon
Model：
LY-7012A 50KG
Similar products
-
HBO ZT-500 touch screen electric spring tension and compression testing machine, range 500N$ 2034.00SE -
HBO ZTD-500 Desktop Spring Special Testing Machine, Range 500N$ 3243.00SE -
Haibao ZY-500 Desktop Electronic Universal Testing Machine, Range 500N/50Kg$ 1847.00SE -
Haibao ZYD-500 desktop microcomputer-controlled universal testing machine, range 500N/50Kg$ 2778.00SE -
CHINA NBC-1001B Desktop Tensile Tester Electric tensile machine$ 602.00SE
BaiDaJuShi LY-7012A 50KG Tensile TesterSPEC
BaiDaJuShi LY-7012A 50KG Tensile TesterDetails
BaiDaJuShi LY-7012A 50KG Tensile TesterPacking list
- SKU
- NB048600
- Measurement range
- 50kg
- Force Precision
- ±0.1N
- force resolution
- 1/200000
- Test speed
- 0~500mm/min
- effective travel
- 700mm
- Test space
- 100mm
- Force Unit
- kgf、gf、N、kN、lbf
- stress unit
- MPa、kPa、kgf/cm2、lbf/in2
- shutdown mode
- Upper and lower limit safety setting, specimen breakpoint sensing
- result output
- micro printer
- power
- Speed regulating motor
- optional
- Tension fixture (conventional)
- Machine Weight
- 80kg
- Power Supply
- 1PH、AC220V、50/60Hz
LY-7012A 50KG
Tensile Tester
Measurement accuracy +/- 0.1N, built-in micro printer, resolution 1/200000, used for static load, tensile, compression, bending, shearing, tearing, disbonding and other mechanical properties test.
Product use
Tensile testing machine is also known as universal material testing machine. Universal testing machine is used for static load, tensile, compression, bending, shearing, tearing, peeling and other mechanical properties testing of various materials. It is suitable for various physical and mechanical properties testing of plastic sheets, pipes, profiles, plastic films and rubber, wire and cable, steel, glass fiber and other materials. It is developed for materials, and is a special testing equipment for physical properties testing, teaching and research, quality control and other special testing equipment.
FAQ
QWant to experiment with smaller rock samples, which Small Universal Testing Machine is suitable?
A
Available Single Column Universal Testing Machine with three point bending fixture.
