ANGNI AM800 Electronic Constant Speed Stirrer

SE
The advantages of strong low-speed torque output, low noise and maintenance-free, the stirring Rotation speed is precisely controlled by the microprocessor, the built-in automatic overload protection, the equipment supports digital display and stepless speed regulation.
$2371.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con

AN AM800 Electronic Constant Speed StirrerSPEC

AN AM800 Electronic Constant Speed StirrerDetails

AN AM800 Electronic Constant Speed StirrerPacking list

SKU
NB048635
Rated Voltage
AC220V
Rated Frequency
50/60Hz
drive type
DC servo motor
Input Power
1100 W
output power
800 W
Rated torque
355 N·cm
Duty Cycle
S1 (continuous)
Control mode
Knob control mode
Rotation speed adjustment range
200~2000rpm
Rotation speed control type
stepless
Rotation speed digital display
LED
Overload protection function
Yes
Stirringrod fixing method
Quick turn chuck
Rotary collet clamping range
Ф3~16mm
Impeller configuration
Dissolved Impeller
Processing Capacity (H2O)
120 L
processing viscosity
100000 mPa.s
Environmental temperature
Not more than 40 ° C
Allowable Relative Humidity
Not more than 80%
Column lifting stroke
500mm
Dimensions of the whole machine
800x710x1235mm
Machine Weight
35 kg
AM800
Electronic Constant Speed Stirrer
The advantages of strong low-speed torque output, low noise and maintenance-free, the stirring Rotation speed is precisely controlled by the microprocessor, the built-in automatic overload protection, the equipment supports digital display and stepless speed regulation.

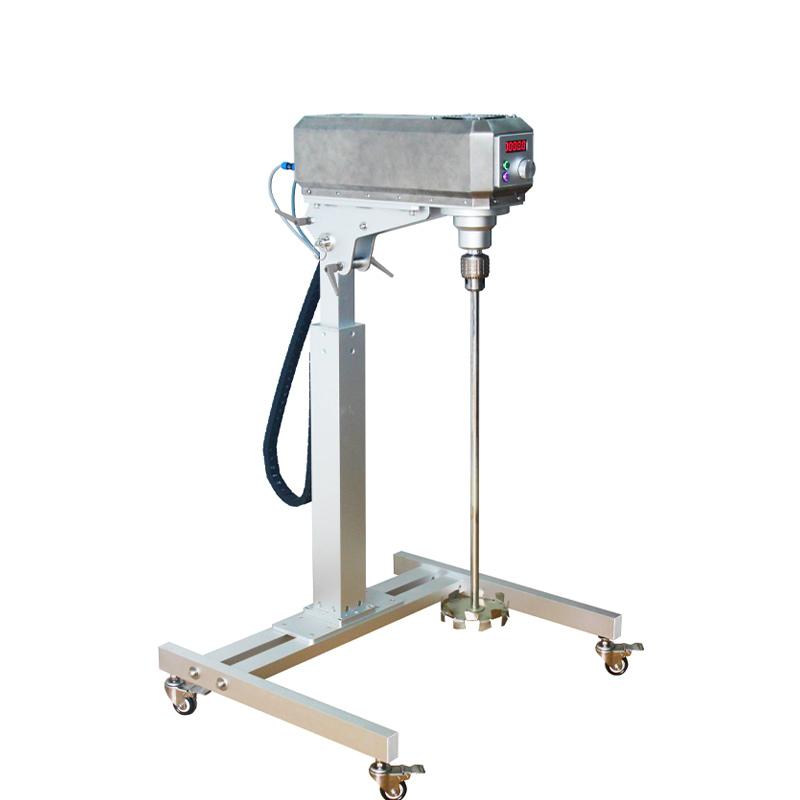

ANGNI AM800 Electronic Constant Speed Stirrer Picture

Overview

 The AM 800 high-power constant-speed mixer is driven by a brushless DC servo motor and is suitable for pilot mixing of low- to medium-viscosity liquids in the laboratory. The machine has low-speed operation super torque output, low noise, maintenance-free, stirring speed controlled by microprocessor, can immediately and effectively compensate for the speed change caused by load changes and power supply Voltage fluctuations, constant speed is reliable. Built-in automatic overload protection device to ensure the safety of long-term and high-load continuous operation of the experiment; It makes the experimental operation more convenient and satisfies the adjustment of the stirring speed at any time in the experiment; The digital display of the actual output mixing speed ensures the intuitive collection of experimental data. Stable stirring speed, competent for the mixing of high-viscosity media and slurry.

use

It is widely used in teaching, scientific research and production in the fields of laboratory, biology, medicine, physics, molecular science, clinical new materials, new energy, food, cosmetics and other fields

peculiarity

Digital display, Timer Control, automatic lifting

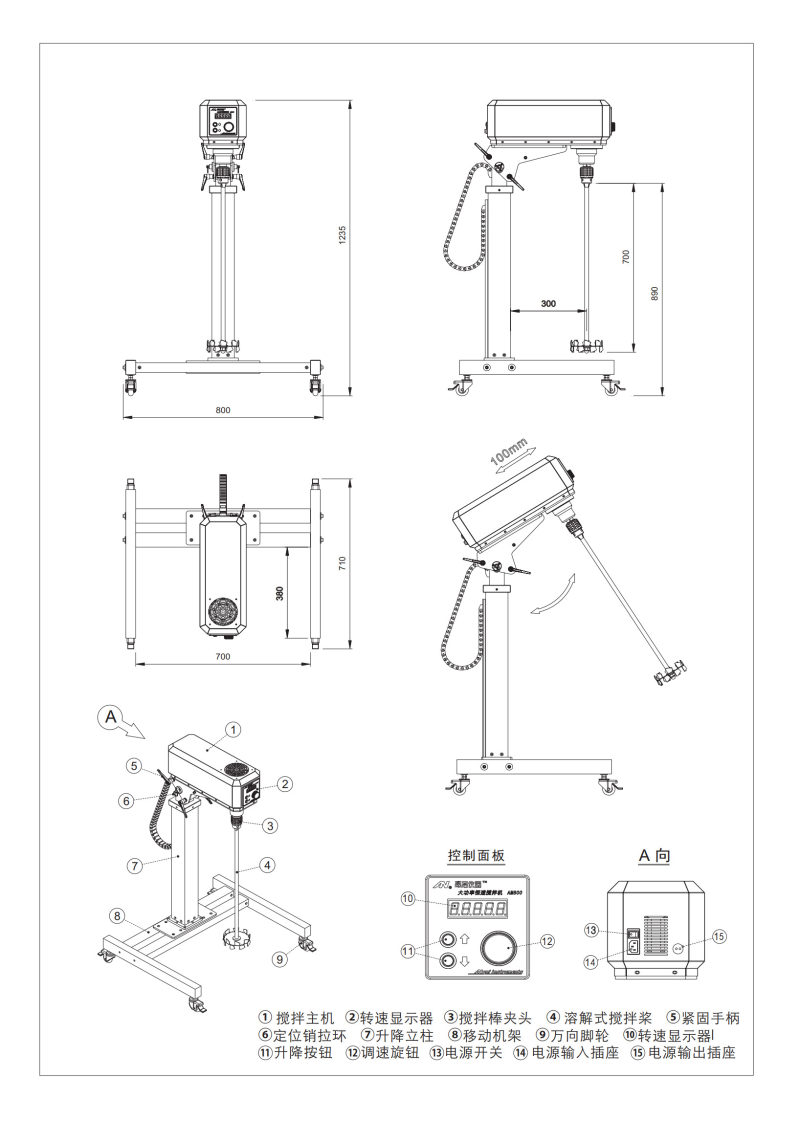

Anne AM800 Electronic Constant Speed Mixer Details Figure 1

FAQ
QWe need to stir a high viscosity slurry in our lab, the viscosity is about 100,000 mPa seconds. Is there any suitable Stirrer recommendation?
A Recommended ANGNI AM800 electronic constant speed Stirrer, specially designed for medium and high viscosity liquids, can handle the maximum viscosity of 100,000 mPa seconds, and strong torque at low speed, can stably stir slurry media.
QNew material research and development, need a long time continuous stirring, but also can adjust the Rotation speed at any time, choose which instrument is good?
A Recommended ANGNI AM800, it uses DC servo motor, can automatically compensate for load changes to maintain constant speed, but also with overload protection, support continuous operation; knob stepless speed regulation, digital display Rotation speed, easy to correct parameters at any time.
QOur laboratory needs to stir high viscosity slurry. Is there a suitable Electronic Constant Speed Stirrer recommended?
A Recommended ANGNI AM800 electronic constant speed Stirrer, it uses DC servo motor, output torque up to 355N · cm, can stably handle the viscosity of 100000mPa.s medium, suitable for high viscosity slurry mixing, and Rotation speed constant speed control, automatic compensation when the load changes, to ensure accurate experimental data.
