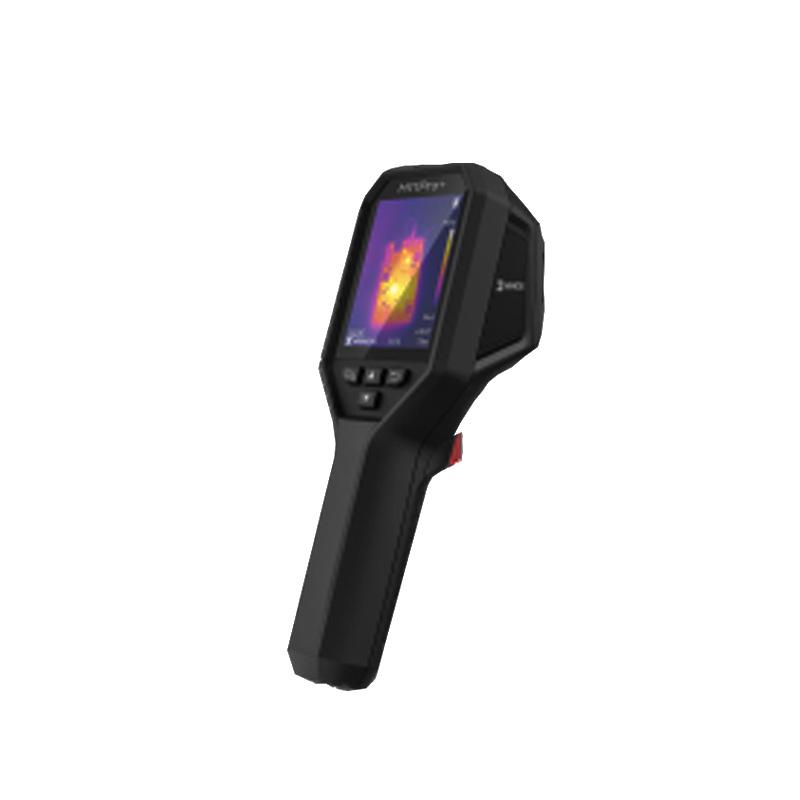

HIKMICRO HM-TP52 + -3AQF/W-H11PRO + Handheld Thermal Imager
HM-TPH11-3AXF replacement, high-performance thermal imagery function, support ISR super resolution technology, 3D noise reduction and image detail enhancement, support temperature abnormal alarm, center point and maximum/minimum temperature monitoring, wide temperature measurement range (-20 ℃~ 550 ℃).
Model：
Handheld Thermal Imager
HIKMICRO
HIKMICRO Handheld Thermal Imager HM-TP52+-3AQF/W-H11PRO+SPEC
HIKMICRO Handheld Thermal Imager HM-TP52+-3AQF/W-H11PRO+Details
HIKMICRO Handheld Thermal Imager HM-TP52+-3AQF/W-H11PRO+Packing list
- SKU
- NB048848
- Adapter output
- Output Voltage: 5 V, maximum output current: 2 A
- Operating temperature and Humidity
- -10 ℃~50 ℃， ≤95%
- Storage Temperature and Humidity
- -20 ℃~60 ℃， ≤95%
- Temperature Measurement Range
- -20 ℃～550 ℃
- Temperature measurement Accuracy
- +/- 2 ° C or +/- 2% of the reading (MAX Maximum)
- Protection level
- IP54
- anti-drop grade
- 2m
- Weight
- 380 g (with battery)
- size
- 221.7 mm × 73.5 mm × 123.8 mm
- Hardware Interface
- Type-C
- Electromagnetic Compatibility (EMC)
- GB/T17799.2，GB 17799.3-2012
- Response band
- 7.5~14μm
- NETD (Noise Equivalent Temperature Difference)
- < 50 mk(@25 °C, F#=1.0)
- Thermal imagery field of view
- 27.8°×37.2°
- Temperature measurement unit
- Celsius, Fahrenheit, Kelvin
- Distance coefficient ratio
- 60
- Infrared Detector resolution
- 192×144
- Infrared image resolution
- 640×480
- Thermal imagery lens focal length
- 3.6mm
- ISR super resolution
- 384×288
- visible light
- support
- Image resolution
- 1600×1200
- Battery type
- Rechargeable Li-ion battery, 3350 mA * h, Rated Voltage: 3.6 V
Handheld Thermal Imager
HM-TP52+-3AQF/W-H11PRO+
HM-TPH11-3AXF replacement, high-performance thermal imagery function, support ISR super resolution technology, 3D noise reduction and image detail enhancement, support temperature abnormal alarm, center point and maximum/minimum temperature monitoring, wide temperature measurement range (-20 ℃~ 550 ℃).
Thermal image
Native resolution: 192×144, 3.2-inch LCD screen(480×640)
It supports ISR real-time super-resolution
Support timing, temperature difference shutter correction
Support 3D noise reduction function, image detail enhancement function
Support a variety of false color adjustable
Dual-light fusion: Supports thermal imaging and visible dual-light fusion
Abnormal temperature alarm function
Temperature measurement range: -20°C~550°C
Measurement accuracy: ±2°C or ±2% of reading (whichever is greater)
System features
The standby time > 6h, and it supports automatic shutdown and power-saving mode
The image stores full-screen temperature measurement information and supports offline temperature measurement and analysis (used with the client)
Support center point, highest temperature, minimum temperature measurement

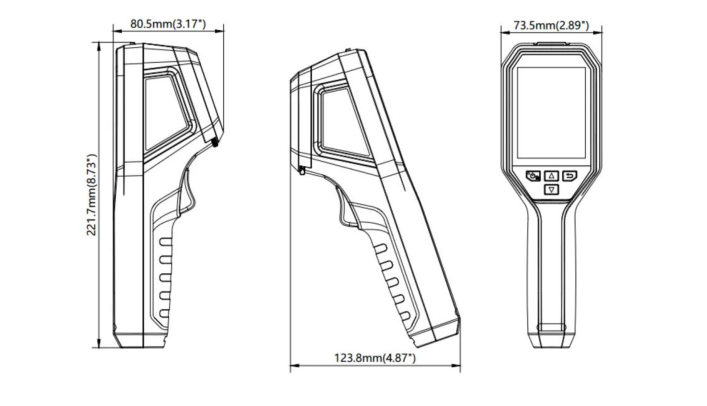

Product Dimension Drawing
