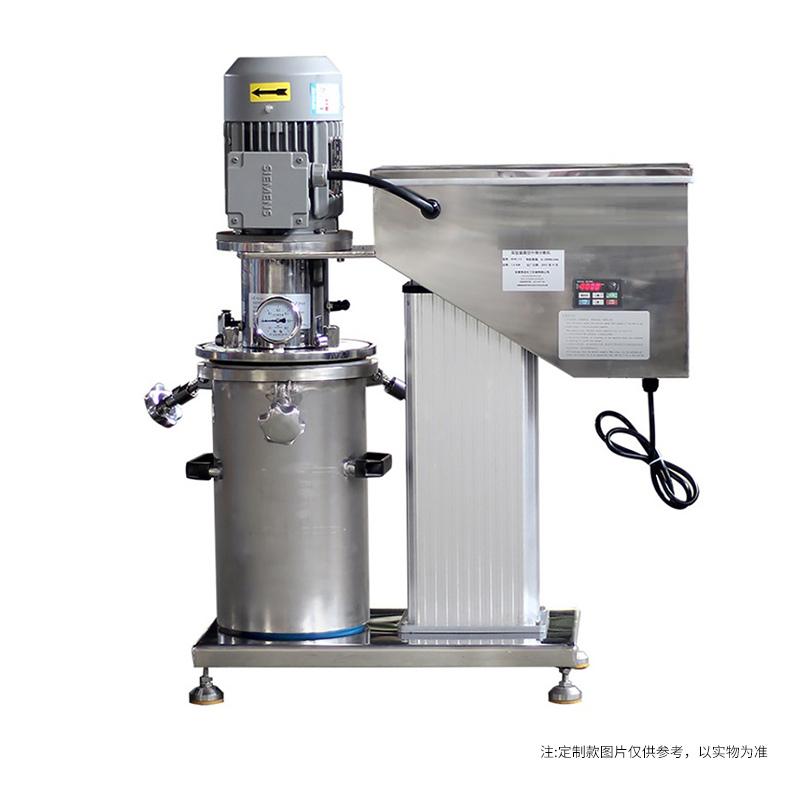

MUXUAN MXF-Z5 Vacuum Closed Disperser
SEElectric lifting platform, lifting/motor distribution cabinet, vacuum device in the operation of distribution cabinet equipment, frequency conversion speed regulation function and vacuum degree up to -0.095MPa.
$3024.00/set
PromotionLoading...
Coupon
Model：
MXF-Z5
MuXuan MXF-Z5 Vacuum Closed DisperserSPEC
MuXuan MXF-Z5 Vacuum Closed DisperserDetails
MuXuan MXF-Z5 Vacuum Closed DisperserPacking list
- SKU
- NB048920
- Product name and specification model
- Experimental Vacuum Disperser, Specification: 5L
- basic structure
- Electric lifting platform, lifting/motor distribution cabinet, dispersed shaft baseplate vacuum kettle sealing system
- Barrel (Stir Barrel)
- Specifications: 155mm × 260mm; Design Volume: 5.2L; Working Volume: 4.9L liner Material: SUS304; Stir barrel upper flange plane and upper barrel body are sealed by sealing ring; Quantity: 1
- Upper barrel body (kettle cover)
- Material: SUS304. One vacuum gauge, one vacuum valve, one Viewing Window.
- High-speed decentralized system
- Disperse motor power 1.1kw, speed 2880rpm/min Deli motor, frequency conversion speed regulation with 1.5kw frequency converter, single dispersion shaft, number of sub-discs: 1 (one each of φ 60 80mm). Material: SUS304
- Vacuum system
- Hold and fix the kettle body and the kettle cover. A sealing ring is used between the kettle body and the kettle cover for sealing. The dispersion shaft and the kettle cover are mechanically sealed. Vacuum degree: -0.095mpa (including a Vacuumpump, connected to the trachea)
- Lifting system
- Using an electric lifting platform, the lift is stable; the stroke is 300mm.
- distribution cabinet
- Equipment operation in the vacuum device, frequency control; lifting, operation stop and other functions display and operation are carried out on the distribution cabinet.
- Host Total power
- Operating Voltage/frequency: 220VB, Total power: 1.1 kw
- Dimensions
- 500 * 360 * 700Mm (subject to final confirmation)
- Appearance of equipment
- Base stainless steel sealing plate, base with universal brake caster, distribution cabinet stainless steel sealing plate, lifting platform aluminum structure, contact material is SUS304.
MXF-Z5
Vacuum Closed Disperser
Electric lifting platform, lifting/motor distribution cabinet, vacuum device in the operation of distribution cabinet equipment, frequency conversion speed regulation function and vacuum degree up to -0.095MPa.
Introduction
The MXF-Z5 vacuum containment disperser is a highly efficient dispersing equipment designed for laboratory and small batch production. It is equipped with an electric lifting platform, frequency conversion speed regulation and vacuum sealing system, with a maximum vacuum degree of -0.095Mpa, which can effectively improve the dispersion efficiency and ensure the stable mixing of materials in a vacuum environment. The core components of the equipment are made of SUS304 stainless steel, which is durable and easy to clean, and is suitable for a variety of fine chemical, pharmaceutical, coating and food research and development fields. With a compact design and flexible operation, the MXF-Z5 is a reliable choice for process optimization and laboratory innovation.
FAQ
QI want to do dispersed mixing of fine chemical materials in the laboratory, requiring a vacuum environment to prevent bubble formation, do you have a suitable equipment recommendation?
A
Recommend MUXUAN MXF-Z5 Vacuum Closed Disperser. It is specially designed for laboratory and small batch production, the highest Vacuum Level can reach -0.095Mpa, can effectively mix materials in vacuum environment, eliminate bubbles, suitable for R & D in fine chemicals, Coating and other fields. The core of the equipment is made of SUS304 stainless steel, which is durable and easy to clean. Electric lifting and frequency conversion speed regulation also make the operation more flexible.
QWe need a Disperser, the motor should be durable, Rotation speed adjustable, easy to do different process tests, how to choose?
A
It is recommended to choose the MUXUAN MXF-Z5. It uses a 1.1kw Deli motor and is equipped with a 1.5kw frequency converter, which can realize frequency conversion stepless speed regulation. You can flexibly adjust the Rotation speed according to the process requirements of different materials. The single dispersion shaft is equipped with two sizes of dispersion discs (φ 60mm and 80mm), which can also adapt to a variety of dispersion tasks. It is a good helper for process optimization and experimental innovation.
QOur laboratory is mainly engaged in the research and development of fine chemicals. We need a Disperser that can operate in vacuum. Do you have a suitable model to recommend?
A
MUXUAN's MXF-Z5 Vacuum Closed Disperser is recommended. This device is specially designed for laboratory and small batch production, with a maximum Vacuum Level of -0.095Mpa, which can efficiently disperse materials in a vacuum environment, effectively prevent bubble generation and material oxidation, and is suitable for R & D applications in fine chemicals.
QWe do coating research and development, often need to mix high viscosity materials, this MXF-Z5 Disperser is suitable?
A
Fully applicable. The MXF-Z5 uses a 1.1kw Deli motor and a 1.5kw inverter, supports variable frequency speed regulation, and has sufficient torque to easily handle high viscosity materials. Its vacuum sealing system also ensures that the material is stable during the mixing process and avoids volatilization. It is a reliable tool for optimizing the formulation in the development of coatings.
