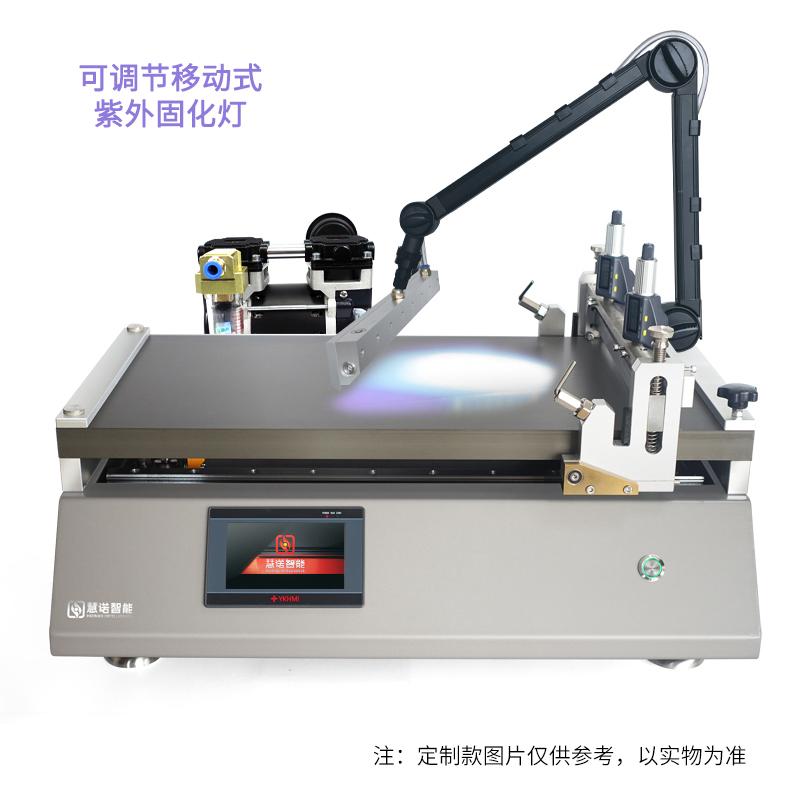

HuiNuo TM3000UV/01 bar drawdown blade coater (with UV curing) effective area 300 * 400mm
SE
TM3000UV/01
HuiNuo TM3000UV/01 Automatic Film ApplicatorSPEC
HuiNuo TM3000UV/01 Automatic Film ApplicatorDetails
HuiNuo TM3000UV/01 Automatic Film ApplicatorPacking list
- SKU
- NB049009
- Coating method
- Bar + drawdown blade
- Coating speed
- 1~ 300Mm/s stepless speed regulation (can be customized)
- Substrate clamping method
- fixture
- Coating table material
- Glass plate
- Coating table size
- 540*430mm
- Effective coating Area
- 300X400mm (can be customized)
- Mayer Rod Thickness Range
- Different bar numbers have different thicknesses, with high-precision imported bars
- Mayer Rod Accuracy
- ±0.001mm
- Drawdown blade thickness range
- 0.1~ 10Mm (clamshell design is easy to clean)
- Drawdown blade material
- Die steel
- Drawdown blade application width
- 300mm
- Drawdown blade Accuracy
- ±0.003mm
- substrate thickness
- ≤ 50mm (customized)
- UV Irradiance Intensity
- 403mw/cm2
- UV Lamp Beads
- 40 pieces
- UV Lamp Input Voltage
- AC85A-260V
- UV Lamp Size
- 300*130*130mm
- UV lamp light effect
- 500W
- UV Lamp Power
- 50W
- Power
- 400w
- Operating language
- Chinese (can be customized in English)
- Display
- Color LCD touch screen
- Host Power Supply
- 220V/50HZ (can be customized 110V/60HZ)
- Dimension
- 658*438*205mm（L*W*H）
- optional feature
- Heating, vacuum adsorption
product description
The automatic film coating machine is a device used for coating films in the laboratory. It replaces manual coating and automatically applies film to improve the accuracy and efficiency of coating. The Principle of the experimental automatic film coating machine is to evenly coat the sample on the substrate to form the required film by controlling the coating head and coating parameters.
This coating machine is a wire bar blade coating machine with two functions: wire bar coating and blade coating. The innovative wire bar installation method and flip-type scraper head greatly improve the coating efficiency, facilitate cleaning, and have speed control. And the coating length adjustment function is suitable for high-precision automatic coating in laboratories, and film production and proofing in university research institutes, new materials, lithium batteries, glue, resin and other laboratories.
Applications
The film coating machine is suitable for coating film sample preparation of coatings, inks, paints, slurries, lithium batteries, pressure-sensitive adhesives, resins, glues, polymer materials, pharmaceuticals, etc. It can be applied on glass, cardboard, and cloth.
Features
1) The glass tabletop is a 3C certified national standard authentic fully tempered glass plate, original gold crystal, heat-resistant to 600℃, scratch-resistant and scratch-resistant
2) Big brand differential regulator, high film thickness control accuracy
3) Flip-type doctor blade coating head, easy to clean
4) Equipped with a high-precision Film Applicator, the original imported wire rod can apply the film uniformly and with high precision
5) Touch screen control panel, easy to operate
6) Coating length and coating speed can be adjusted freely
