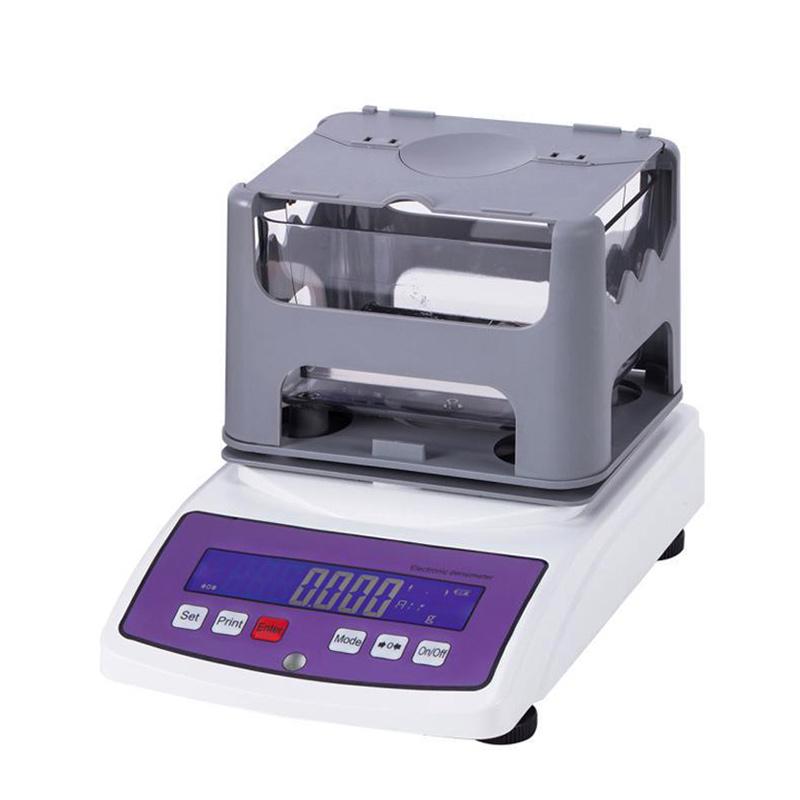

Density Meter JHY-120F Solid Density Meter Imported Sensors 120g 0.0001g/cm3

JHY-120F

Solid Density Meter

Imported Sensors, Weighing range 0.001g-120g, specific gravity accuracy 0.0001g/cm3, weight range > 1, < 1 can be tested, solution compensation setting can be freely set.

Introduction

MD-120F high-precision solid density Tester adopts imported host, stable performance, simple and fast operation, can read the density value instantly, is the most used group of digital density measuring instruments, weighing accuracy can reach one thousandth, only two steps, can display the density value. Compared with the traditional density meter, there is no need for manual calculation, the operation is convenient and time-saving, the measurement is accurate and efficient, and it is suitable for production sites and quality monitoring.

Scope of application

Rubber, wire and cable, aluminum products, fibers, EVA materials, composite materials, powder metallurgy, mineral rocks, fine ceramics, glass industry, metal products, precision ceramics, refractory materials, magnetic materials, alloy materials, mechanical parts, metal recycling, minerals and rocks, cement manufacturing, jewelry industry and other new materials research laboratory.

principle

According to ASTM D792, ASTM D297, GB/T1033, GB/T2951, GB/T3850, GB/T533, HG4-1468, JIS K6268, ISO 2781, ISO 1183 standards. The Archimedes principle buoyancy method is used to accurately and directly read the measured values.

Features

• Can be used as a thousandth of a balance,

• The density meter has high measurement accuracy, fast measurement speed, small sample volume, and simple operation

• According to the different characteristics of the product, water, alcohol, silicone oil and other liquids can be replaced as the medium

• Direct density reading, which reads the density value of the sample directly in just two steps

• With the "one-piece large volume" design (D170×W120×H90mm), it can easily measure samples of any shape, including solids, blocks, particles, floats, films, water absorbents, specific gravity of foams, etc

• Accurately and quickly measure the density of non-absorbent rubber and absorbent rubber products

• The standard RS232 data output function makes it easy to connect to a PC and printer

• Liquid or powder accessories are available as an option to measure the density of liquids or powders

Solid block measurement steps

Step 1: Put the measured sample on the upper tray, and press the Mode button to automatically remember W1 when the weight in the air appears (the machine automatically records)

Step 2: Put the DUT into the water tray, press the Mode button to automatically memorize W2 (automatic recording by the machine) for about 3 seconds, and directly display the density (specific gravity) value

Packing list：Host X1, measurement table X1, forceps X1, weight X1, power cord X1, anti-floating frame X1, sink X1, touch screen pen X1, Glass ware X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
