- SKU
- NB049146
- Spreader process
- Roll → scrape → dry → fit → cut
- Effective application width
- Max.Φ300mm
- Coating method
- scraping
- Cutting head type
- Drawdown blade adjustable
- Display mode indication
- digital display
- WFT
- 0.005-3mm
- Regulator Graduation
- 0.001mm
- Spreader Accuracy
- ±3%
- Coating speed
- 1-10M/min (adjustable)
- unwinding method
- Inflatable shaft unwinding
- winding method
- Inflatable shaft winding
- Outer diameter of winding air expansion shaft
- 3-Inch expansion shaft, load-bearing 50KG
- maximum discharge
- Max.Φ300mm
- maximum charge
- Max.Φ300mm
- Drying Temperature range
- RT+~200℃
- Temperature control Accuracy
- ±3℃
- Heating mode
- hot air circulation
- Oven length
- 1M/section * 3 sections
- Total length of drying tunnel
- 3m
- Drying Power
- 1KW/section
- Motor type
- step
- Control mode
- PLC + touch screen
- Human Machine Interface
- Color touch screen
- tension control
- automatic
- Correction control
- automatic
- thickness control
- manual
- Fitting method
- Roll fit
- Fitting speed
- 1~ 10M/min (adjustable)
- Fit width
- Max.Φ300mm
- Roller material
- Teflon non-stick roller
- Slitting method
- Hob slitting
- split into sizes
- According to customer customization requirements
- Slitting speed
- Synchronize with the production line
- gas source
- 0.5~ 0.8MPa compressed air
- Applicable coil type
- Plastic film, metal foil, paper, non-woven fabric, etc
- Spreader type
- Water-based paints, solar-based paints, UV coatings, etc
- Environmental temperature
- 10℃ ~ 40℃
- Environmental humidity
- 30～90%RH
- power requirements
- 380V, 50Hz, three-phase five-wire system
- Total power consumption
- 3KW (subject to actual customization)
- Dimension
- About 6000mm * 500mm * 1600mm (subject to actual customization)
- Weight
- 1t (subject to actual customization)
Introduction

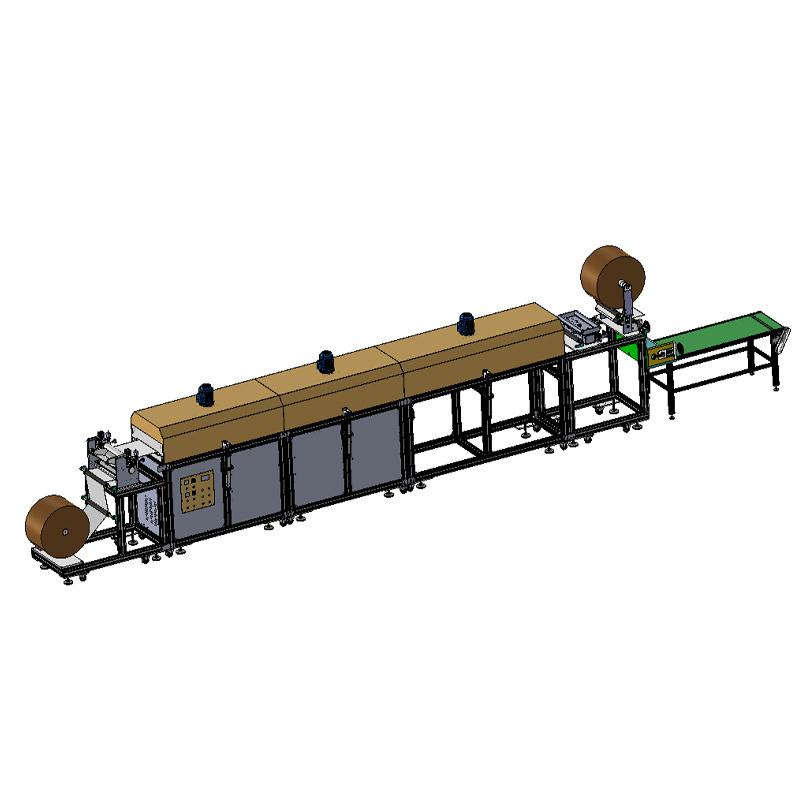

RXG-03/300CSPRO Coil Scraper Coating Machine is a continuous experimental film coating machine with unwinding, scraping, drying and winding functions, with a coating film width of 300mm, a wet film thickness of 0.005-3mm, and a heating temperature of 200°C, which is suitable for UV, self-adhesive, plaster, etc.
Product Structure
The machine is composed of a body, a gluing width adjustment device, a discharging rack, a gluing roller group, a thickness adjustment dial gauge, a transmission platform, a traction roller group, and a transmission mechanism.
1. Body: The body of the equipment is composed of aluminum alloy + high static spraying plate.
2. Gluing width adjustment device: The width adjustment device is composed of food-grade plastic and movable brace.
3. Discharging rack: The machine is equipped with two discharging racks, when the two materials are misaligned and deviated in the laminating process, the deviation correction device automatically adjusts the material rack to move left and right to achieve the effect of aligning the two materials.
4. Rubberized roller set: The rubberized roller group is made of double-drum precision machined parts, and the transmission is stable.
6. Thickness adjustment dial gauge: the adjustment of the coating thickness required when gluing. The thickness of the gluing can be adjusted by rotating the left and right handwheels on the gluing roller frame clockwise or counterclockwise, and the specific thickness is determined according to the dial gauge indication.
7. Transmission platform: The transmission platform is made of stainless steel, and its main function is to connect the substrate after gluing to the next process.
8. Traction roller group: the substrate is pulled by hand between the upper and lower rollers of the traction roller, the handwheel on the frame is tightened to make the traction roller, the rubber ring of the upper roller is in contact with the lower roller, and the traction roller group pulls the substrate over through power transmission to complete the coating work.
Features
Substrate tension control, stable belt handling;
The main drive is servo driven, and the speed can be set;
hot Air Oven;
PLC control, HMI operation, convenient and easy to use;
Process Introduction
1. The equipment adjusts the unwinding tension by controlling the unwinding shaft torque, and adjusts the unwinding tension by controlling the rewinding shaft torque, which is based on the linear speed of the rotation of the main drive steel rollerThe main drive speed enables transport control.
The Drying Oven uses electrically heated air, and the hot air heats and dries the substrate.
