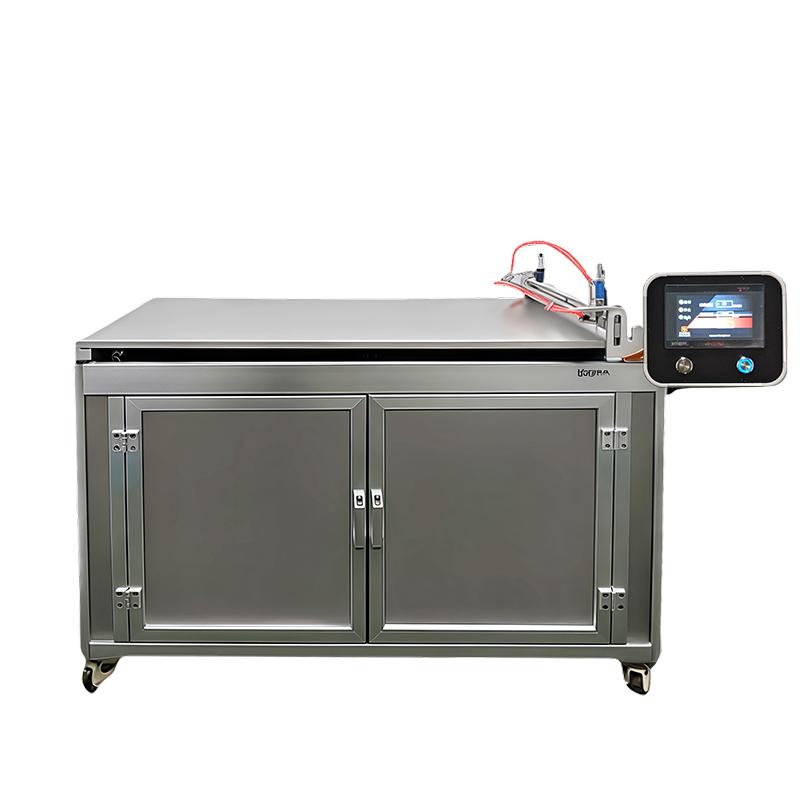

HuiNuo TM3000/11AFD drawdown Bar & blade coater (automatic feeding floor model) Effective area 120 * 60cm
SECoating method bar + Drawdown blade, Spreader speed 1~ 300mm/s stepless speed regulation (can be customized), effective Spreader area 1200 * 600mm (can be customized), standard function automatic feeding system, feeding principle Air source pressure outflow, Drawdown blade width application 600mm
Price: Please contact customer service
Model：
TM3000/11AFD
HuiNuo TM3000/11AFD Automatic Film ApplicatorSPEC
HuiNuo TM3000/11AFD Automatic Film ApplicatorDetails
HuiNuo TM3000/11AFD Automatic Film ApplicatorPacking list
- SKU
- NB049148

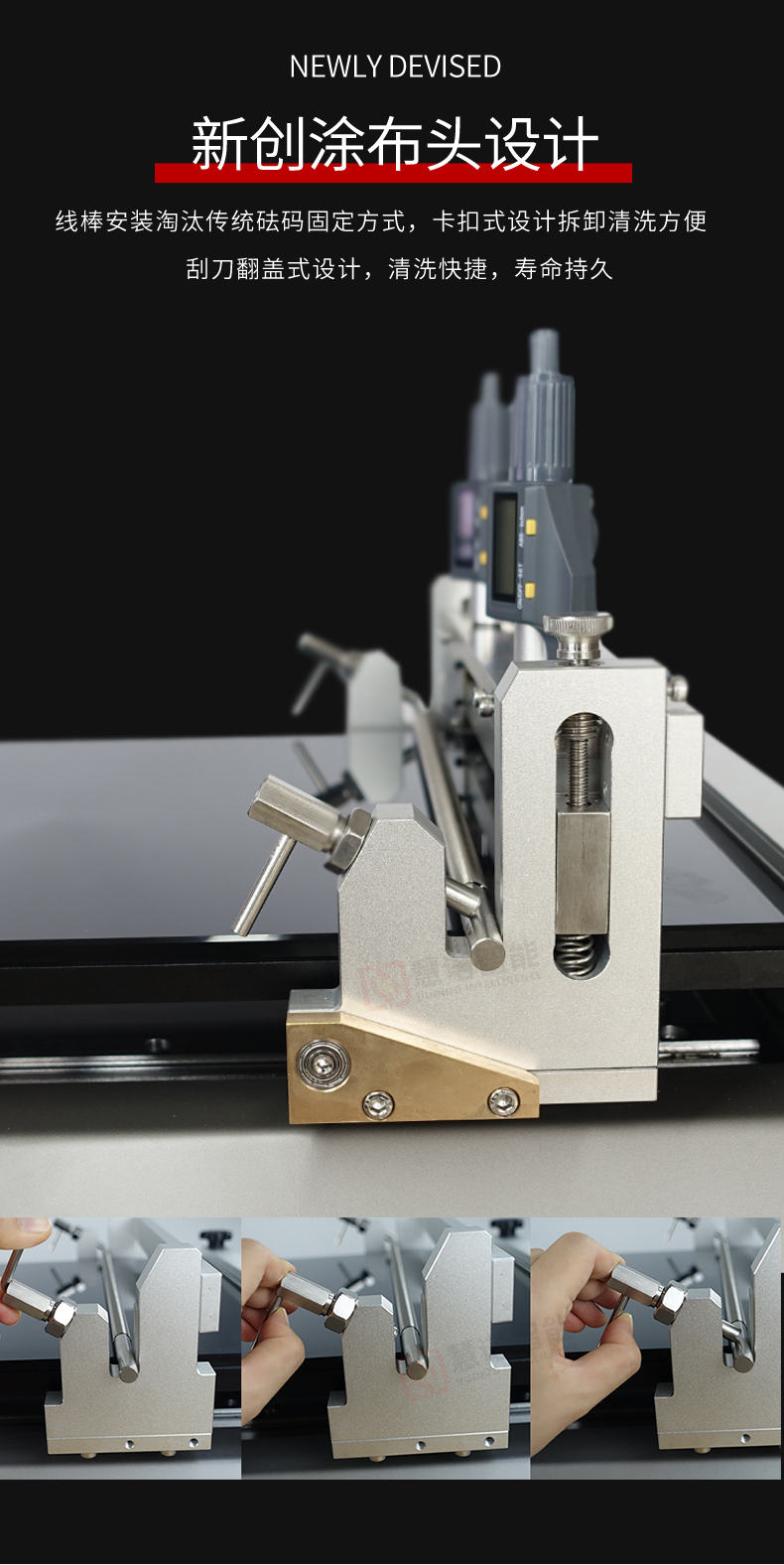

- Coating Method
- Bar + drawdown blade

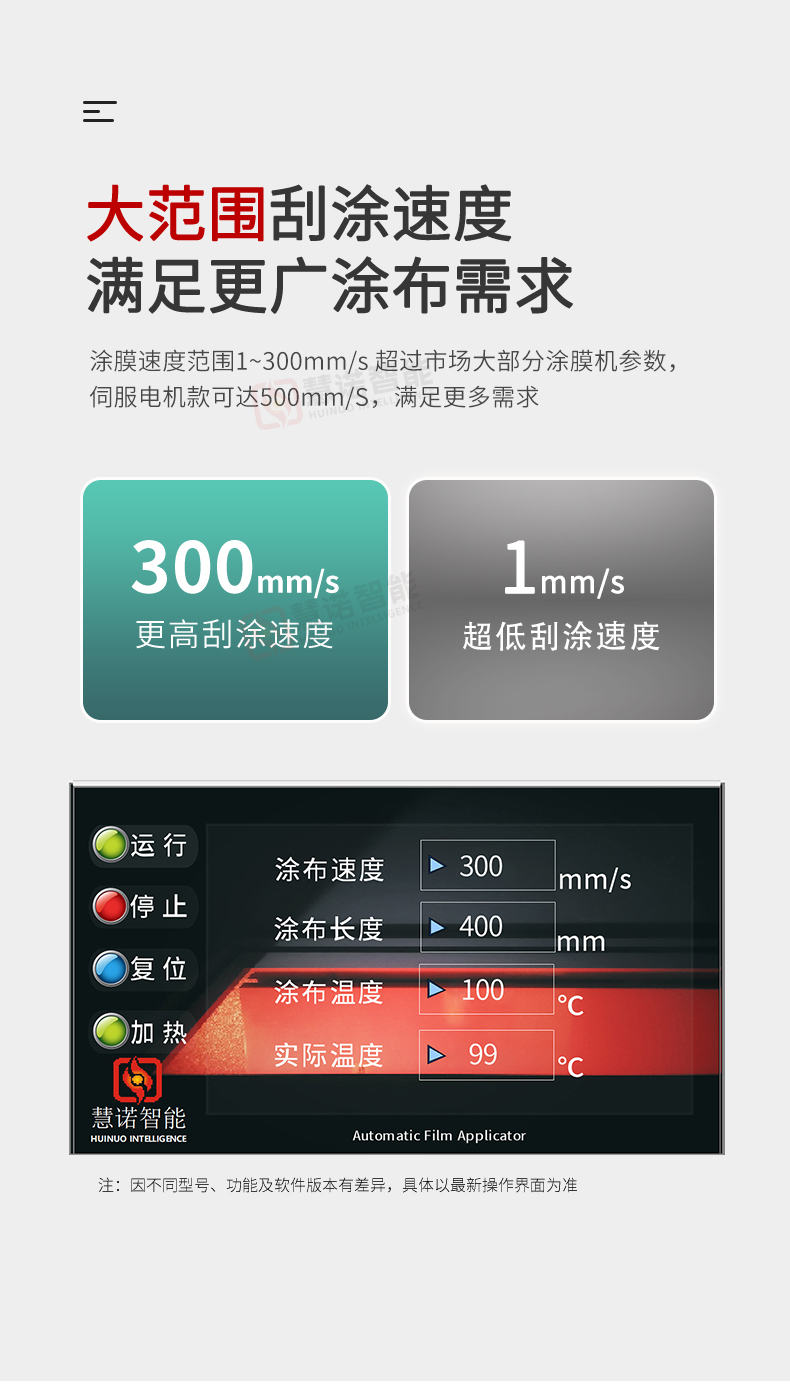

- Coating Speed
- 1~ 300Mm/s stepless speed regulation (can be customized)
- Substrate clamping method
- fixture
- Coating table material
- Glass plate
- Coating table size
- 1440*630mm
- Effective coating Area
- 1200 * 600Mm (can be customized)

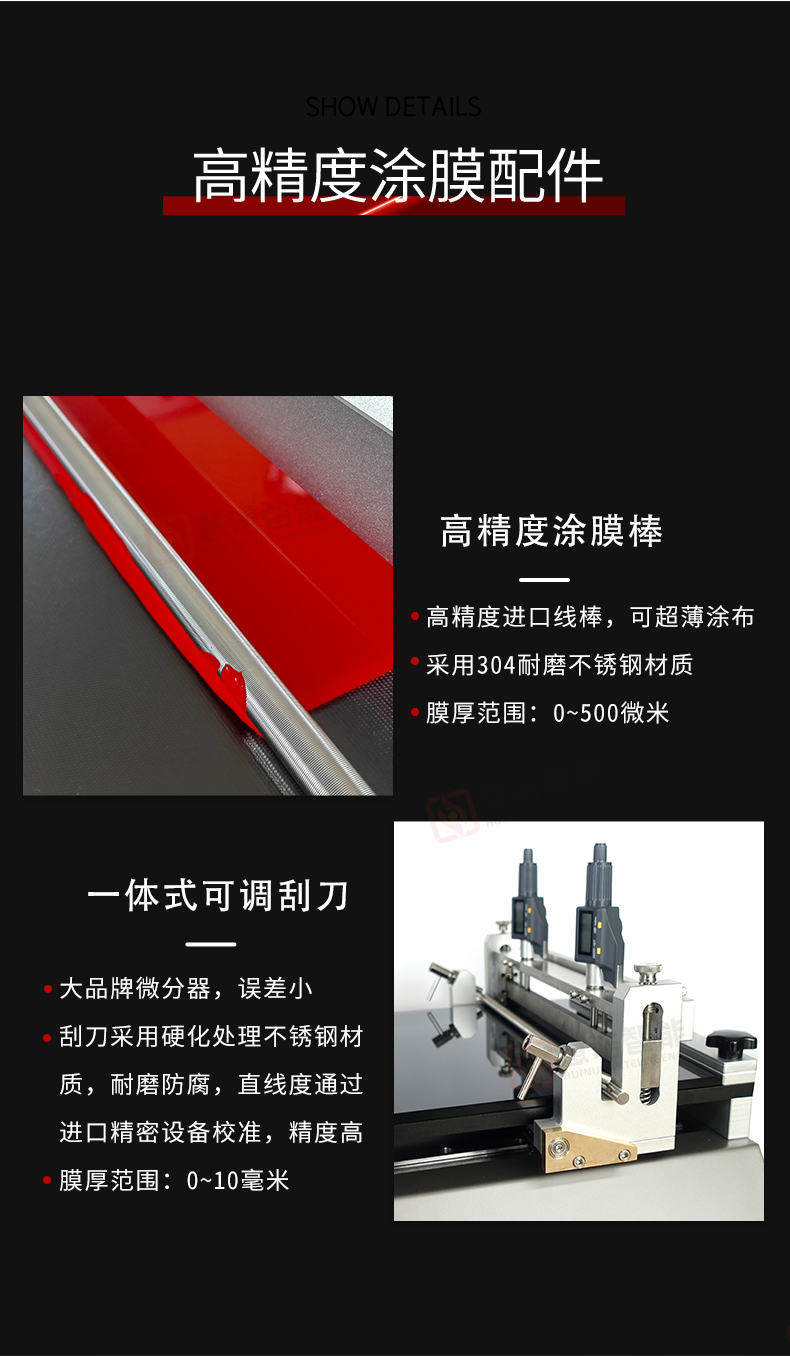

- Meyer rod coating thickness Range
- Different bar numbers Film thickness is different, with high Accuracy imported bar
- Bar Accuracy
- ±0.001mm
- Drawdown blade Spreader Film thickness range
- 0.1~ 10Mm (clamshell design is easy to clean)
- Drawdown blade material
- Die steel
- Drawdown blade Spreader width
- 600mm
- Drawdown blade Spreader Accuracy
- ±0.003mm
- Dimensions
- 1460 * 740 * 940Mm (subject to the actual product)
- standard feature
- Automatic feeding system
- Feeding principle
- Air source pressure flows out
- Feed Sport Mode
- Reciprocating linear motion
- Feeding back and forth traverse speed
- 2~150mm/s
- spit Volume
- Adjustable (by adjusting the air pressure and the running speed of the discharge port)
- Shaft transmission mode
- Timer belt
- Feeding system air source
- 0.6Mpa, which can be connected to the trachea of < unk > 8 (self-equipped).
- Feeding system power Voltage
- 220V,50Hz
- Tank pressure
- Maximum withstand 8Mpa
- Material of feeding barrel
- 304 stainless steel with a wall thickness of 4mm
- Feeding bucket configuration
- Safety valve, pressure regulating valve, pressure gauge, discharge valve
- Feeding drum Volume
- 1L
- power
- 400w
- Display
- Color LCD touch screen
- operating language
- Chinese (can be customized in English)
- Host Power Supply
- 100V~220V/50~60HZ
- optional feature
- Heating, Vacuum chuck
TM3000/11AFD
Automatic Film Applicator
Coating method bar + Drawdown blade, Spreader speed 1~ 300mm/s stepless speed regulation (can be customized), effective Spreader area 1200 * 600mm (can be customized), standard function automatic feeding system, feeding principle Air source pressure outflow, Drawdown blade width application 600mm
