TEELEN XSP-1CAV Monocular Biological Microscope

Total magnification 40X-1600X, observation head hinged 45 ° tilt, 360 ° swirl/spin, converter four holes (inward ball positioning), moving range 60X20mm vernier grid value 0.1mm, imagery system 5 million.
Model：
Certificate
Contact
Details SPEC

Teelen XSP-1CAV Monocular Biological MicroscopeSPEC

Teelen XSP-1CAV Monocular Biological MicroscopeDetails

Teelen XSP-1CAV Monocular Biological MicroscopePacking list

SKU
NB049174
Flat field eyepiece
WF10X/< unk > 18mm can be matched with WF16X/< unk > 11mm
Eliminating color difference objective
4X/0.10, 10X/0.25, 40X/0.65 (spring), 100X/1.25 (oil, spring)
Total Magnification
40X-1600X
observation head
Hinged 45 ° tilt, 360 ° swirl/spin
converter
Four holes (inward ball positioning)
Coarse fine-tuning focusing range
20Mm fretting grid value: 2um coarse fretting coaxial focusing, coarse elastic adjustable, with locking and limit
stage
Double-decked Mobile Platform size 110X110mm Moving range 60X20mm Cursor grid value 0.1mm
Mechanical barrel length
160mm
pupil distance
55-75mm
condenser
1.25NA Abbe condenser, variable light bar with color filter (up and down lift)
lighting
1WLED optional 220V halogen lamp, halogen tungsten bulb 6V12W
Net Weight
2.4 kg
Gross Weight
3.8 kg
instrument size
22X36X36.5（cm）
Packaging Dimensions
33.5X28X59(cm)
Imagery system
5 million
XSP-1CAV
Monocular Biological Microscope
Total magnification 40X-1600X, observation head hinged 45 ° tilt, 360 ° swirl/spin, converter four holes (inward ball positioning), moving range 60X20mm vernier grid value 0.1mm, imagery system 5 million.

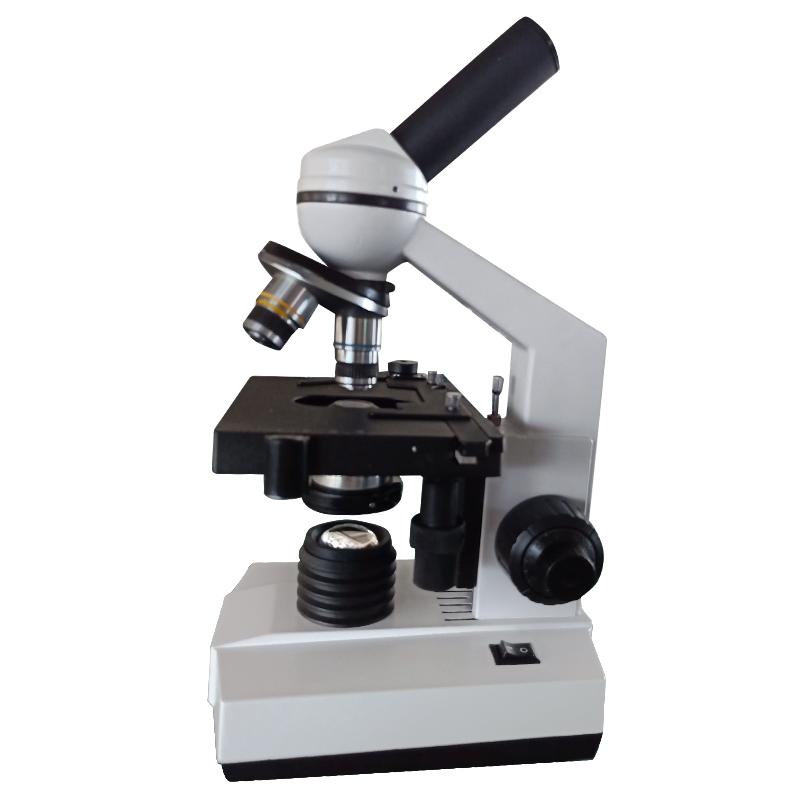

TEELEN XSP-1CAV Monocular Biological Microscope Picture

Instrument Introduction

This microscope can be magnified to 40-1600 times with monocular four-hole conversion, and has the advantages of complete functions, clear imaging and high cost performance. It is suitable for the three routine laboratory tests of the human body and the analysis and laboratory tests of small units such as agriculture, forestry, fishery and aquaculture. Total magnification: 40-1600X.

Functions & Features

  • Traditional model, stable quality, cost-effective.

  • The liftable Abbe condenser is adopted, which has a large range of concentrating adjustment and good contrast.

  • Planetary coaxial coarse and micro dynamic focusing device is adopted, and the focusing is comfortable and stable.

  • The double-layer mechanical stage with a scale and the coaxial longitudinal and horizontal adjustment handwheel make it more convenient to operate.
