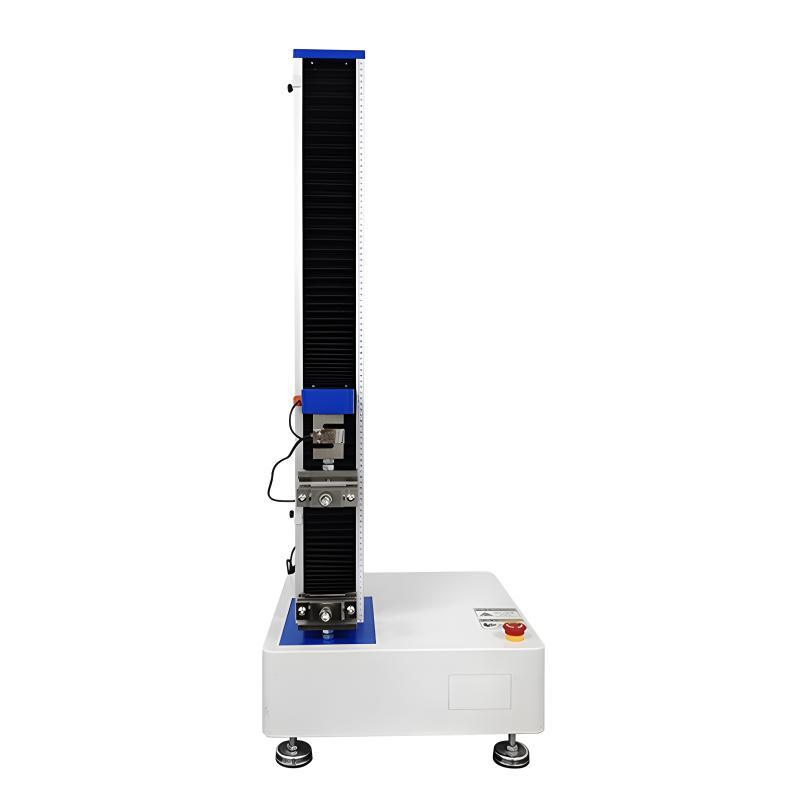

Lugong STD5000 Single Arm Tensile Tester Single column tensile machine 5000N
SE
STD5000
-
Lugong STX5000H Digital Display Single Arm Tensile Tester Single column Electronic tensile machine 5000N$ 1439.00SE -
Factory Direct NBC-5000NHX double column Tensile machining high-precision seamless double roller screw$ 6133.00 -
Material Testing Machine NBC-5000N Double Column Tensile Tester$ 3491.00 -
Lugong STD5000H Single Arm Tensile Tester Single column tensile machine 5000N$ 1921.00SE -
Patek Jushi LY-7012B Universal material Tensile Tester 500KG$ 1439.00SE
LUGONG STD5000 Tensile TesterSPEC
LUGONG STD5000 Tensile TesterDetails
LUGONG STD5000 Tensile TesterPacking list
- SKU
- NB049225
- maximum test force
- 5000N
- Accuracy class
- Level 0.5
- Measurement range
- 1%~100%FS
- Force error of indication
- ≤±0.5%
- Force resolution
- The maximum test force of +/- 1/300000 is not divided into gears, and the full resolution remains unchanged
- Measurement range
- 0.2%～100%FS
- An indication of deformation error
- +/- 0.5% of the indication
- Displacement resolution
- 0.01mm
- Displacement rate adjustment range
- 0.01～500mm/min
- Effective compression stroke (with fixture stroke)
- 700Mm (can be customized according to user request)
- Dimension
- 470 * 470 * 1210Mm (can be customized size)
- Host Weight
- About 90Kg
- Power Supply
- Single Phase 220 +/- 10% VAC, Frequency 50Hz, 1.5kW
Introduction
It is suitable for measuring the mechanical properties and related physical parameters of various materials in tensile, compression, bending, shearing, tearing, peeling, puncture and other states. It can be used for tensile, compression, three-point bending resistance, four-point bending resistance, shearing, tearing, peeling, puncture of finished shoes, carton pressure, foam cycle compression, spring tension and compression and various dynamic and static cycle tests. And can be tested and provided according to GB, ISO, DIN, ASTM, JIS and other domestic and international relevant standards.
Performance characteristics:
(1) Mechanical process structure
The main frame is mainly composed of a base, a column and a precision ball screw to form a floor-mounted structure; The transmission loading system adopts servo motor, planetary reducer and synchronous toothed belt deceleration device to drive the high-precision ball screw to rotate, and then drive the moving beam to achieve loading. This machine has beautiful shape, good stability, large rigidity, high control accuracy, high work efficiency, low noise, energy saving and environmental protection.
(2) Control and measurement systems
Hierarchical management mode of user permissions
Powerful trial management features
Powerful data and curve analysis
Ease of report editing
The test unit can be set arbitrarily according to the requirements
Multiple protection mechanisms
Test data reminder storage to avoid test data loss due to accidents
One-click switching between multiple Chinese languages
Using USB or serial port communication, the data transmission is stable and reliable, and the anti-interference ability is strong
