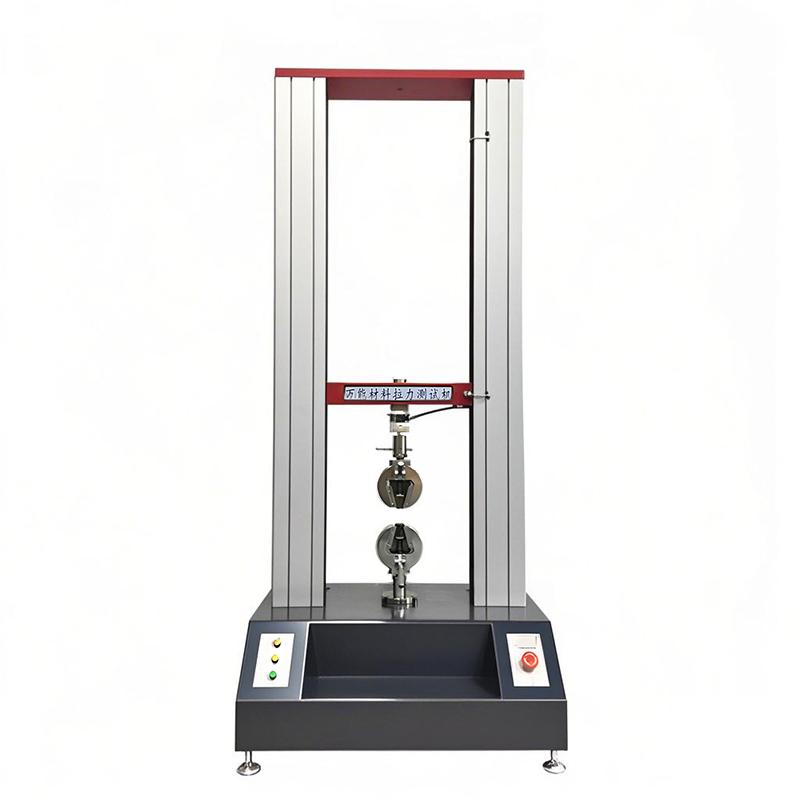

Lugong STS5000 Double Arm Tensile Tester Double column tension machine 5000N
SE
STS5000
-
Lugong STX5000H Digital Display Single Arm Tensile Tester Single column Electronic tensile machine 5000N$ 1439.00SE -
HBO LTD-5000 Gantry Microcomputer Controlled Spring Testing Machine, Range 5000N$ 3735.00SE -
Haibao XY-5000 electronic universal testing machine, range 5000N/500KG$ 2222.00SE -
Haibao XYD-5000 small gantry microcomputer-controlled universal testing machine, range 5000N/500KG$ 3125.00SE -
Haibao LYD-5000 gantry microcomputer-controlled universal testing machine, range 5000N/500KG$ 3495.00SE
LUGONG STS5000 Tensile TesterSPEC
LUGONG STS5000 Tensile TesterDetails
LUGONG STS5000 Tensile TesterPacking list
- SKU
- NB049226
- maximum test force
- 5000N
- Accuracy class
- Level 0.5
- Measurement range
- 1%~100%FS
- Force error of indication
- ≤±0.5%
- Force resolution
- The maximum test force of +/- 1/300000 is not divided into gears, and the full resolution remains unchanged
- Measurement range
- 0.2%～100%FS
- An indication of deformation error
- +/- 0.5% of the indication
- Displacement resolution
- 0.01mm
- Displacement rate adjustment range
- 0.01～500mm/min
- effective stretch stroke
- 750Mm (can be customized according to user request)
- effective compression stroke
- 950Mm (can be customized according to user request)
- effective test width
- 400mm
- Dimension
- 750 * 540 * 1750Mm (can be customized size)
- Dimension
- 750 * 540 * 2150Mm (plus work cabinet)
- Host Weight
- About 200Kg
- Power Supply
- 220 +/- 10% VAC, Frequency 50Hz, 1.5kW
Introduction
It is suitable for measuring the mechanical properties and related physical parameters of various materials in tensile, compression, bending, shearing, tearing, peeling, puncture and other states. It can be used for tensile, compression, three-point bending resistance, four-point bending resistance, shearing, tearing, peeling, puncture of finished shoes, carton pressure, foam cycle compression, spring tension and compression and various dynamic and static cycle tests. And can be tested and provided according to GB, ISO, DIN, ASTM, JIS and other domestic and international relevant standards.
Performance characteristics:
Mechanical process structure
The main frame is mainly composed of a base, two columns and two precision ball screws to form a gate-type floor frame structure; The transmission loading system adopts servo motor and synchronous toothed belt deceleration device to drive the high-precision ball screw to rotate, and then drive the moving beam to achieve loading. This machine has beautiful shape, good stability, large rigidity, high control accuracy, high work efficiency, low noise, energy saving and environmental protection.
Control and measurement systems
1. Hierarchical management mode of user rights
2. It has a powerful test management function
3. Powerful data and curve analysis function
4. Convenience of report editing
5. The test unit can be set arbitrarily according to the needs
6. Multiple protection mechanisms
7. Test data reminder storage to avoid test data loss caused by accidents
8. One-click switching of multiple Chinese languages
9. Using USB or serial port communication, the data transmission is stable and reliable, and the anti-interference ability is strong
