Lugong STS20K Double Arm Tensile Tester Electric double column tensile machine 20KN

SE
Maximum test force 20KN, accuracy class 0.5, test force Measurement range 1%~ 100% FS (full scale), deformation Measurement range 0.2%~ 100% FS, deformation error of indication indication within +/- 0.5%, Displacement resolution 0.01mm.
$2947.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CATCAT
Similar products

LUGONG STS20K Tensile TesterSPEC

LUGONG STS20K Tensile TesterDetails

LUGONG STS20K Tensile TesterPacking list

SKU
NB049228
maximum test force
20KN
Accuracy class
Level 0.5
Measurement range
1%~100%FS
Force error of indication
≤±0.5%
Force resolution
The maximum test force of +/- 1/300000 is not divided into gears, and the full resolution remains unchanged
Measurement range
0.2%～100%FS
An indication of deformation error
+/- 0.5% of the indication
Displacement resolution
0.01mm
Displacement rate adjustment range
0.01～500mm/min
effective stretch stroke
750Mm (can be customized according to user request)
effective compression stroke
950Mm (can be customized according to user request)
effective test width
400mm
Dimension
750 * 540 * 1750Mm (can be customized size)
Dimension
750 * 540 * 2150Mm (plus work cabinet)
Host Weight
About 200Kg
Power Supply
220 +/- 10% VAC, Frequency 50Hz, 1.5kW
STS20K
Tensile Tester
Maximum test force 20KN, accuracy class 0.5, test force Measurement range 1%~ 100% FS (full scale), deformation Measurement range 0.2%~ 100% FS, deformation error of indication indication within +/- 0.5%, Displacement resolution 0.01mm.

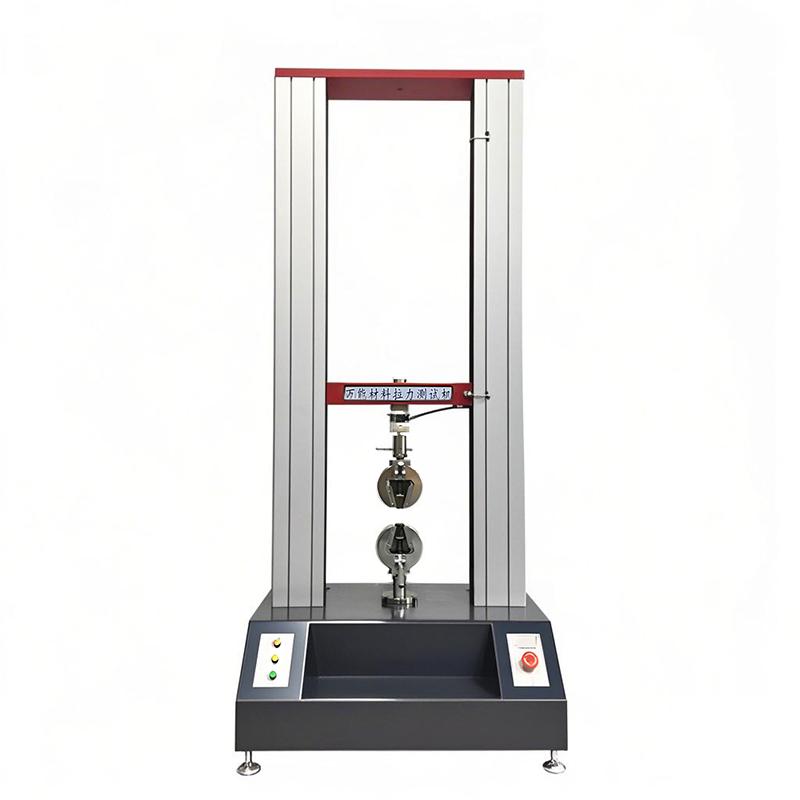

Lugong STS20K Double Arm Tensile Tester Electric double column tensile machine 20KN Picture

Introduction

It is suitable for measuring the mechanical properties and related physical parameters of various materials in tensile, compression, bending, shearing, tearing, peeling, puncture and other states. It can be used for tensile, compression, three-point bending resistance, four-point bending resistance, shearing, tearing, peeling, puncture of finished shoes, carton pressure, foam cycle compression, spring tension and compression and various dynamic and static cycle tests. And can be tested and provided according to GB, ISO, DIN, ASTM, JIS and other domestic and international relevant standards.

Performance characteristics:

Mechanical process structure

The main frame is mainly composed of a base, two columns and two precision ball screws to form a gate-type floor frame structure; The transmission loading system adopts servo motor and synchronous toothed belt deceleration device to drive the high-precision ball screw to rotate, and then drive the moving beam to achieve loading. This machine has beautiful shape, good stability, large rigidity, high control accuracy, high work efficiency, low noise, energy saving and environmental protection.

Control and measurement systems

1. Hierarchical management mode of user rights

2. It has a powerful test management function

3. Powerful data and curve analysis function

4. Convenience of report editing

5. The test unit can be set arbitrarily according to the needs

6. Multiple protection mechanisms

7. Test data reminder storage to avoid test data loss caused by accidents

8. One-click switching of multiple Chinese languages

9. Using USB or serial port communication, the data transmission is stable and reliable, and the anti-interference ability is strong


FAQ
QIs the tensile testing machine structure reliable? How does it work?
A It adopts a floor-to-ceiling double-column gate frame, with high-precision ball screw and servo motor drive, this structure has good rigidity, very stable, high control accuracy, low running noise, energy saving and environmental protection, ensuring the accuracy and durability of the test.
QWhat items can this STS20K tensile machine measure?
A It can not only perform basic tensile, compression, bending (three and four points), shearing, tearing, and disbonding tests, but also complete tests such as finished shoe piercing, carton compression, foam cyclic compression, spring compression, and various dynamic or static cyclic tests.
QTensile machine control system is easy to use? Data security?
A Its control system is powerful, supports user hierarchical management, test management and data analytics are very convenient, report editing is simple, and units can be set freely. Special attention is paid to data security, with automatic storage loss prevention, multiple protection mechanisms, and support for multi-language switching. Communication (USB/serial port) is stable and anti-interference.
