Lugong STS100K Double arm Tensile Tester Double column tensile machine 100KN

SE
Maximum test force 100KN, accuracy class 0.5, test error of indication indication within 0.5%, deformation Measurement range 0.2%~ 100% FS, Displacement resolution 0.01mm.
$4206.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT OI

LUGONG STS100K Tensile TesterSPEC

LUGONG STS100K Tensile TesterDetails

LUGONG STS100K Tensile TesterPacking list

SKU
NB049230
maximum test force
100KN
Accuracy class
Level 0.5
Measurement range
1%~100%FS
Force error of indication
≤±0.5%
Force resolution
The maximum test force of +/- 1/300000 is not divided into gears, and the full resolution remains unchanged
Measurement range
0.2%～100%FS
An indication of deformation error
+/- 0.5% of the indication
Displacement resolution
0.01mm
Displacement rate adjustment range
0.01～500mm/min
effective stretch stroke
680Mm (can be customized according to user request)
effective compression stroke
1100Mm (can be customized according to user request)
effective test width
400mm
Dimension
700X550x2000mm (customizable size)
Dimension
700X550x2400mm (plus work cabinet)
Host Weight
About 380Kg
Power Supply
220 +/- 10% VAC, Frequency 50Hz, 1.5kW
STS100K
Tensile Tester
Maximum test force 100KN, accuracy class 0.5, test error of indication indication within 0.5%, deformation Measurement range 0.2%~ 100% FS, Displacement resolution 0.01mm.

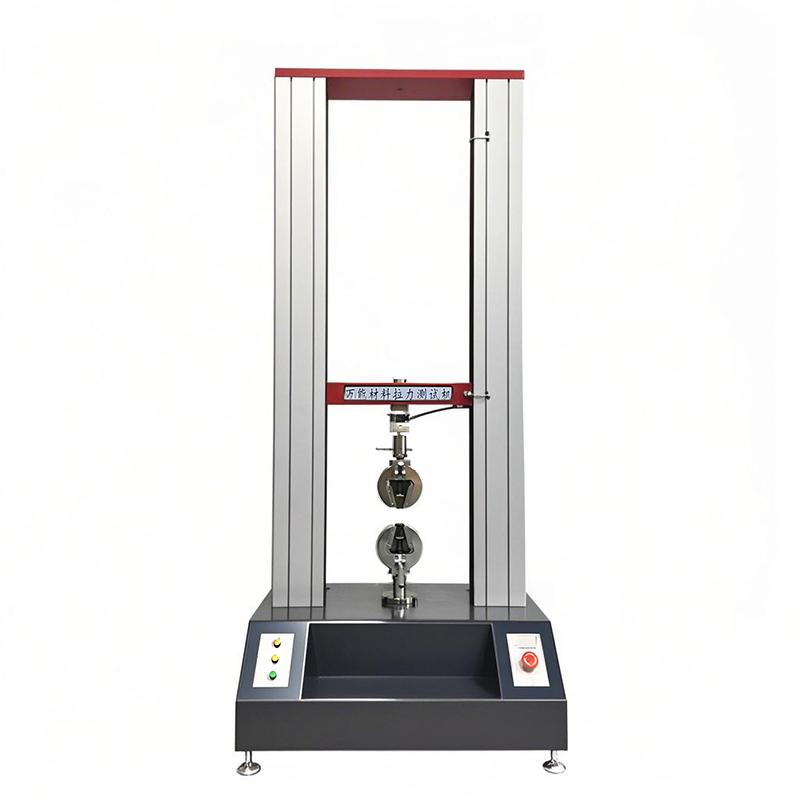

Lugong STS100K Double arm Tensile Tester Double column tensile machine 100KN Picture

Introduction

It is suitable for measuring the mechanical properties and related physical parameters of various materials in tensile, compression, bending, shearing, tearing, peeling, puncture and other states. It can be used for tensile, compression, three-point bending resistance, four-point bending resistance, shearing, tearing, peeling, puncture of finished shoes, carton pressure, foam cycle compression, spring tension and compression and various dynamic and static cycle tests. And can be tested and provided according to GB, ISO, DIN, ASTM, JIS and other domestic and international relevant standards.

Performance characteristics:

Mechanical process structure

The main frame is mainly composed of a base, two columns and two precision ball screws to form a gate-type floor frame structure; The transmission loading system adopts servo motor and synchronous toothed belt deceleration device to drive the high-precision ball screw to rotate, and then drive the moving beam to achieve loading. This machine has beautiful shape, good stability, large rigidity, high control accuracy, high work efficiency, low noise, energy saving and environmental protection.

Control and measurement systems

1. Hierarchical management mode of user rights

2. It has a powerful test management function

3. Powerful data and curve analysis function

4. Convenience of report editing

5. The test unit can be set arbitrarily according to the needs

6. Multiple protection mechanisms

7. Test data reminder storage to avoid test data loss caused by accidents

8. One-click switching of multiple Chinese languages

9. Using USB or serial port communication, the data transmission is stable and reliable, and the anti-interference ability is strong


FAQ
QIs the operation complicated? Will the data be lost after the test? Is the report easy to do?
A It is very worry-free to use. The software management is clear, and different people have different permissions. After the data test, it will automatically remind you to save it, and you are not afraid of losing the result when the power is cut off. USB or serial port is connected to the computer to transmit data securely. Linear dispersion and reports can be viewed, changed and stored in the software. The unit can be set at will, and the language can be changed. It meets domestic and foreign standards. The report is professional when typed out.
QIs the force measurement accurate? Especially when measuring small changes or large forces?
A The accuracy reaches 0.5 level, and the error does not exceed +/- 0.5%. Whether you measure the force (100%) or the small force (1%), the resolution is as high as 1/300000, and the whole process remains unchanged.
QThe range is so large, is it fast? Is it safe?
A Speed from super slow 0.01 millimeters per minute to fast 500 millimeters, adjust at will. Protection is also in place, multiple safety mechanisms are watching, and the machine itself is also very "durable", with a large range but stable and safe operation.
