Lugong STD5000H Single Arm Tensile Tester Single column tensile machine 5000N

SE
Maximum test force 5000N, accuracy class 0.5, Measurement range 1%~ 100% FS (full scale), Measurement range 0.2%~ 100% FS, Displacement resolution 0.01mm.
$1921.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT OI
Similar products

LUGONG STD5000H Tensile TesterSPEC

LUGONG STD5000H Tensile TesterDetails

LUGONG STD5000H Tensile TesterPacking list

SKU
NB049231
maximum test force
5000N
Accuracy class
Level 0.5
Measurement range
1%~100%FS
Force error of indication
≤±0.5%
Force resolution
The maximum test force of +/- 1/300000 is not divided into gears, and the full resolution remains unchanged
Measurement range
0.2%～100%FS
An indication of deformation error
+/- 0.5% of the indication
Displacement resolution
0.01mm
Displacement rate adjustment range
0.01～500mm/min
Effective compression stroke (with fixture stroke)
1000Mm (can be customized according to user request)
Dimension
470 * 470 * 1510Mm (can be customized size)
Host Weight
About 110Kg
Power Supply
Single Phase 220 +/- 10% VAC, Frequency 50Hz, 1.5kW
STD5000H
Tensile Tester
Maximum test force 5000N, accuracy class 0.5, Measurement range 1%~ 100% FS (full scale), Measurement range 0.2%~ 100% FS, Displacement resolution 0.01mm.

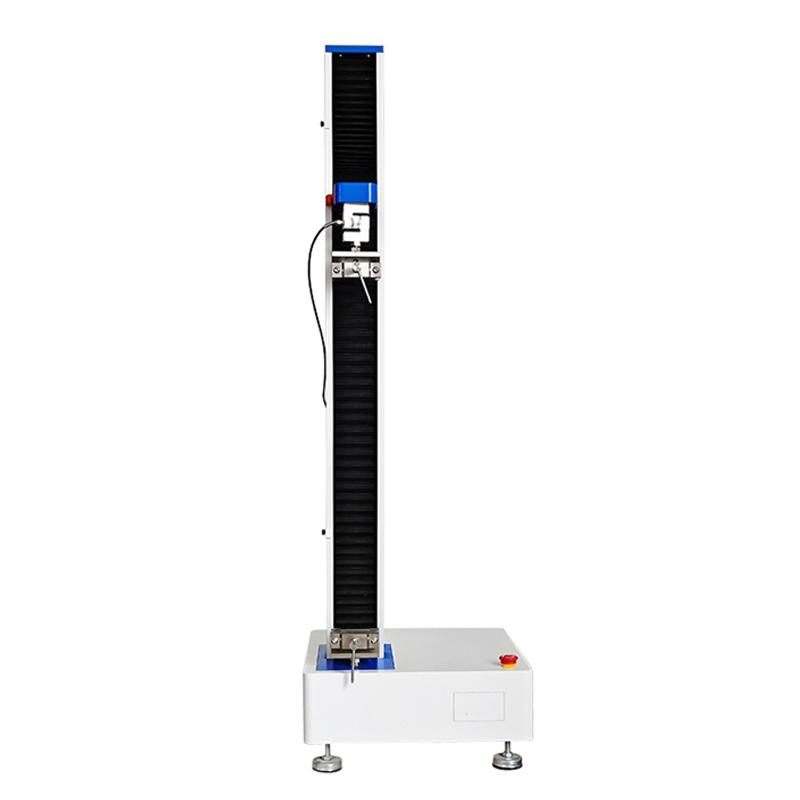

Lugong STD5000H Single Arm Tensile Tester Single column tensile machine 5000N Picture

Introduction

It is suitable for measuring the mechanical properties and related physical parameters of various materials in tensile, compression, bending, shearing, tearing, peeling, puncture and other states. It can be used for tensile, compression, three-point bending resistance, four-point bending resistance, shearing, tearing, peeling, puncture of finished shoes, carton pressure, foam cycle compression, spring tension and compression and various dynamic and static cycle tests. And can be tested and provided according to GB, ISO, DIN, ASTM, JIS and other domestic and international relevant standards.

Performance characteristics:

Mechanical process structure

The main frame is mainly composed of a base, a column and a precision ball screw to form a floor-mounted structure; The transmission loading system adopts servo motor, planetary reducer and synchronous toothed belt deceleration device to drive the high-precision ball screw to rotate, and then drive the moving beam to achieve loading. This machine has beautiful shape, good stability, large rigidity, high control accuracy, high work efficiency, low noise, energy saving and environmental protection.

Control and measurement systems

1. Hierarchical management mode of user rights

2. It has a powerful test management function

3. Powerful data and curve analysis function

4. Convenience of report editing

5. The test unit can be set arbitrarily according to the needs

6. Multiple protection mechanisms

7. Test data reminder storage to avoid test data loss caused by accidents

8. One-click switching of multiple Chinese languages

9. Using USB or serial port communication, the data transmission is stable and reliable, and the anti-interference ability is strong


FAQ
QPlastic film needs to be tested for tensile and Tear strength.
A Yes. This testing machine has an accuracy class of 0.5 and can measure the tensile and Tear strength of lightweight materials such as films. It supports GB/ISO standards and is equipped with a variety of fixtures, which are especially suitable for testing the mechanical properties of films, tapes and other materials.
QWhat are the protection mechanisms for long-term cyclic testing?
A In addition to the standard overload protection, some low-noise energy-saving designs of the transmission mechanism reduce the continuous operating load, combined with the precise speed regulation function of the moving beam (0.01-500 mm/min stepless adjustment) and multi-level software protection to ensure the safety and reliability of high-strength tests such as material fatigue tests.
QWhat are the advantages of the equipment in force measurement accuracy?
A Its core lies in the accuracy class of 0.5 and +/- 0.5% force value error of indication, coupled with the unique technology of maintaining 1/300000 resolution throughout the whole process - regardless of the force value, the resolution is always the same and there is no need to switch the range. This "constant precision throughout the process" design eliminates the accumulation of errors in the measurement of traditional equipment, especially suitable for high sensitivity test scenarios with small force value changes.
