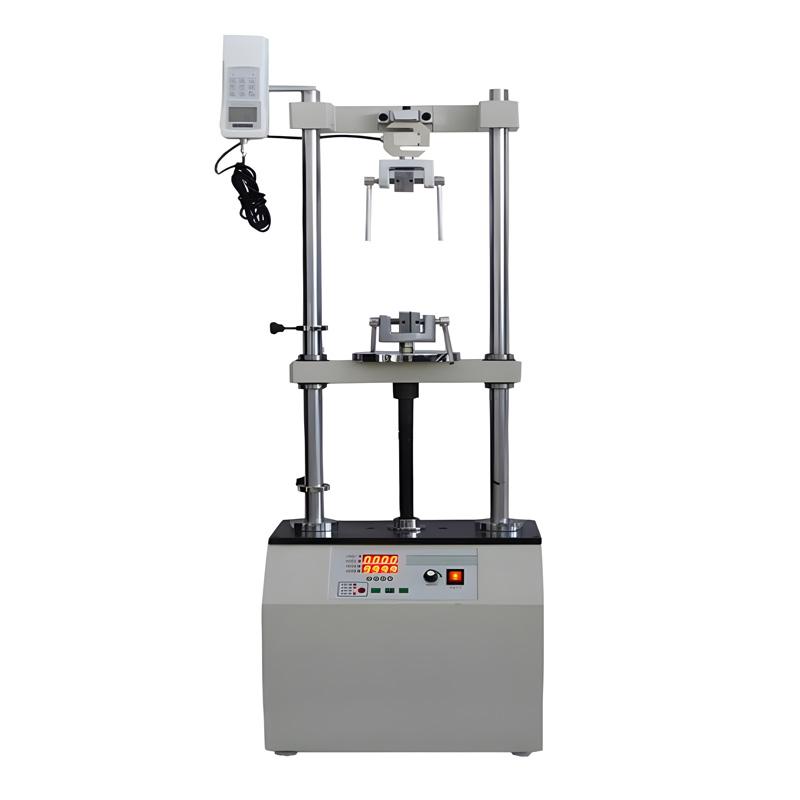

HBO HDD-10K Electric Double Column Tensile Tester

HDD-10K

Electric double column Tensile Tester

Range 10KN/1000kgf, resolution 0.005KN/0.5/kgf/1lb, Precision level 0.5, indication relative error ≤ +/- 0.5%, force sampling Frequency 120HZ, stroke 220mm, speed range 0-500mm/min stepless speed regulation, time setting range 0-9999s.

Introduction

This testing machine adopts a double guide rod structure and is driven by a motor. It is suitable for tensile pressure load test, plugging force test, damage test and so on of various products, and can realize a variety of practical functions such as pull-off stop, force value holding, applied force limit, fatigue test and so on.

It is widely used in various quality inspections, physical experiments, engineering tests and other fields, and is equipped with a special upper computer operation software to connect to the computer for data storage, analysis, export, query and printing and other functions.

Key features:

• Dual-screen backlit display

• Value type: real-time force value tracking, peak hold, first peak value, key pressure-rebound force

• Four test modes: Auto Count, Auto Timing, Manual Timing, Manual Timing

• The test speed is adjustable

• It can be jogged and automatically operated, which is convenient for adjusting the upper and lower positions of the fixture before the test

• The pause time can be set during the sample batch test, and the sample clamping time can be customized

• The loading force can be set (the force value can be controlled), and the beam will remain still when the preset force is reached (the holding time can be set) or return to the origin

• Force holding function: The loading force holding time can be set freely

• Set the force value round-trip motion function: When the device runs to the specified force value, the force value, holding time, and number of movements can be set freely

• Tension and compression stop function: After the measured object is discharged, the beam remains still or returns to the origin

• Equipped with limit protection device and leakage protection device

• Test direction display (pull, thrust)

• The upper and lower limits can be set to compare the value to make the data qualified judgment, and there is an audible alarm and level signal output

• 99 sets of test data are stored, and the average, maximum and minimum values of the stored data are automatically calculated

• RS232 and USB dual interfaces, easy to connect with IPC PLC and PC

• HOST COMPUTER SOFTWARE: Chinese WINDOWS INTERFACE

The test results are displayed in a variety of coordinate curves: real-time force value-time, peak force value-times, first peak value-times

Qualified judgment: In addition to the automatic test results, the qualified judgment and batch testing pass rate can be made according to the qualified range of the preset standard value

Automatic storage: Test data and curves are automatically stored in the computer, and the number of storage is unlimited

Test data: The test data can be queried and exported in Excel format

Test report: The test report can be prepared in the format required by the user, and the report can be formed and printed

Packing list：machine x1, manual x1, certificate x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
