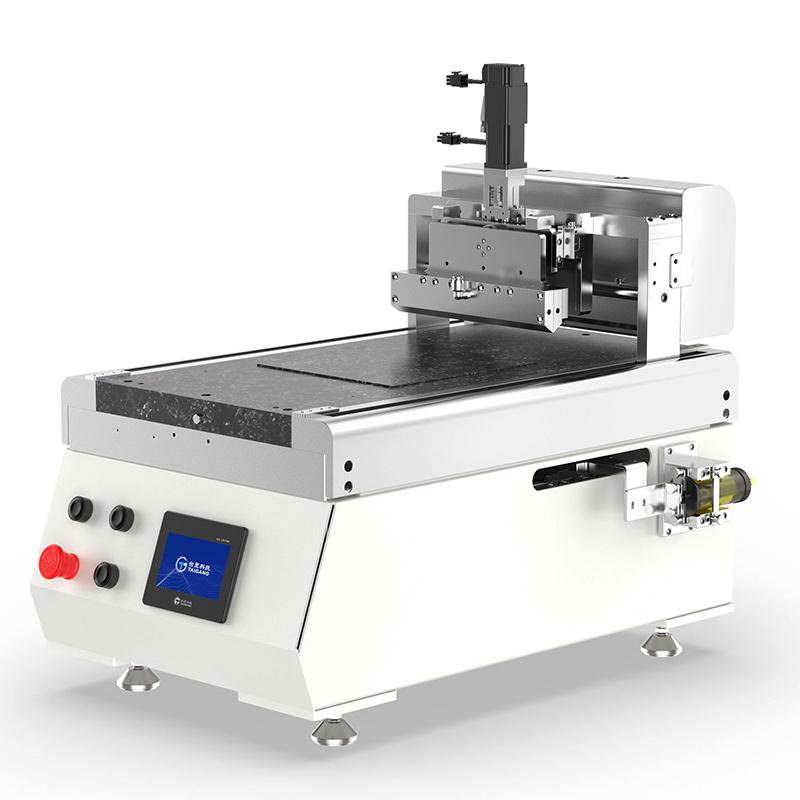

Taigang TG-TB200S flat slot die coater
SE
TG-TB200S
TaiGang TG-TB200S Plate slot die coaterSPEC
TaiGang TG-TB200S Plate slot die coaterDetails
TaiGang TG-TB200S Plate slot die coaterPacking list
- SKU
- NB049276
- Coating table size
- Adjustable (according to slot-die die specifications)
- substrate size
- Max 220x240mm Flatness: +/- 3μm; Maximum substrate heating temperature: 150 ℃
- Mechanical speed
- Traverse speed 0-200mm/s (parameter can be set)
- substrate thickness
- 0.02-10 mm for flexible and rigid glass substrates
- Substrate clamping method
- Vacuum adsorption
- Spreader platform material
- Marble base + high-precision stainless steel adsorption platform
- Feeding system
- High-precision liquid supply pump + corrosion resistant pipeline + luer joint
- Feeding speed
- 0-10Ml/min14; supply Accuracy: 0.05ml/s0.05-5mm/s; advance supply time: 0-10s
- Spreader uniformity
- Film thickness uniformity ≤ 3% -5% (depending on Spreader process, inks, substrate)
- applicable viscosity
- 1-3000Cps (various oily/water-based UV adhesives, inks and other solvents)
- Air knife
- Equipped with aluminum alloy nitrogen air knife
- Installation size
- L740mm*W444mm*H425mm
- Control mode
- AC servo + gear reducer + screw + grating feedback + PLC automatic/touch screen control
- Coating method
- extrusion coating
- Lip height
- 0~5Mm, adjustable
- Adjustment Accuracy
- A. Digital dial: 1um
- Coating Accuracy
- +/- 2μm (reference value depends on slurry characteristics)
- Die head model
- TG-C200
- Die head material
- SUS630
- Die Accuracy
- Lip straightness ≤ 3μm
- cavity Volume
- 8ml
- gasket width
- Opening width Max. 200mm
- Gasket thickness
- 30/50/70/100/200um (choose thickness according to solution viscosity)
- Weight
- About 120Kg
- Power Supply
- 380V/50HZ, Power 5KW
Introduction
TG Flat Slit Coating Machine is a device for surface coating of sheet substrates, using the slit die coating process, mainly used in laboratory research and development, and can work in the glove box. This equipment is mainly used for the surface coating of sheet substrates in the fields of various types of glues, lithium battery substrates, OLED, solar photoelectric films and polymer conductive films.
Features
1. High coating accuracy and good consistency.
2. The coating window is wide, and the applicable viscosity is more.
3. The coated substrate is a vacuum suction plate, and the substrate can be evenly adsorbed on the surface of the coated plate.
4. The equipment can be used in argon atmosphere in the glove box.
5. Touch screen operation, equipment parameter adjustment, storage, control is convenient and fast.
Process Introduction
Process Description: After the paint enters the coating die, it flows out at the discharge port through pressure distribution and is coated on the surface of the substrate to form the target coating. The coating thickness and size are affected by the feeding speed and coating speed, and the coating accuracy is affected by many factors such as die accuracy, die adjustment accuracy, coating plate flatness, moving speed accuracy, feeding accuracy and coating characteristics.
