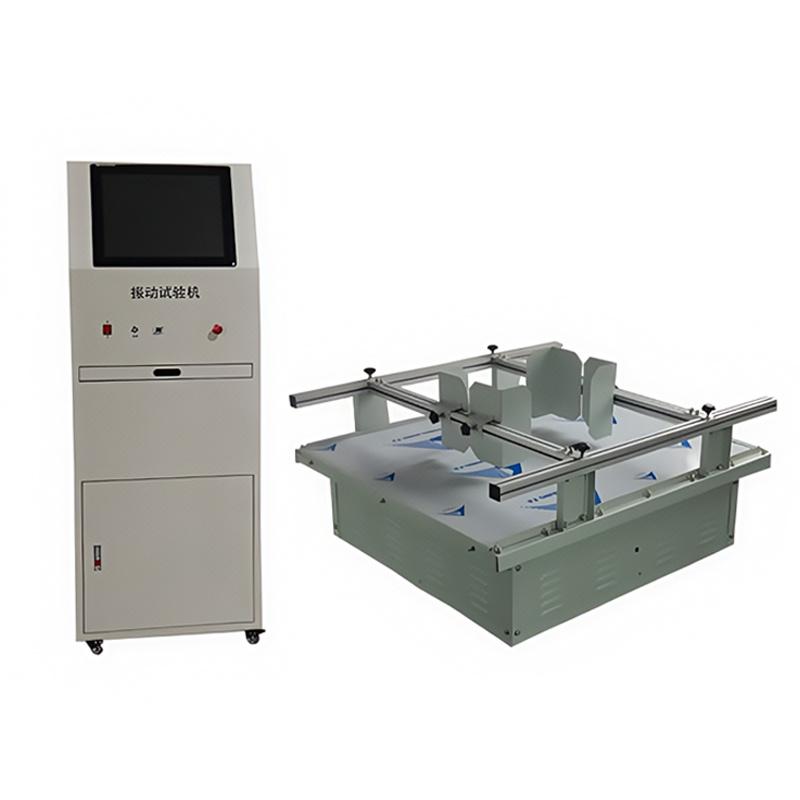

Gravity Dongke RT-S100L vibration testing machine, simulated automobile transportation testing machine, including computer

RT-S100L

Vibration testing machine

The maximum test load is 100kg, the frequency modulation range is 1.25Hz, the Speed range is 100~ 300rpm, the maximum Acceleration is 13m/s ², the displacement amplitude is 25.4mm, the vibration waveform is sine wave, the vibration axis is rotary vibration, the excitation mode is motor excitation, and the Cooling mode is air-cooled.

Introduction

The simulated automobile transportation vibration test series is widely used in national defense, aerospace, communications, electronics, automobiles, household appliances and other industries. This type of equipment is used to find early faults, simulate actual Operating Conditions assessment and structural strength test, and the product has a wide range of applications, wide application area, remarkable test effect and reliability.

Features and Benefits:

• Humanized operation and control, using professional measurement and control software control, so that the equipment works more stable and reliable

• The whole machine is made of composite industrial materials, precision machining, and ultra-quiet

• It has a safe and reliable protection function

• The table body is cooled by a high-efficiency and low-noise fan to ensure long-term continuous operation

• Using the principle of closed-loop control (negative feedback control), the sensor automatically controls the shaker after acquisition to ensure the output and test accuracy

• It has constant vibration amplitude vibration and constant acceleration vibration

• The system is equipped with vibration sensors to collect accelerometer, rotational speed and frequency values in real time

• Humanized operation and control, using professional measurement and control software control, so that the equipment works more stable and reliable

• Simulation tests of II., III., IV. road, sea and air transport in accordance with countries around the world

• Pavement simulation mode to adapt to the testing requirements of different industries

• The load capacity is large, the anti-eccentric load capacity is strong, and the amplitude is not affected by the load

• It has the function of gyratory super strength detection and function

• Strong anti-interference ability

• High-precision frequency output, synchronous excitation, uniform table vibration

• It conforms to European and American ISTA and national GB/T transportation standards

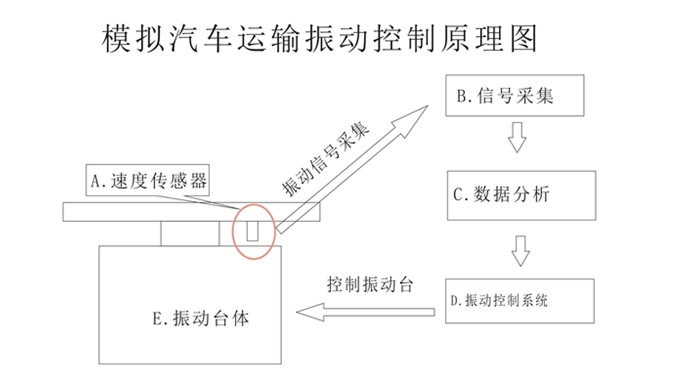

Schematic diagram of a simulated automobile transport testing machine

Packing list：Host X1, manual X1, certificate X1, warranty card X1, simple fixture X1, power cord X1, control cable X1, U disk X1, computer (computer host + monitor + keyboard and mouse set) X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
