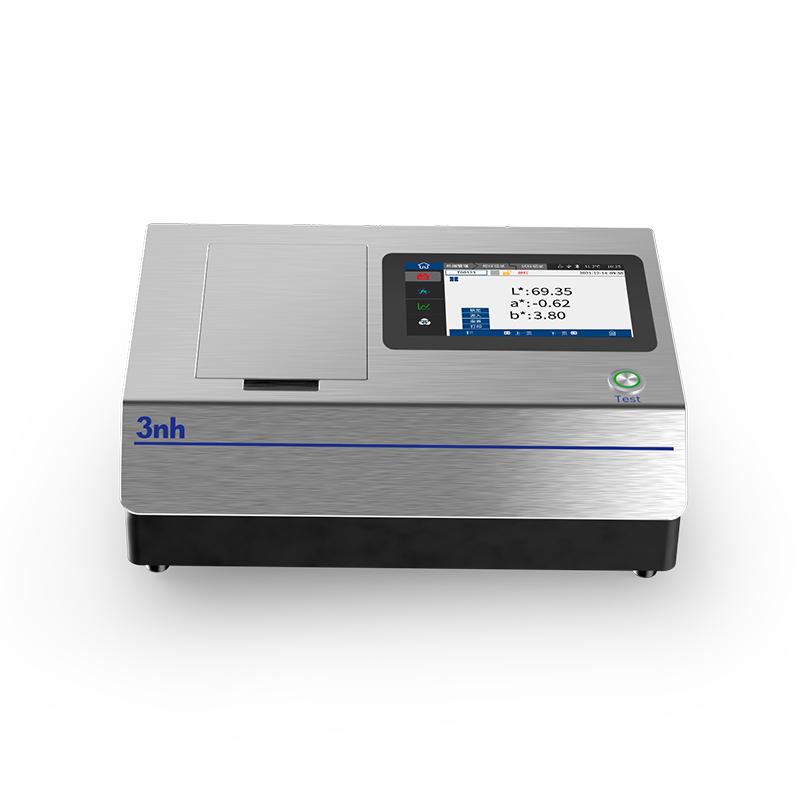

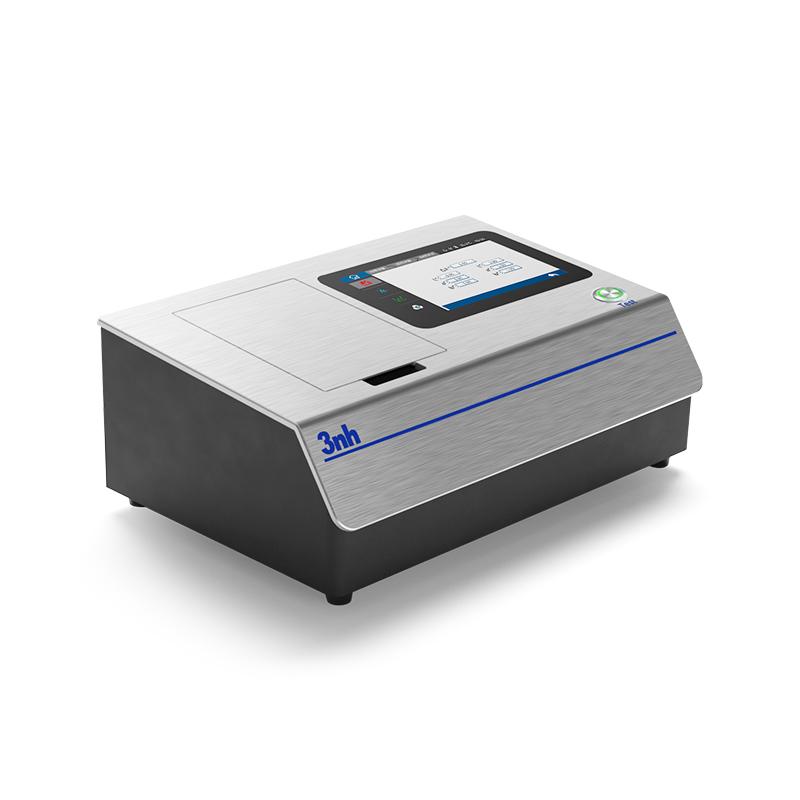

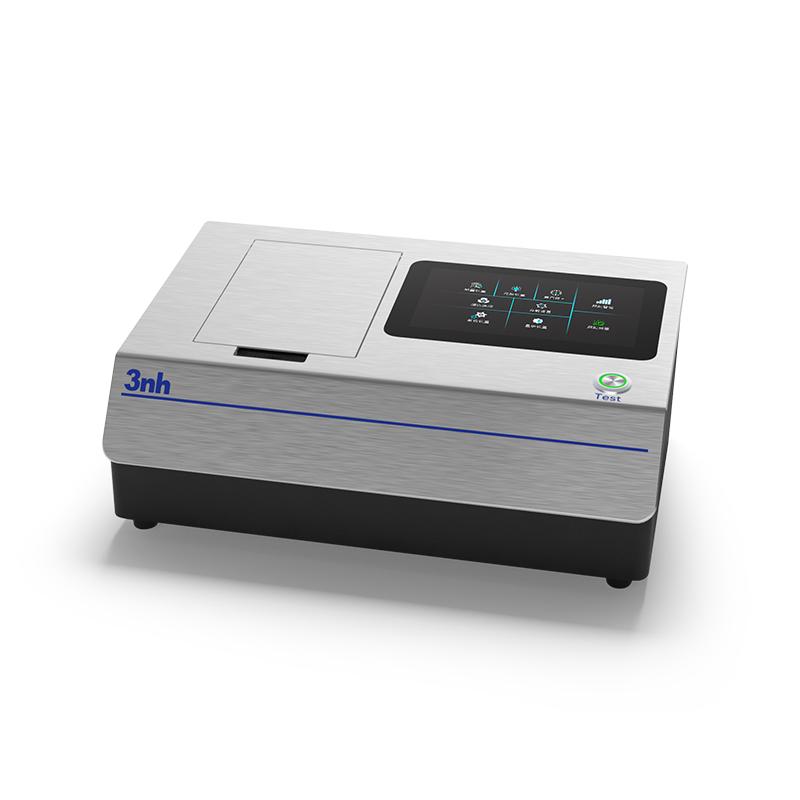

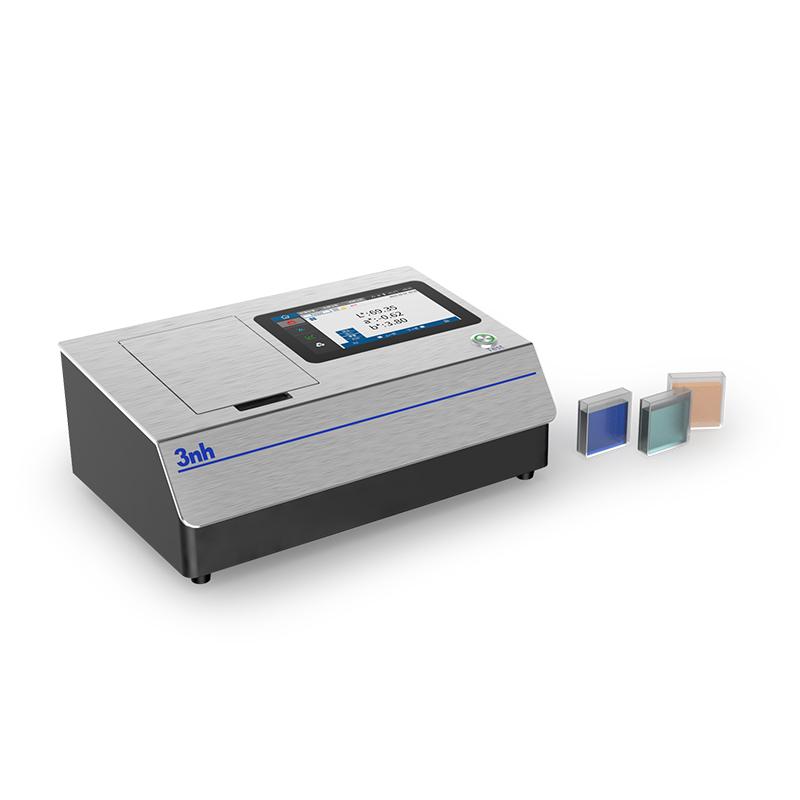

3NH TS4010 Liquid Colorimeter

TS4010

Liquid Colorimeter

Integrating sphere size φ 40mm, Illumination Light source combination Full Light spectrum LED Light source, spectroscopic mode Plane grating spectroscopy, measurement Wavelength range 360-780nm, wavelength interval 10nm, half Bandwidth 5nm, transmittance measurement range 0~200%, observer angle 2 °/10 °.

Introduction

The liquid Colorimeter TS4010 is a high-precision color analyzer designed for liquid colorimetric measurements. With a D/0 optical structure, a full-band LED light source and a high-performance test system, the TS4010 liquid Colorimeter can quickly and accurately capture the transmitted color of a sample and deeply interpret its subtle color properties. It is widely used in various solvents, pharmaceuticals, petroleum, industrial oils, cosmetics, food and beverages and other fields.

Features

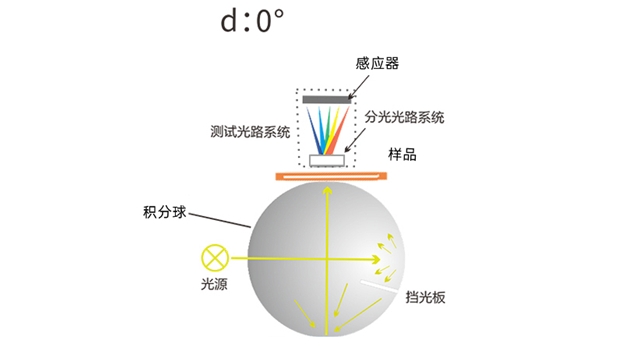

D/0 geometrical optical structure

The D/0 geometrical optical structure can provide more comprehensive color analysis to ensure that the quality of your products meets the standards: GB/T 3978, GB/T 18833, GB 2893 ASTM D1003/1044, CIE No.15, ASTM E308, DIN5033 Teil7

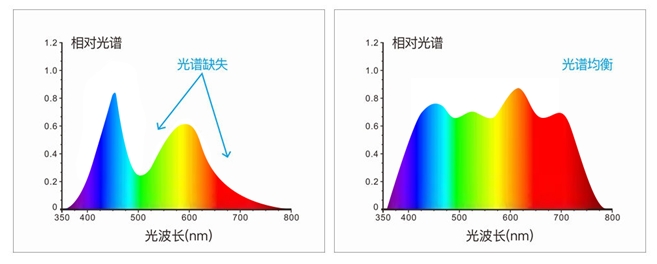

Combined full-spectrum LED light source

The combined full-spectrum LED light source is used as the illumination light source, covering the Wavelength range of 360~780nm, which ensures the high stability of the test.

High-performance dual-array sensors

It is equipped with a high-performance silicon photodiode dual 40 array sensor to ensure measurement speed and accuracy, and improve work efficiency.

Repeatability and interstage differences

The repeatability of spectroscopic transmittance is within 0.05%, the chromaticity value is within 0.015, and the difference between stages is less than 0.25, which ensures a high degree of consistency in the measurement results between multiple devices and escorts the quality control in large-scale production.

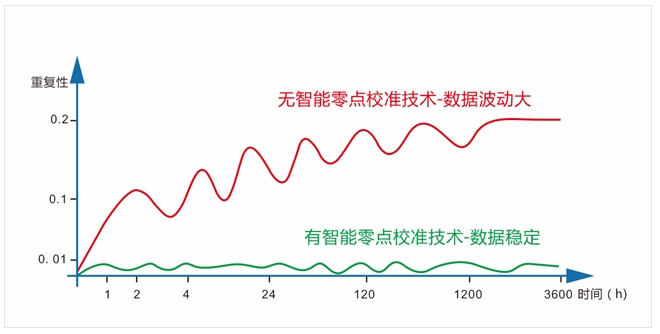

Intelligent zero point calibration

The intelligent zero point calibration technology is adopted to reduce the influence of external interference, adapt to different measurement environments, and ensure the accuracy and reliability of measurement data.

Multi-light simulation

A range of standard light sources approved by international lighting committees are built to ensure that your products can accurately measure color under different light sources.

Rich chromaticity indicators

In addition to the commonly used color index measurements, it can also provide transmittance, petroleum color scale (ASTM D1500), platinum cobalt index, Gardner index, Saybolt (Seibert index), pharmacopoeia (Chinese Pharmacopoeia, European Pharmacopoeia, United States Pharmacopoeia), EBC (beer color), ICUMSA Color (sugar color) and other color indicators to meet the needs of diverse industries.

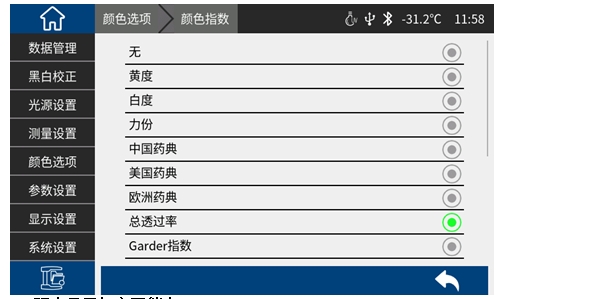

Powerful display and interaction capabilities

Equipped with a 7-inch true color capacitive touch screen, large-screen navigation operation, it can display a variety of chromaticity indicators such as spectrogram, color difference value/graph, color simulation and color bias, and achieve fast and accurate color analysis and judgment.

PC quality management software

Provide powerful analysis software, suitable for quality management in various industries, and generate test reports from users' test results to facilitate customer customization and management.

Areas of application

The instrument is widely used in various solvents, pharmaceuticals, petroleum, industrial oils, cosmetics, food and beverage and other fields. It is also widely used in color analysis and transmittance testing in glass processing, plastic processing, film, display processing, packaging industry, liquid chemical analysis and other industries.

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
