BENTING CSX2-9-17T high temperature box type resistance furnace muffle furnace

Volume 12L, Rated power 9kw, the fastest heating speed 10 ℃/min, heating element high quality silicon molybdenum rod, common temperature 1550 ℃, the highest temperature 1700 ℃, Temperature control mode 30 intelligent program control, temperature measurement element B type Thermocouple, thermostatic accuracy +/- 1 ℃, over-temperature alarm function.
$5512.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con

BenTing CSX2-9-17T High temperature box type resistance furnaceSPEC

BenTing CSX2-9-17T High temperature box type resistance furnaceDetails

BenTing CSX2-9-17T High temperature box type resistance furnacePacking list

SKU
NB049326
volume
12L
Rated power
9kw
heating rate
≤10℃/min
Heating the workpiece
silicon molybdenum rod
Common temperature
1550℃
maximum temperature
1700℃
Temperature control instrument
30-Segment intelligent program control
Temperature measuring element
Type B Thermocouple
Thermostatic accuracy
±1℃
Furnace material
High purity aluminum oxide polycrystalline fiber Curing Oven
Furnace door structure
side opening
Furnace size
300*200*200
Dimension
570*470*765mm
Power supply voltage
380V
Product features
Can quickly raise and cool, furnace temperature field balance. Temperature control is stable, easy to operate, low energy consumption
function
Over-current protection, break-even prompt, over-temperature alarm function
main accessories
Asbestos gloves, crucibletong, Thermocouple
Optional accessories
Furnace, control software (can remotely monitor, modify heater status program Linear dispersion)
CSX2-9-17T
High temperature box type resistance furnace
Volume 12L, Rated power 9kw, the fastest heating speed 10 ℃/min, heating element high quality silicon molybdenum rod, common temperature 1550 ℃, the highest temperature 1700 ℃, Temperature control mode 30 intelligent program control, temperature measurement element B type Thermocouple, thermostatic accuracy +/- 1 ℃, over-temperature alarm function.

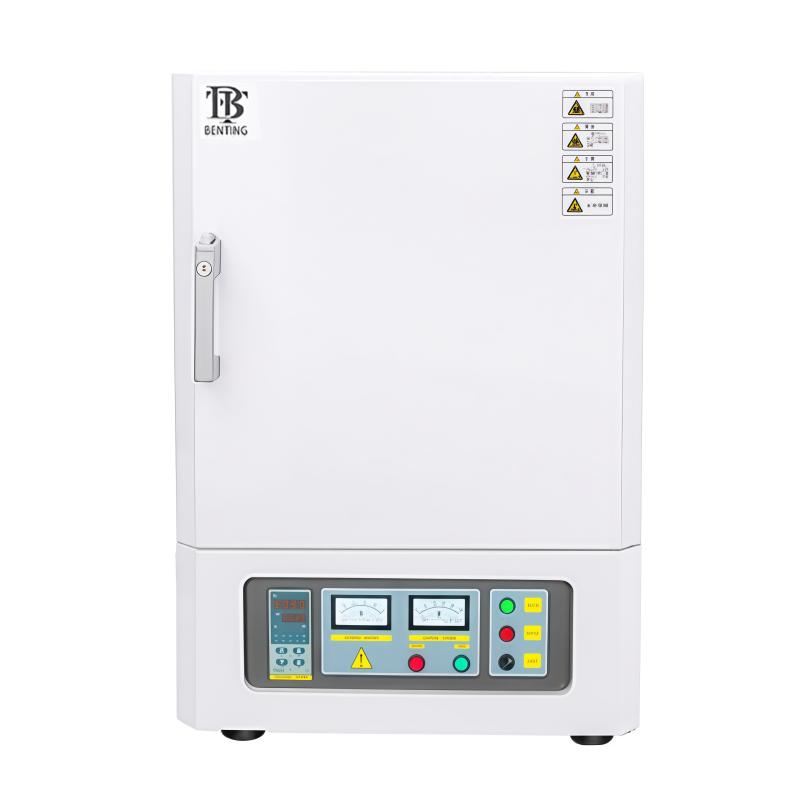

BENTING CSX2-9-17T high temperature box type resistance furnace muffle furnace Picture

Introduction

CSX2-9-17T high temperature chamber Resistance Furnace, volume 12L, rated power 9kw, using high-quality silicon-molybdenum rod as heating element, the fastest heating speed up to 10°C/min, the common temperature 1550°C, the maximum temperature up to 1700°C. The temperature control mode is 30 stages of intelligent program control, with B-type thermocouples, and the constant temperature accuracy is ±1°C. Equipped with high-purity alumina polycrystalline fiber curing furnace, good thermal insulation performance and energy saving, side-opening furnace door design, furnace size 300200200mm. It has the characteristics of rapid temperature rise and fall, temperature field balance, stable temperature control, easy operation, low energy consumption, and has functions such as overcurrent protection, couple break prompt, and over-temperature alarm. The product is equipped with asbestos gloves, crucible pliers, thermocouples as standard, and can also be equipped with a grate frame and control software to realize remote monitoring and modification of the status program curve of the electric furnace to meet the needs of diverse high-temperature experiments.

Features

  • Integrated design, light and compact structure.

  • According to the size of the furnace, three-sided heating is selected to ensure that the temperature in the furnace is uniform.

  • The furnace is made of lightweight ceramic fiber molding and insulation, which greatly saves energy compared with the traditional muffle furnace;

  • The furnace body is beautiful in shape, and adopts a double-layer air-cooled structure inside and outside, so that when the furnace works at high temperature, the surface of the furnace shell is kept low to avoid damage to the operator.

  • Parallel side-opening furnace doors keep the hot end away from the operation.

  • Open the door and cut off the power, and the power recovery delay to ensure safety.

FAQ
QOur laboratory often needs to program the temperature to do material heat treatment, and the temperature control should be accurate. What is a suitable furnace?
A CSX2-9-17T supports 30-stage program temperature control, thermostatic accuracy +/- 1 ℃, B-type Thermocouple temperature measurement standard, which can meet the multi-stage heating and thermal insulation requirements of material heat treatment. The side-open furnace door design is also safer, which is convenient for you to operate frequently.
QHow about the safety function of this furnace? We are worried about the risk of high temperature operation.
A This furnace has a comprehensive safety design: it has automatic power failure when opening the door, overcurrent protection, over-temperature alarm and broken couple prompt functions. The furnace body adopts a double-decked air-cooled structure with a low surface temperature to avoid burns. The side-opening door also keeps the heat source away from the operator, making it more secure to use.
QI want to do a high temperature material sintering experiment, the maximum temperature needs 1600 ℃, do you have a suitable box furnace recommendation?
A You can use the BENTING CSX2-9-17T high temperature box type resistance furnace. This maximum temperature can reach 1700 ° C, which fully meets your experimental needs of 1600 ° C. It uses silicon molybdenum rod heating, which has fast heating and uniform temperature field, making it suitable for high temperature experiments such as material sintering.
QOur laboratory space is limited, we need a small but good performance high temperature furnace, what suggestions?
A CSX2-9-17T is very suitable. With an integrated compact design, the Dimension is only 570 * 470 * 765mm, and the footprint is small but the volume is 12L. The side open furnace door design is also very space-saving, suitable for laboratory use with limited space.
