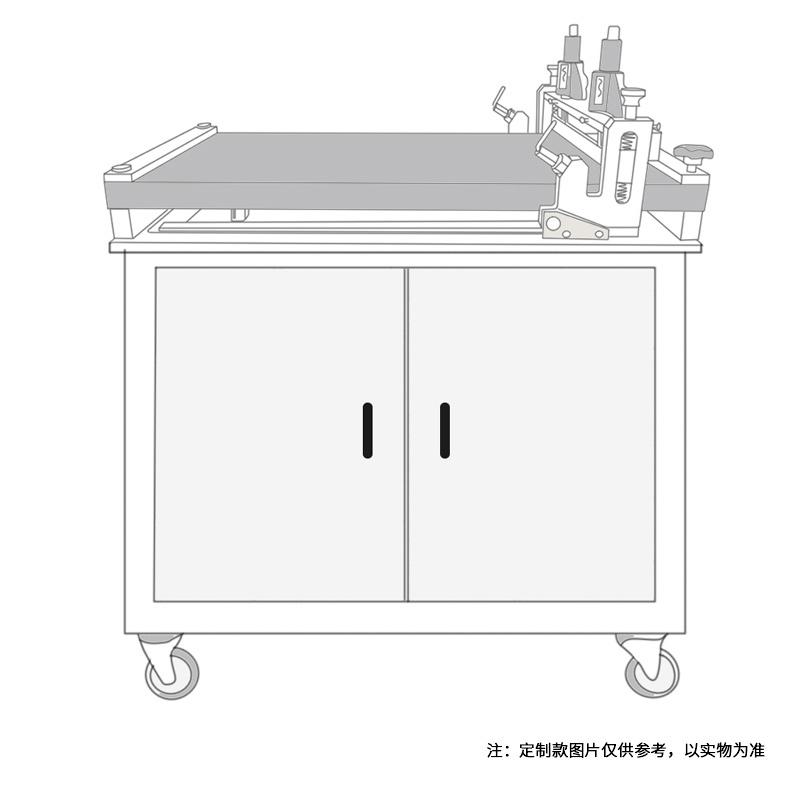

Factory direct sales RVC-1000/D drawdown Bar & blade Vacuum chuck coater (floor type) Effective area: 1200 * 1000mm
SE
RVC-1000/D
Factory RVC-1000/D Drawdown Bar & blade Vacuum chuck coater (floor type)SPEC
Factory RVC-1000/D Drawdown Bar & blade Vacuum chuck coater (floor type)Details
Factory RVC-1000/D Drawdown Bar & blade Vacuum chuck coater (floor type)Packing list
- SKU
- NB049355
- Coating Method
- Bar + Drawdown blade
- Coating Speed
- 1~ 300Mm/s stepless speed regulation (can be customized)
- Substrate clamping method
- Vacuum chuck + fixture
- Coating table material
- SUS630, abrasive steel
- Coating table size
- 1440*1030mm
- Effective coating Area
- 1200 * 1000Mm (can be customized)
- Meyer rod coating thickness Range
- Different bar numbers have different thicknesses, with high-precision imported bars
- Meyer rod coating Accuracy
- ±0.005mm
- Drawdown blade Coating thickness range
- 0.1~ 10Mm (clamshell design is easy to clean)
- Drawdown blade material
- Die steel
- Drawdown blade application width
- 1000mm
- Drawdown blade Spreader Accuracy
- ±0.005mm
- Vacuum chuck size
- 1280 * 960Mm (can be customized)
- Vacuum Aperture
- Φ0.8-1.2mm
- Vacuum hole pitch
- 20*20mm
- Pumping Speed
- 5.4m3/h
- Ultimate Vacuum
- 50KPa
- Vacuum Pump Power
- 180W
- Vacuum pump Weight
- 7.1kg
- Power
- 600w
- Operating language
- Chinese (can be customized in English)
- Display
- Color LCD touch screen
- Host Power Supply
- 100V~220V/50~60HZ
- Dimension
- 1460 * 1140 * 940Mm (subject to the actual product)
- structural composition
- It is welded by square tube + iron plate, and SUS304 is used for the outer shield.
- rack Countertop
- Material: 45 #surface chrome plating
Introduction
The RVC-1000/D Linear Rod Scraper Vacuum Adsorption Coating Machine (Floor Type) is a factory-supplied equipment designed for efficient and precise coating operations. The effective coating area of the equipment is 1200*1000mm, and the composite coating method of wire rod + scraper, combined with the substrate fixation mode of vacuum adsorption + fixture, is suitable for the coating production of a variety of materials. It has the function of stepless speed regulation of 1~300mm/s, which can flexibly adjust the coating rate according to different process requirements, and is widely used in scientific research experiments and industrial production scenarios.
Features
Fusion of wire rod and scraper dual coating method, wire rod coating accuracy up to ±0.005mm, micron-level fine coating can be realized; The doctor blade coating thickness ranges from 0.1 to 10 mm, the accuracy is also maintained at ±0.005 mm, and the flap design is easy to clean quickly, taking into account high precision and high efficiency.
The substrate fixing mode combining vacuum adsorption and fixture is adopted, the vacuum adsorption size is 1280*960mm, and the well-designed vacuum pore size and aperture spacing are used to firmly fix the substrate, eliminate displacement during the coating process, and ensure the stable coating quality.
Key parameters such as coating rate, effective coating area, vacuum adsorption size and other key parameters can be customized, 100V - 220V/50 - 60HZ wide Voltage input adapts to different power environments, and the operating language supports Chinese and English switching, fully meeting diversified production needs.
The coating table is made of SUS630 and abrasive steel, the frame table is chrome-plated with 45# steel, and the outer shield is made of SUS304 stainless steel, which is corrosion-resistant, wear-resistant, and prolongs the service life of the equipment.
Equipped with a color LCD touch screen, the operation interface is simple and intuitive, which lowers the threshold of operation, and novices can also get started quickly, improving the convenience of production operation.
