LINSHANG LS138 UV energy meter (UV Energy Meter)

Power measurement range 0~2000 mW/cm2, power resolution 0.01 mW/cm2, power data storage interval 32 times/second, energy measurement range 0~999999mJ/cm2, temperature measurement range -55 ° C~ + 125 ° C, temperature data storage interval 2 times/second
$941.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con OI

LinShang LS138 UV Energy MeterSPEC

LinShang LS138 UV Energy MeterDetails

LinShang LS138 UV Energy MeterPacking list

SKU
NB049364
Light spectrum range
UVC：230nm-280nm λp = 254nmUVB：280nm-315nm λp = 310nmUVA：315nm-400nm λp = 365nmUVV：395nm-445nm λp = 420nm
Power Measurement Range
0 ~ 2000 mW/cm2
Power resolution
0.01 mW/cm2
Power data storage interval
32 times/second
Energy Measurement Range
0 ~ 999999mJ/cm2
Energy measurement Accuracy (H is the standard value)
H < 5mW/cm2: +/- 0.5mW/cm2H > = 5mW/cm2: +/- 10% H, +/- 5% H Typical
Temperature Measurement Range
-55°C ~ +125°C
Temperature data storage interval
2 times/second
Sampling speed
2048 times/second
recording period
32 minutes
show
240 * 160 point matrix LCD
instrument size
Diameter 120mm * Film thickness 13mm
instrument Weight
About 248g
operating power consumption
117mW
Operating Current
39mA
Instrument Power Supply
2 AAA alkaline dry batteries
supply Voltage
DC 3V
LS138
UV Energy Meter
Power measurement range 0~2000 mW/cm2, power resolution 0.01 mW/cm2, power data storage interval 32 times/second, energy measurement range 0~999999mJ/cm2, temperature measurement range -55 ° C~ + 125 ° C, temperature data storage interval 2 times/second

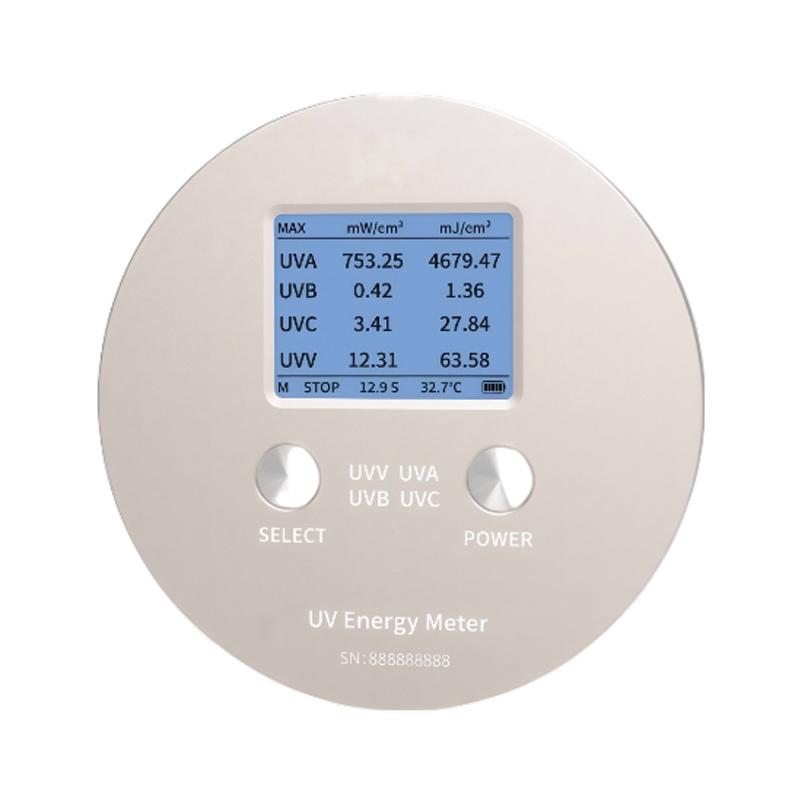

LINSHANG LS138 UV energy meter (UV Energy Meter) Picture

Introduction

This UV Energy Meter can measure UV energy, UV intensity and temperature at the same time, and is suitable for UV energy, intensity and temperature detection of UV curing machines, UV dryers, mobile phone UV coating machines, exposure machines, printing machines and other equipment. The instrument is suitable for measuring ultraviolet intensity and energy in light sources such as high-pressure mercury lamps, halogen lamps, etc.

The products meet the standards

JJG 879-2015 V. R. of Ultraviolet Radiation Illuminance Meter

QBT 2826-2017 National Standard for Offset UV Curable Inks

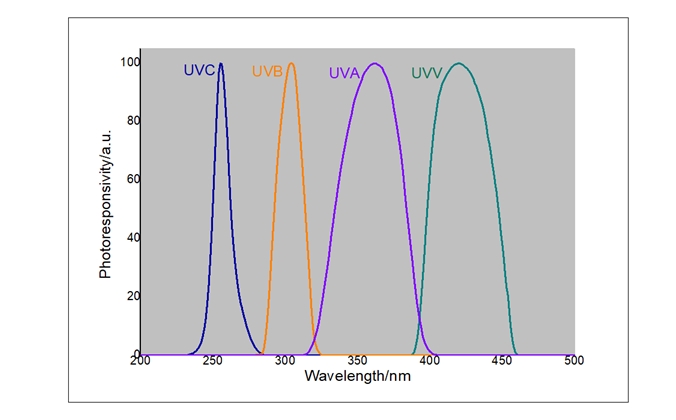

Spectral response curve of the product

Details of the LS138 UV Energy Meter in Linshang Figure 1

Features

1. The instrument measures the ultraviolet power and energy of the four bands of UVA, UVB, UVC, UVV at the same time.

2. Real intelligent ultraviolet energy meter, large liquid crystal directly displays temperature and intensity curve.

3. USB interface, support computer software to read detailed record data, generate data curves and print out test reports.

4. High-precision and fast-response temperature Detector to dynamically measure the actual temperature in the curing machine.

5. High temperature resistant design, can run in the environment of 100 degrees Celsius for a long time.

6. The instrument has a built-in large-capacity memory, which can record up to 60,000 power data and 3800 temperature data.

7. The stored data will not be lost when the power is off, and the last test data will be automatically displayed when the power is turned on.

8. Built-in timer, which can accurately record the length of UV curing time.

FAQ
QWe do mobile phone UV coating, need to measure ultraviolet strength and energy, choose which instrument?
A The recommended LINSHANG LS138 UV energy meter is designed for applications such as mobile phone UV coatings. It can accurately measure UV intensity and energy, and has a built-in temperature detector to help monitor the curing process. The instrument is resistant to high temperatures and can work in a 100 ° C environment for a long time, ensuring stable and reliable data.
QI want to test the UV energy and temperature of the UV curing machine, what instrument should I use?
A The LS138 UV energy meter can simultaneously measure UV energy, intensity and temperature, and is suitable for equipment such as curing machines. It can fully monitor the curing process and ensure product mass.
QNeed to record a large amount of UV Power data and generate reports, which instrument is better?
A Choose LS138, it has built-in large-capacity memory, can record 60,000 power data, and also supports USB connection computer software, which can directly generate data Linear dispersion and print test reports, which is very convenient.
QCan the UV energy meter of the excimer lamp be measured at 254nm?
A Sure
