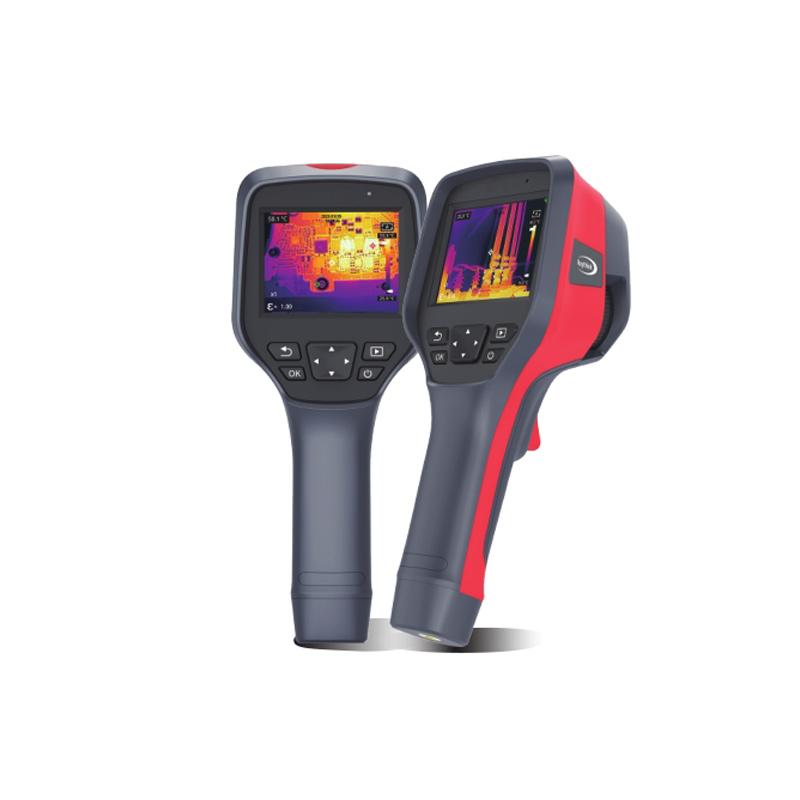

IPRE RM200F Handheld Thermal Imager
RM200F
Ipre RM200F Handheld Thermal ImagerSPEC
Ipre RM200F Handheld Thermal ImagerDetails
Ipre RM200F Handheld Thermal ImagerPacking list
- SKU
- NB049441
- Detector type
- 12UM Uncooled Infrared Detector
- Infrared resolution
- 256x192
- Response band
- 7.5-14um
- Thermal Sensitivity (NETD)
- <40mK (25°C,F1.0)
- frame rate
- 25Hz
- lens focal length
- 7mm
- Field of View (FOV)
- 24.8°x18.7°
- Spatial resolution (IFOV)
- 1.7lmrad
- Focusing method
- manual focusing
- Minimum imagery distance
- 0.2m
- Temperature Measurement Range
- -20°C~+150°C，100~550°C
- Temperature measurement Accuracy
- +/- 2 ° C or +/- 2% of the reading, whichever is greater
- Display
- 3.5 touch screen, resolution 640x480
- Visible light camera
- 2 million pixels
- Digital zoom
- 1x、2x、4X
- Color matching plate
- 10 kinds
- image mode
- Infrared, visible light, picture-in-picture, dual-light fusion
- warm and wide stretching
- Automatic/manual
- Storage media
- Standard 32GB Micro SD, maximum support 128G
- Text annotation
- support
- phonetic annotation
- support
- image naming
- Automatic/manual input naming; scan QR code naming
- communication protocol
- Wi-Fi USB
- Laser pointer
- support
- Cloud as a Service
- Support cloud disk storage; support automatic time synchronization
- video transmission
- Support UVC video transmission
- Battery
- Rechargeable lithium battery, removable
- Charging method
- USB Type-C or seat charger
- battery life
- About 8h (about 4h for a single battery)
- external interface
- USB Type-C, SD Card
- tripod interface
- Support UNC 1/4-20 interface connection tripod
- Operating temperature
- -10°C~+50°C
- Operating humidity
- 10%~ 95% (non-condensing)
- Storage temperature
- -20°C~+60°C
- Protection level
- IP54
- Impact vibration
- Impact 25g (IEC60068-2-27); Vibration 2.5g (IEC60068-2-6)
- Device-side analysis capabilities
- Custom point/line/area temperature measurement; supports up to 10 points, 10 areas, 10 lines; center point/cold hot spot tracking and temperature display
- companion software
- PC terminal (infrared analysis software)
- Weight and size
- About 660g, 258.4x105.1x102.3mm
- certification
- CE/ROHS/metrology authentication, etc
Introduction
RM200F is equipped with a self-developed 12μm high thermal sensitivity 256×192 infrared thermal imaging core, with intelligent and accurate temperature measurement algorithms, high-definition image algorithms, and cloud services, and strives to provide professional infrared thermal imaging tools with high-definition images, large-screen display, and accurate temperature measurement for electrical maintenance and circuit design.
Features
Powerful core, clear imaging
Equipped with 256×192 self-developed uncooled infrared Detector
The thermal sensitivity is 40mK, and the minimum temperature difference of 0.04°C can be resolved to capture small cold and hot spots
The wide temperature measurement range of -20°C~+550°C provides support for monitoring more temperature targets
The software is fully functional
Manually adjust the temperature width stretch to solve the needs of multiple scenarios and multi-uses
Support a variety of image modes + a variety of false color to meet the temperature detection needs under different requirements
Support PC software analysis
Hardcore configuration
Equipped with a 3.5-inch touchscreen, it supports center point, hot and cold spot tracking and temperature display
IP54 protection level, 2m drop proof
It is equipped with 2 quick-release batteries as standard, and the battery life is up to 8h

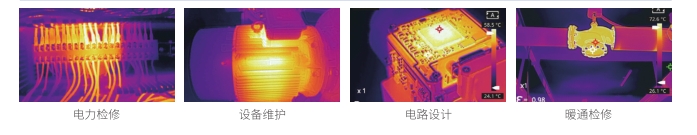

Application
