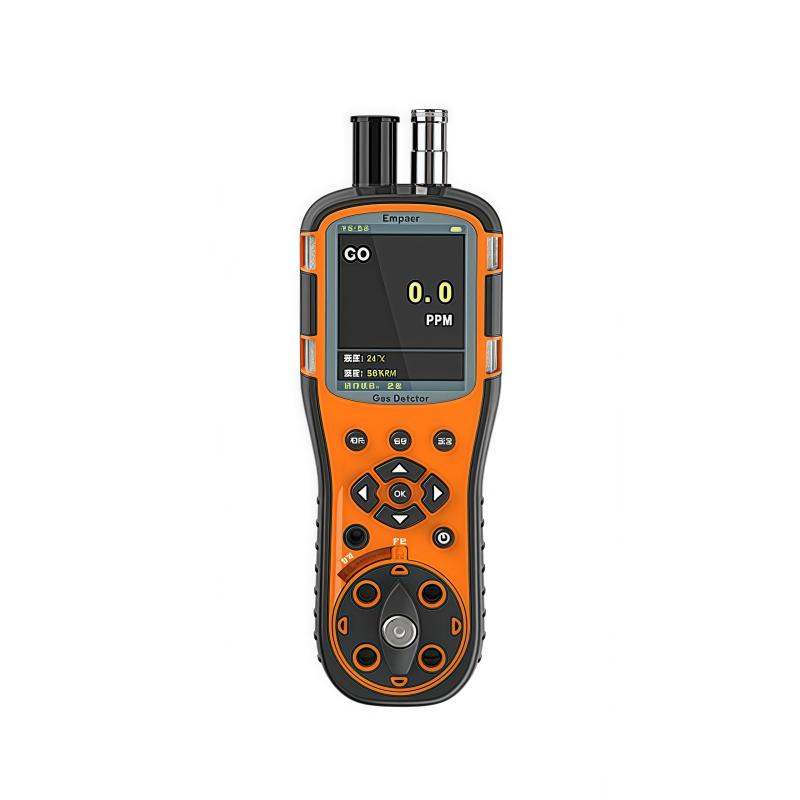

Empaer AAZZ (EX, H2S, CO, CO2) Extreme series handheld quadruple compound Gas Detector
SE
AAZZ（EX、H2S、CO、CO2）
Empaer AAZZ（EX、H2S、CO、CO2） Supreme Series Handheld Quad Composite Gas DetectorSPEC
Empaer AAZZ（EX、H2S、CO、CO2） Supreme Series Handheld Quad Composite Gas DetectorDetails
Empaer AAZZ（EX、H2S、CO、CO2） Supreme Series Handheld Quad Composite Gas DetectorPacking list
- SKU
- NB049534
- Detect gas
- EX, H2S, CO, CO2 (any combination of less than 4 kinds of 600 kinds of gases)
- number of detection parameters
- 1-4 kinds
- Detection principle
- Semiconductor, catalytic combustion, infrared, electrochemistry, PID photoion, thermal conductivity, etc.;
- Range
- See the list of detectable gases or call us!
- resolution
- ≤ full scale * one thousandth (consult the customer service of the mall);
- testing unit
- ppm, ppb, pphm, mg/m3, LEL%, VOL% (partially switchable);
- Response time
- T90 ≤ national standard
- error of indication
- 3%FS
- Repeatability
- 1%
- Display
- High definition 2.8 inch color screen, 320 * 240 resolution, support no backlight display;
- system language
- Chinese/English, can be switched.
- Adoption method
- Compatible with diffusion type and built-in air pump suction type, the two modes are easy to switch;
- Temperature detection
- without
- temperature compensation
- without
- Communication interface
- MICRO USB
- Wireless signal output
- Optional 4G, NB-IOT, WIFI, LORA, Bluetooth (optional);
- Alarm function
- Buzzer, LED light alarm, screen flash alarm, vibration alarm;
- Fall alarm
- Yes (optional)
- Remote visual alarm
- Remote visibility of each detection parameter separate light alarm function;
- Operation mode
- Key operation (3), remote IoT operation;
- IoT manipulation
- Remote parameter configuration and program upgrade can be carried out through NB-IoT, 4G or WIFI networking.
- How to use
- Handheld, neck-mounted;
- automatic calibration
- Zero automatic correction function;
- calibration period
- 1 year (recommended)
- Data storage
- Detection data > 100000; Alarm record data: 1000
- Explosion-proof level
- Intrinsically safe explosion protection: Ex ia IIC T4 Ga
- Protection level
- IP65
- anti-electromagnetic interference
- national standard
- anti-cross gas interference
- weak
- Battery
- 3500MAh lithium battery; Charging time: < 5 hours; Operating Voltage: 7-4.2 V;
- battery life
- 12 hours < working battery life < 50 hours (determined by Sampling method and Sensors principle);
- Environmental temperature
- -40~55℃
- Storage temperature
- -10~30℃
- Working pressure
- 80-120KPA
- service life
- Sensors: determined by the detection principle; Miscellaneous components ≥ 5 years
- Attenuation performance
- standard
- reference certification
- Intrinsically safe explosion-proof, Measurement equipment CPA, CCCF, IP65 protection, mine safety, coal safety, ROSH, SIL2, CE, ATEX, IEC
- Weight
- About 760g
- Shell Color
- Amber + off-white
- Product size
- About 200 * 75 * 47mm
- Production process
- Standard process
- shell material
- Shell material: PC plus TPU soft glue, anti-skid, anti-drop, anti-off hand;
- Environmental humidity
- 0% -95% RH (no condensation)
Product Description:
The Supreme Series Handheld Quadruple Gas Detector is a high-end Gas Detector for on-site detection of gas leaks and certain special purposes. This series of products are divided into general models and special models, and the special models are professionally customized based on customer application scenarios and needs, and the products are more professional and reliable. The product can support the detection of up to 4 gases at the same time, and in terms of functions, in addition to being compatible with pump suction or diffusion sampling methods, it also has powerful functions such as photography, videography, lighting, multi-mode alarm, and wireless networking. It is a high-end Gas Detector that integrates high-tech, IoT support, humanized operation concept and a variety of technical resources. The supreme series of handheld quadruple Gas Detectors are mainly suitable for petroleum and petrochemical, chemical, gas, metallurgy, electric power, aerospace, military industry, municipal, mineral, agriculture and new energy and other fields, and have been highly recognized and praised by users and friends for their super functions and performance.
Core features:
High-end, powerful, camera-friendly, lighting, simple switching of pump and diffusion sampling modes, network version of instruments and equipment, two-color mold anti-slip and anti-hand design;
Features
☆ Various types of detection gas combinations, supporting the simultaneous detection of any 4 gases in more than 600 gas types, or any combination within 4 types.
☆ Powerful functions, integrated on-site photo and video function; It has on-site proof function.
☆ Compatible with pump suction or diffusion two sampling modes at the same time, the switching of the two modes can be easily realized by only gearing, and there is no need to add an external pump when the pump suction mode works.
☆ Refer to a variety of industry standards at home and abroad (intrinsically safe explosion-proof, measuring instruments CPA, CCCF, mine safety certification, coal safety certification, IP65 protection, ROSH, SIL2, CE, ATEX and IEC, etc.), products are waterproof, dustproof, anti-slip, shockproof, anti-static, anti-electromagnetic interference, and strong anti-cross gas interference. It can be applied to a wide range of application scenarios and has more stable performance.
☆ Powerful alarm function. The alarm type includes sound and light alarm, vibration alarm, 10-meter distance cursor alarm, display alarm, and remote wireless output alarm; Support anti-fall alarm, over-alarm value alarm, fault alarm; The alarm value can be set, and the alarm value can be selected as low alarm, high alarm, interval alarm, weighted average alarm, etc.;
☆ High-definition 2.8-inch color screen, 320*240 resolution. It can display detection data, alarm information, time, temperature, humidity, storage, communication, power, charging status and other information, and the display information can still be seen without backlight;
☆ Large capacity data storage function. It can be equipped with different capacities of storage, which supports real-time storage, timed storage or only saving alarm concentration data and time, supporting local viewing and deletion of data, and the stored data can also be uploaded to the computer through USB, RS232 interface, wireless communication, etc., and the data can be stored and analyzed with the host computer software, and can also be printed.
☆ 3500mA large-capacity lithium battery; Charging time < 5 hours; Ultra-long standby up to 50 hours (in diffusion mode and depending on the type of detection gas);
☆ Support multiple types of wireless transmission (optional). Optional 4G, NB-IOT, WIFI, LORA, Bluetooth and other wireless signal outputs.
☆ The special Supreme series handheld quadruple Gas Detector can be equipped with an optional positioning function to record the path and real-time concentration taken by the detection and use, so that the inspection path can be tracked;
☆ Support remote IoT OTA, PC and other multi-mode software version upgrades and repairs, and the upgrade operation will not cause the user to lose the parameters set;
☆ With temperature detection, the sensor can be compensated for temperature (optional), and the instrument uses the temperature range of -40~55 degrees;
☆ Support bilingual in Chinese and English. The default Chinese interface has an interface use operation guide function, which is easier to start and has a user-friendly design.
