MITECH MUT680C digital ultrasonic flaw detection (UFD) instrument
MUT680C digital ultrasonic flaw detection (UFD) instrument
Model：
MUT680C
mitech MUT680C Digital ultrasonic flaw detection (UFD) instrumentSPEC
mitech MUT680C Digital ultrasonic flaw detection (UFD) instrumentDetails
mitech MUT680C Digital ultrasonic flaw detection (UFD) instrumentPacking list
- SKU
- NB049542
- Operating System
- Customized intelligent GUI embedded operating system, user-friendly design, a set of shortcut buttons, digital shuttle wheel, cross menu, a variety of operation modes in one, with detailed step prompts.
- Attenuator error
- Every 12dB +/- 1dB
- vertical linearity error
- ≤2.0%
- horizontal linearity error
- ≤0.1%
- dynamic range
- ≥36dB
- Flaw detection sensitivity margin
- > 65dB (200mm deep with 2 flat bottom holes)
- electrical noise level
- ≤8%
- Operating frequency range
- 0.5~ 20, 11 gears adjustable
- pulse Voltage
- 50~500 adjustable
- detection range
- 0~13000 (steel longitudinal wave)
- pulse shift
- -10~1000 (steel longitudinal wave)
- Probe zero
- 0 ~ 200
- material speed of sound
- 300 ~ 15000
- damping
- 25, 75, 200, 1000 four-speed adjustable
- inhibit
- 0 ~ 80
- Detection method
- Negative detection/Forward detection/Bidirectional detection/Filtering/RF
- Gain adjustment
- 0~110: 0.1/1/2/6 step adjustment
- network communication
- USB2.0 OTG interface supports direct reading and writing U disk; supports customized WIFI wireless transmission, which can be
- Flaw detection channel
- 2000 datasets, including instrument settings, inspection status, and echo patterns
- continuous video recording time
- 100 hours, support importing video files to the computer
- AWS D1.1/D1.5
- Calculate steel structure and bridge weld grades according to American Welding Society AWS D1. 1/1.5
- surface correction
- Correction of Depth and Horizontal Distance of Oblique Probe Pipe
- Crazing altimeter function
- Calculation of welding crazing height based on oblique probe end reflection method
- Gate expansion function
- Amplify the echo in the gate to the entire echo area
- DAC function
- For making, setting, and applying DAC Linear dispersions
- AVG function
- For fabricating, setting up, and applying AVG Linear dispersions
- screenshot function
- Save the instrument screen as a picture and output it to the USB stick.
- dynamic playback
- Internal/U disk, internal echo recording function for about 3 minutes, U disk can record unlimited
- dump function
- Transfer the internal data set of the instrument to the U disk through the USB interface
- gate
- Gate mode: off/incoming/loss/measurement
- Automatic gain function
- Make the echo amplitude in the gate automatically adjust to the specified amplitude
- Peak memory function
- Display waveform envelope
- Peak echo function
- Record the echo waveform containing the highest echo
- φ value calculation
- After the peak echo of the defect is found during the flaw detection of the straight probe forging, the equivalent size of the defect can be automatically calculated and displayed
- freeze function
- Freeze screen waveform
- Automatic correction function
- Used to correct the sound speed of the material and the zero point of the probe, the correction mode: sound speed + zero point/sound speed/zero point
- Angle measurement function
- For measurement of probe angle
- auto freeze
- The signal in the A/B gate automatically freezes when it exceeds the gate level
- Color coded B-scan
- Real-time scanning and cross-sectional display can display the shape of workpiece defects, making the detection results more intuitive
- Weld diagram
- Generates a schematic diagram of the weld, visually displaying the location of the weld defect and the echo path
- Display
- High luminance 5.7 Color TFT LCD, 640 × 480 pixels
- Operating Time
- ≥ 15 hours of continuous work without charging
- Remote cloud management
- Cloud management functions such as remote software upgrade
- Instrument performance self test
- It can automatically test the combined performance indicators of the instrument and probe (including: horizontal linear error, vertical linear error, resolution, dynamic range, sensitivity margin), and generate test reports.
- Swirling/spinning bracket
- The instrument has a swirl/spin bracket, which can be adjusted to obtain any Viewing Angle by adjusting the swirl/spin angle of the swirl/spin bracket for more convenient and comfortable control of the instrument
- Animation demonstration operation video
- A complete set of animation demonstration operation training videos is included, which is convenient for mastering the operation and use steps.
- Language version
- Chinese and English version
MUT680C

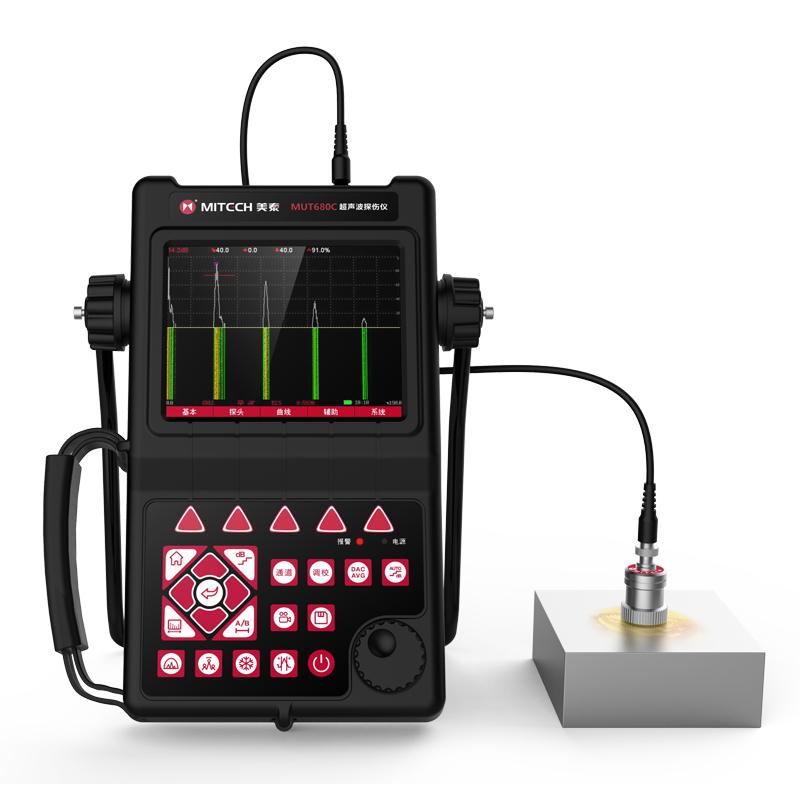

Digital ultrasonic flaw detection (UFD) instrument
Product Introduction
Mattel Instruments MUT680C Digital Ultrasonic Flaw Detector is equipped with a customized intelligent GUI embedded operating system, which supports a variety of user-friendly operation methods such as shortcut buttons, digital shuttle wheels and cross menus, and is equipped with step prompt function, excellent core performance parameters, attenuator error per 12dB±1dB, dynamic range ≥36dB, flaw detection sensitivity margin > 65dB (depth 200mmФ2 flat bottom hole), working frequency 0.5~20MHz 11 steps adjustable, detection range up to 0~13000mm (steel longitudinal wave); Functionally integrated USB2.0 OTG interface and customized WIFI wireless transmission, support 2000 sets of flaw detection channel data management and 100 hours of continuous recording, in line with AWS D1.1/D1.5 standard, with surface correction, crack altimetry, gate expansion, DAC/AVG curve and other professional flaw detection functions, supplemented by color-coded B-scan, weld diagram and other visual display, using 5.7-inch 640×480 pixel high-brightness color TFT screen, can work continuously for ≥ 15 hours, It supports remote cloud upgrade, instrument performance self-test, with rotating bracket and animation operation training videos, and provides a bilingual operation interface in Chinese and English, which is a professional non-destructive testing equipment integrating high performance, multi-function and easy operation.
