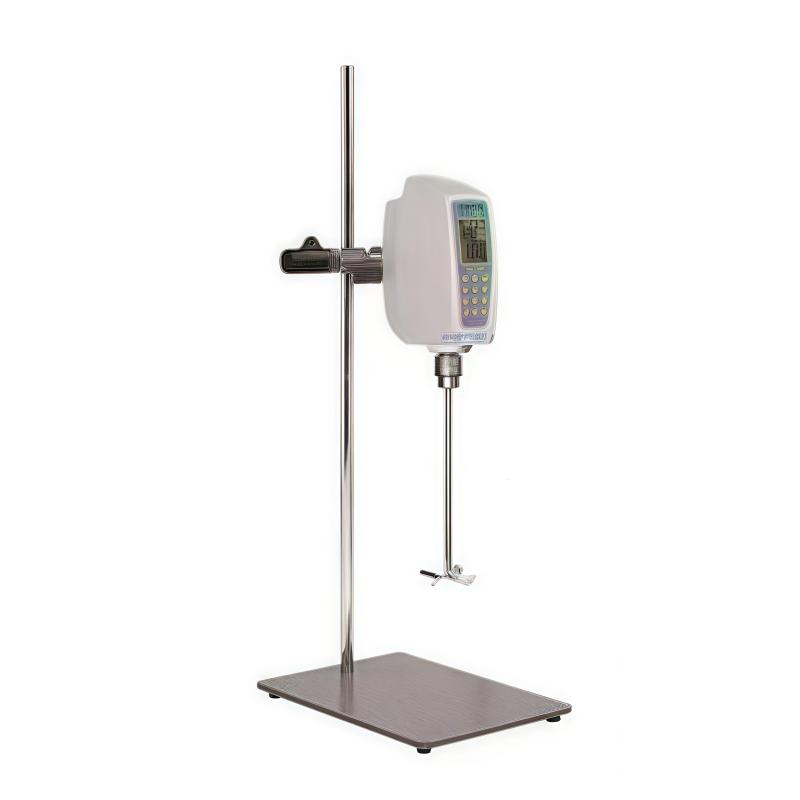

ANGNI AM110W-T Electronic Constant Speed Stirrer Processing capacity (H2O) 20L
AM110W-T
AN AM110W-T Electronic Constant Speed StirrerSPEC
AN AM110W-T Electronic Constant Speed StirrerDetails
AN AM110W-T Electronic Constant Speed StirrerPacking list
- SKU
- NB049604
- Rated Voltage
- AC100~240V
- Rated Frequency
- 50/60 Hz
- Input Power
- 162 W
- output power
- 110 W
- drive type
- Brushless DC Motor
- Output torque of stirring shaft
- 13.1 N.cm
- Output peak torque of stirring shaft
- 39 N.cm
- Duty Cycle
- S1 (continuous)
- Control mode
- Capacitive Touch Keyboard
- Rotation speed adjustment range
- 30~2000 rpm
- Rotation speed control type
- Promise
- Timer Range
- 1-6000 min
- Distance status display
- TFT
- Overload protection function
- Yes
- Rotation speed dynamic detection function
- Yes
- Rotation speed trend Linear dispersion function
- Yes
- Rotation speed memory function
- Yes
- Stirringrod fixing method
- Quick Collet (Material: 3Cr13 Stainless Steel)
- Rotary collet clamping range
- 2-10 mm
- Stirringrod penetration diameter (shutdown)
- 8 mm
- Impeller configuration
- 4-Blade Spiral Impeller (Material: SS 316L Stainless Steel)
- Processing Capacity (H2O)
- 20L
- stirring viscosity treatment
- 0-20000 mPa.s
- Environmental temperature
- Not more than 40 ° C
- Allowable Relative Humidity
- Not more than 80%
- Protection level
- IP40
- Dimensions of the whole machine
- 215x310x600 mm
- vertical Volume of the whole machine
- 7.6 kg
Overview
The electronic constant speed mixer is driven by a brushless DC motor, which is suitable for mixing and mixing low-to-medium and high-viscosity liquids in the laboratory. The structure of the machine is reasonable and compact, ultra-low noise, maintenance-free, the stirring speed is controlled by the microprocessor, which can timely and effectively compensate for the speed change caused by load changes and power supply Voltage fluctuations, and the constant speed is reliable. Built-in automatic overload protection device to ensure the safety of long-term high-load continuous operation of the experiment; The stirring speed is stepless adjusted, which can meet the adjustment of the stirring speed at any time in the experiment; The digital display setting and the actual output stirring speed ensure the intuitive collection of experimental data; The operation Timer Control ensures that the time of the experiment is effective and controllable, and the stirring speed is stable, which is competent for the stirring of high-viscosity media and slurry.
