Automatic Film Applicator RDH-12/650cl film width 650mm unwinding + comma scraping + infrared drying + comma scraping + infrared Drying Oven + air-cooled + winding
SESpreader process unwinding → comma scraping → infrared drying (8m oven, 2m sections * 4 → comma scraping → infrared Drying Oven (8m oven, 2m sections * 4) + air-cooled (1m) + winding, coating speed 1~ 10m/min, Spreader process unwinding → comma scraping → infrared drying (8m oven, 2m sections * 4 → comma scraping → infrared Drying Oven (8m oven, 2m sections * 4) + air-cooled (1m) + winding, coating speed 1~ 10m/min
$49817.00/set
PromotionLoading...
Coupon
Model：
Rdh-16/650cl
Factory
Factory Rdh-16/650cl Automatic Film ApplicatorSPEC
Factory Rdh-16/650cl Automatic Film ApplicatorDetails
Factory Rdh-16/650cl Automatic Film ApplicatorPacking list
- SKU
- NB049671
- Spreader process
- Unwinding → comma scraping → infrared drying (8m oven, 2m knots * 4 → comma scraping → infrared drying oven (8m oven, 2m knots * 4) + air-cooled (1m) + winding
- Coating Speed
- 1~10m/min
- Effective application width
- 100~ 650Mm adjustable
- Spreader thickness range
- 0.005-3mm
- maximum discharge
- 700mm
- Maximum charge
- 700mm
- Effective application width
- 650mm
- Drying Temperature range
- RT+~200℃
- Drying channel length
- 12m
- Total Power
- 45KW
- Power supply Voltage
- 380V
- rubber roller
- Heating temperature: RT +~ 200 ℃
- Type of coating applicator
- Drawdown blade Spreader
- Fit width
- Max.500mm
- Dimension
- 17000 * 850 * 1700mm (subject to actual customization)
- Weight
- Subject to actual customization
- trimming device
- √
- correction system
- √
- Traction device
- √
Rdh-16/650cl
Automatic Film Applicator
Spreader process unwinding → comma scraping → infrared drying (8m oven, 2m sections * 4 → comma scraping → infrared Drying Oven (8m oven, 2m sections * 4) + air-cooled (1m) + winding, coating speed 1~ 10m/min, Spreader process unwinding → comma scraping → infrared drying (8m oven, 2m sections * 4 → comma scraping → infrared Drying Oven (8m oven, 2m sections * 4) + air-cooled (1m) + winding, coating speed 1~ 10m/min
Product Introduction

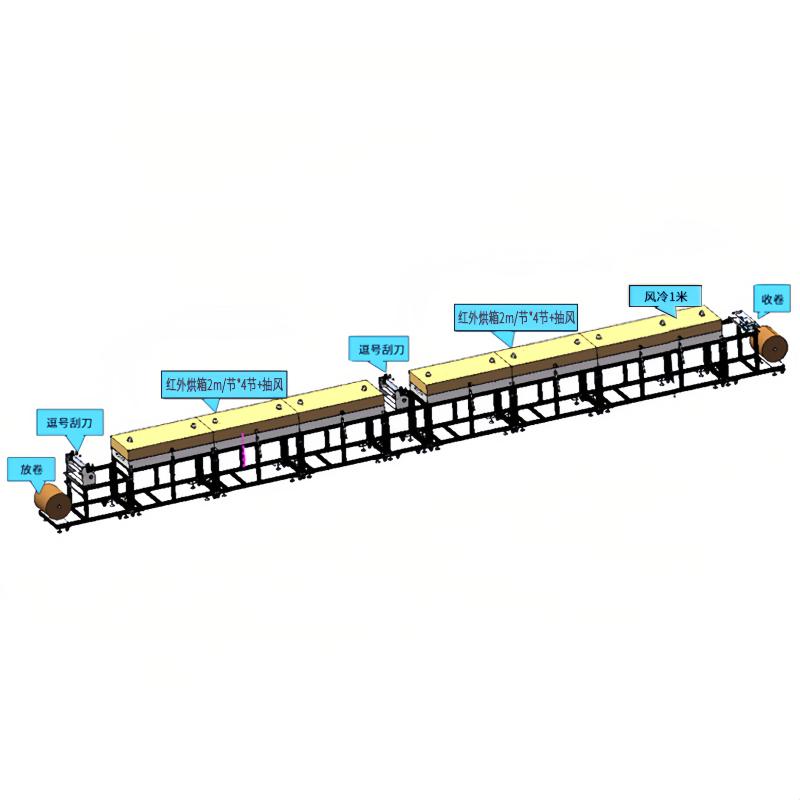

RDH-16/650CL large coil automatic coating machine coating program is:Unwinding → comma scraping → infrared drying (8m oven, 2m section * 4→ comma scraping → infrared Drying Oven (8m oven, 2m section * 4) + air cooling (1m) + windingThe heating temperature of the rubber roller is up to 200°C, which is suitable for hot melt adhesive coating film.

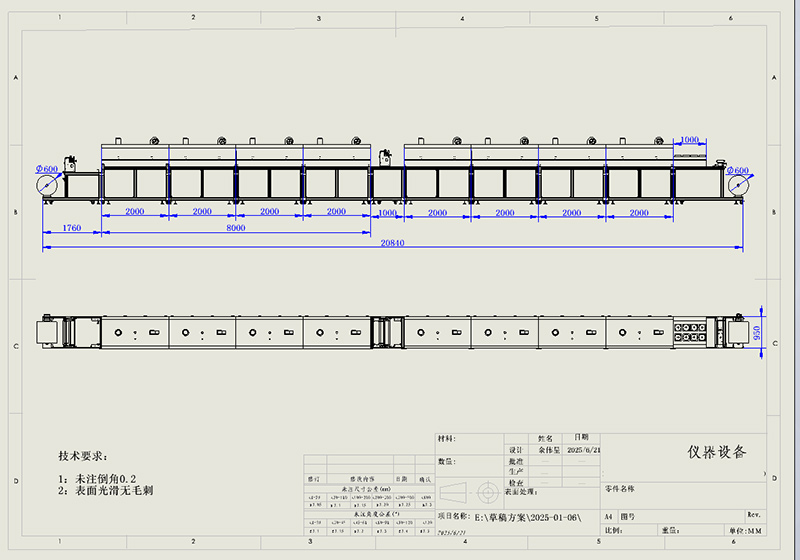

Coating program structure
FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
