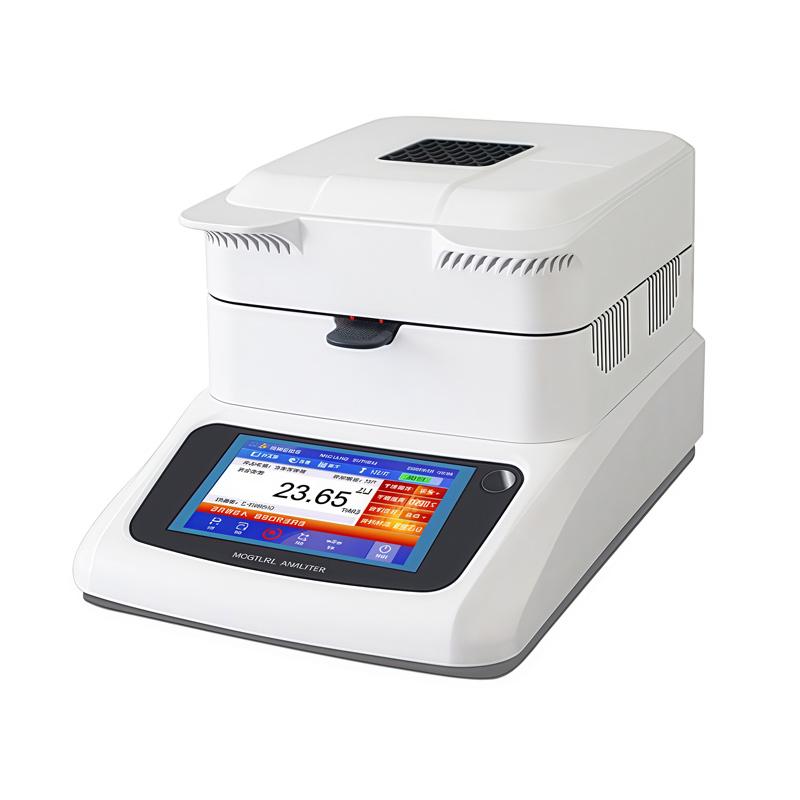

XIONGFA XFSFY-2201MA fast Moisture Meter

XFSFY-2201MA

Fast Moisture Meter

Weighing readability 0.001g, Weighing range 220g, moisture readability 0.01%, Sensors imported German HBM, heating source halogen lamp (ring 450w), sample disc diameter φ 90mm [stainless steel material], heating temperature range 40-200 ℃ (interval 1 ℃) (up to 230 ℃ can be customized)

Test principle

The moisture analyzer uses thermogravimetric method to determine the moisture content of a sample and consists of a weighing unit and a heating unit. It meets the quality control and production needs of the food, chemical and other industries. Customer benefits: Accurate results through precise weighing and temperature control; Intuitive operation with step-by-step user guides; The rugged construction ensures that the instrument is built to last

Test Scope

The moisture analyzer is suitable for research institutes, universities, laboratories, metrology institutes, enterprises and institutions, which are widely used in various industries such as plastic particles, food, sludge, tea, corn feed, battery powder, metal powder, dry goods, etc., to measure the solid content and moisture value of the sample input and rapid drying.

Key features:

• 5-inch programmable color touch screen, one interface directly displays moisture, solid content, test temperature and other information, built-in guided Chinese operation and voice prompts, operators can follow graphical guidance to complete the workflow step by step, and can adjust the sound volume or turn off directly according to personal habits

• Imported German HBM load cell, high-precision zero temperature drift

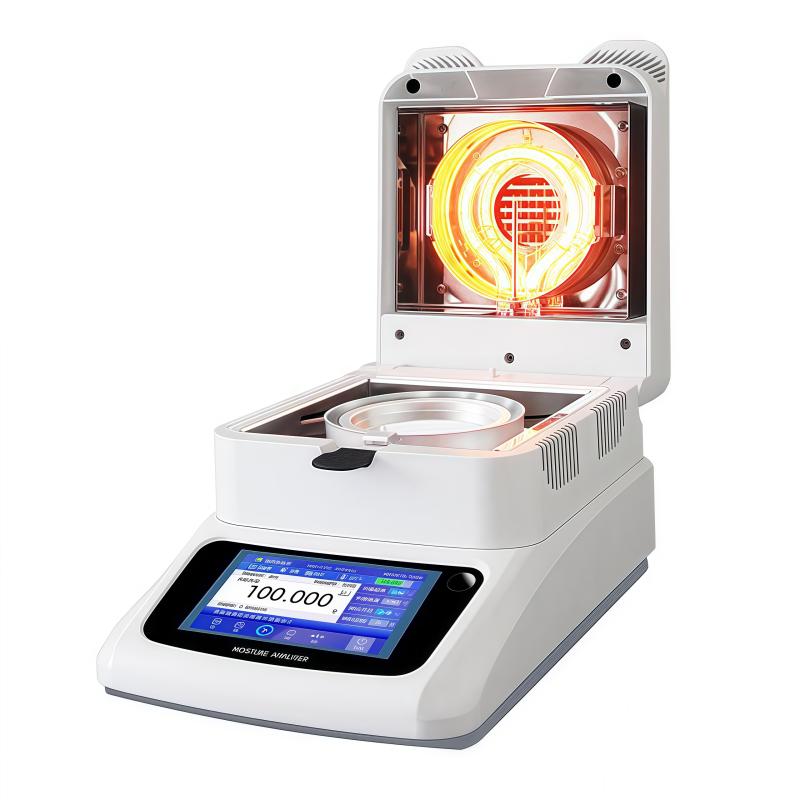

• 500W high-efficiency halogen ring lamp, fast heating, waterproof and explosion-proof, the heating chamber adopts pure stainless steel cavity cover, so that the sample is heated more evenly.

• PT100 temperature sensor is used to accurately control the temperature, and has the characteristics of waterproof, anti-corrosion and high temperature resistance

• Rich data processing functions, 100 test methods can be added customly, 100 moisture results can be stored and averaged

• The built-in database can save 2000 audit trail data, if the U disk function is optional, when the U disk is inserted into the instrument, the tracking data will be updated to the U disk in real time, and countless pieces of data can be saved.

• Built-in RS232 interface, can be connected to thermal printers, label printers or computers, can also choose USB interface

• Improve security through user management, distinguish users by setting login permissions, and have an auto-lock function. A pre-configured main interface reduces errors and increases efficiency and security. Multi-user operations (three-level permission management) are supported, and each user's operation permissions can be assigned by the administrator. The administrator has the highest privileges to operate all the functions of the instrument.

• Instead of the national standard oven method, it is very extensive and suitable for moisture content testing and solid content testing in various industries

• No need to install and debug, it can be used out of the box; Real-time curve display of the test process, visual observation of moisture changes; Rich data display, which can display graphs, time, real-time temperature, moisture, and solid content; Fully automatic measurement, no need to take care of the measurement process, alarm reminder after measurement;

Packing list：Host X1, stainless steel sample plate X2, tripod bracket X1, heat collector plate X1, corrected weight X1, certificate X1, manual X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
