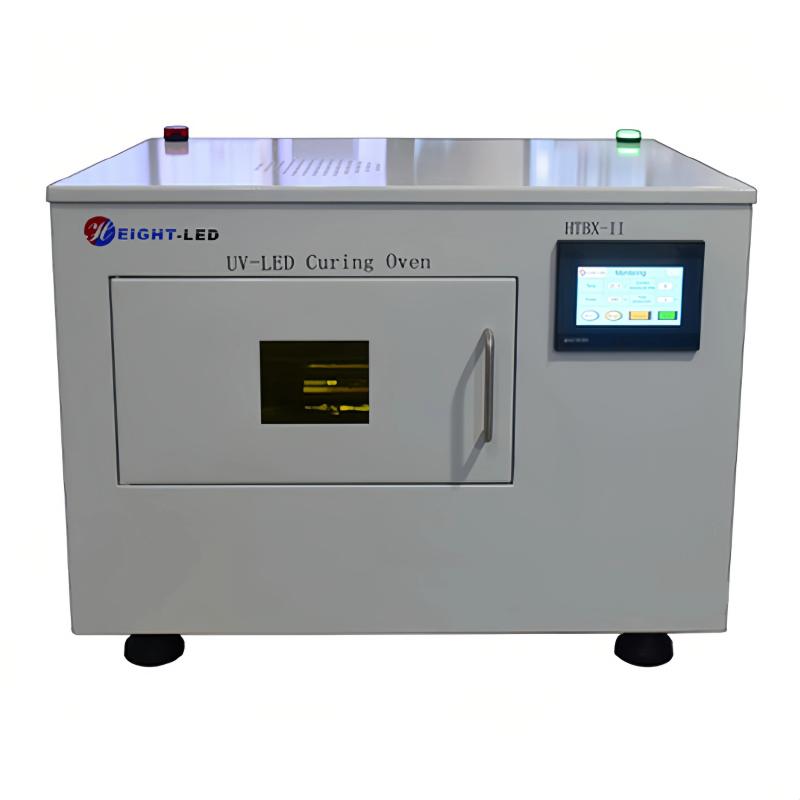

HEIGHT-LED HTBX-II-FS300200-BL (365nm) oven
HTBX-II-FS300200-BL(365nm)
HEIGHT-LED HTBX-II-FS300200-BL(365nm) ovenSPEC
HEIGHT-LED HTBX-II-FS300200-BL(365nm) ovenDetails
HEIGHT-LED HTBX-II-FS300200-BL(365nm) ovenPacking list
- SKU
- NB049993
- light output area
- 300mmX200mm
- wavelength
- 365/385/395/405 (optional)
- Power density
- 365 /385nm 0.5W/cm ² (10mm irradiation distance), 395/405nm 0.8W/cm ² (10mm irradiation distance)
- Heat dissipation method
- air-cooled
- Control mode
- PLC control
- Power regulation
- Digital dimming (1-100%)
- power consumption
- 600W
- parameter setting
- Touch screen operation
- Lamp bead life
- ≥20000H
- Lamp bead brand
- Seoul, South Korea
- Dimension
- L635mm*W520mm*H520mm
- lumen size
- L330mm*W240mm*H160mm
- Environmental temperature and Humidity
- Environmental temperature: -10 ℃ -50 ℃ Relative Humidity: 25% -80% RH
- Power supply Voltage
- AC100V-AC240V (50/60HZ)
- Net Weight
- 41KG
Device characteristics
1. The device has an intelligent safety door protection function, and the UVLED will be turned off immediately when the door is opened in any mode.
2. The device provides automatic mode and manual mode optional, in automatic mode, the device cures according to the irradiation time you set, and automatically turns off the UVLED after the countdown; In manual mode, the device needs to manually turn on the UVLED and record the curing time in real time.
3. The equipment has the functions of digital dimming, production counting, historical data query and so on.
Light source characteristics
Energy-efficient
The output band of UVLED is concentrated, the photoelectric conversion rate is high, the energy saving is energy saving, the curing speed is fast, and the production efficiency is high.
Wide range of applications
UVLED is a cold light source, low infrared heat radiation, will not cause working thermal stress and deformation, suitable for the curing of various heat-sensitive materials.
Long lifespan
UVLED has a long service life and reduces the investment cost of equipment. Instant on/off, no preheating required, and the number of switching times does not affect the service life.
Green and environmentally friendly
RoHS compliant and mercury-free.

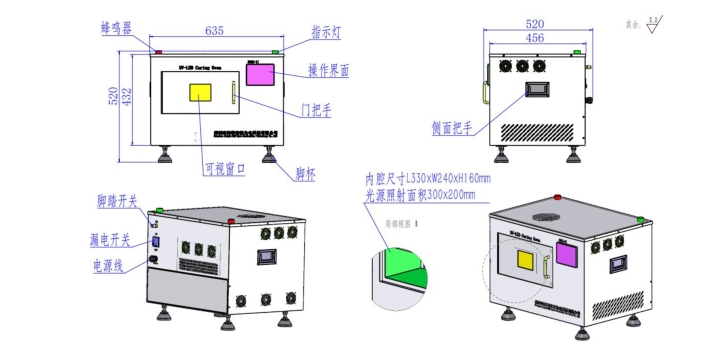

Dimensions
Product Applications
