Huinuo TM3300pro/34 wire rod scraper heating vacuum adsorption coating machine, coating machine 80 * 80cm

TM3300pro/34

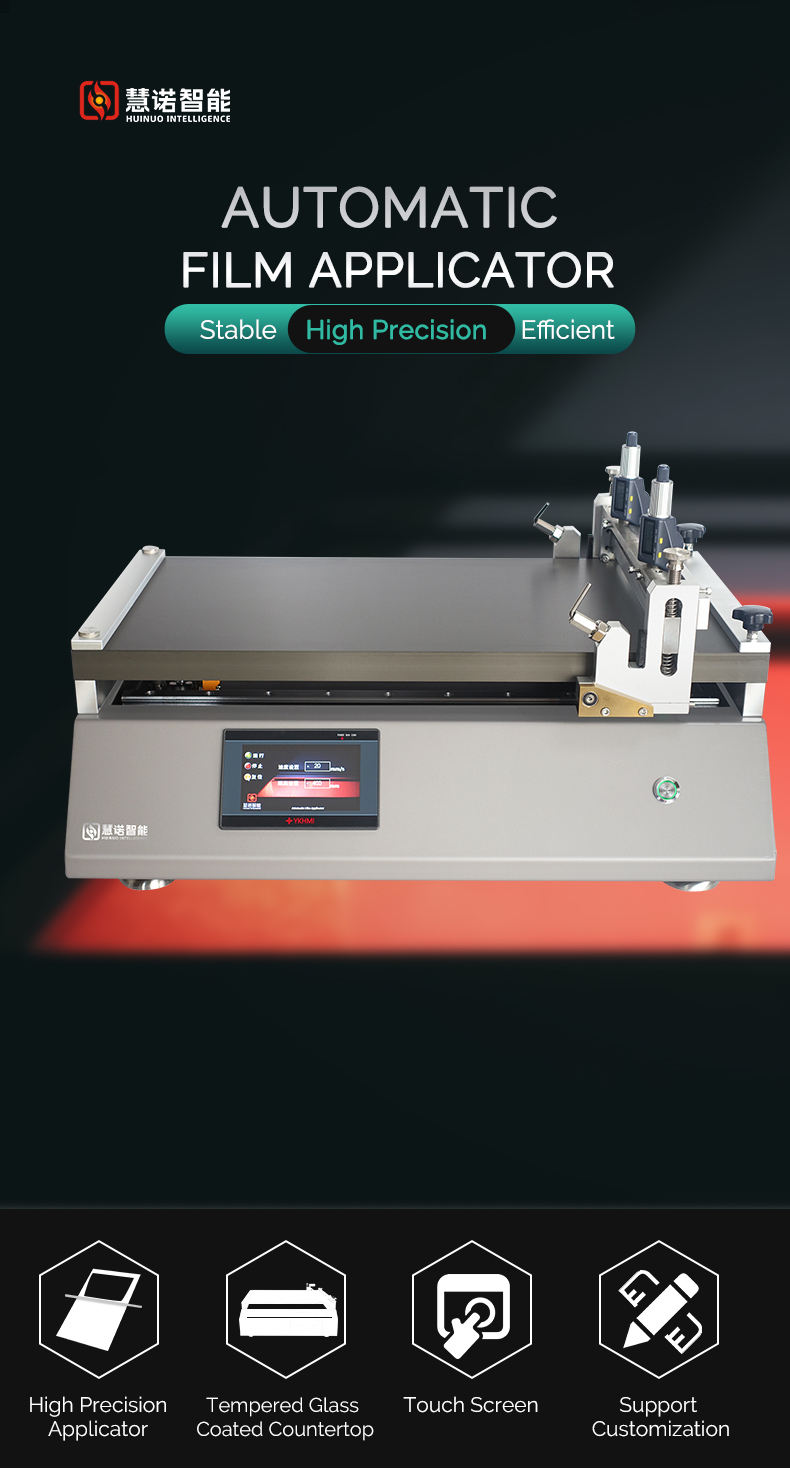

Automatic coating machine

Coating method Wire rod + scraper, effective coating area 800 * 800mm (can be customized), wire rod coating accuracy ± 0.001mm, scraper coating thickness range 0.1~ 10mm (flip design is easy to clean), scraper coating width 800mm, vacuum aperture φ 0.8mm, vacuum hole spacing 20 * 20mm

Product Overview:

Automatic film coating machine is a device used to coat film in the laboratory, replacing manual film coating, automating the film coating, and improving the accuracy and efficiency of film coating. The working principle of the experimental automatic film coating machine is to evenly coat the sample on the substrate by controlling the coating head and coating parameters, forming the desired film.

This coating machine is a wire rod scraper coating machine, with two functions of wire rod coating and scraper coating, the new wire rod installation method and clamshell scraper head greatly improve the coating efficiency, easy to clean, with speed control and coating length adjustment function, suitable for high-precision automatic coating of film in the laboratory, in university research institutes, new materials, lithium batteries, glue, resin and other laboratories for film proofing.

Product Use:

The film coating machine is suitable for coating and sample coating of coatings, inks, paints, pastes, lithium batteries, pressure-sensitive adhesives, resins, glues, polymer materials, pharmaceuticals, etc., and can be scraped on glass, cardboard, and fabrics.

Features

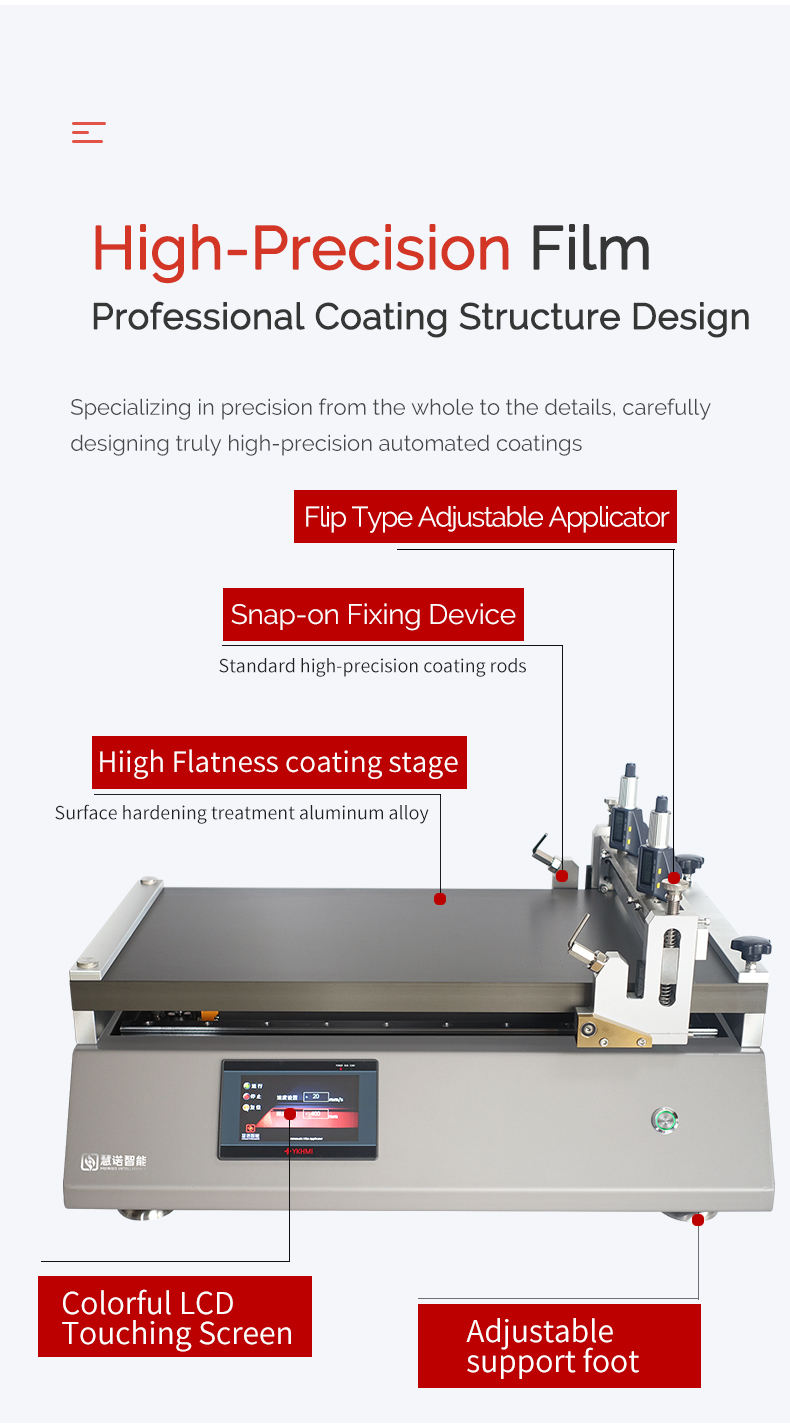

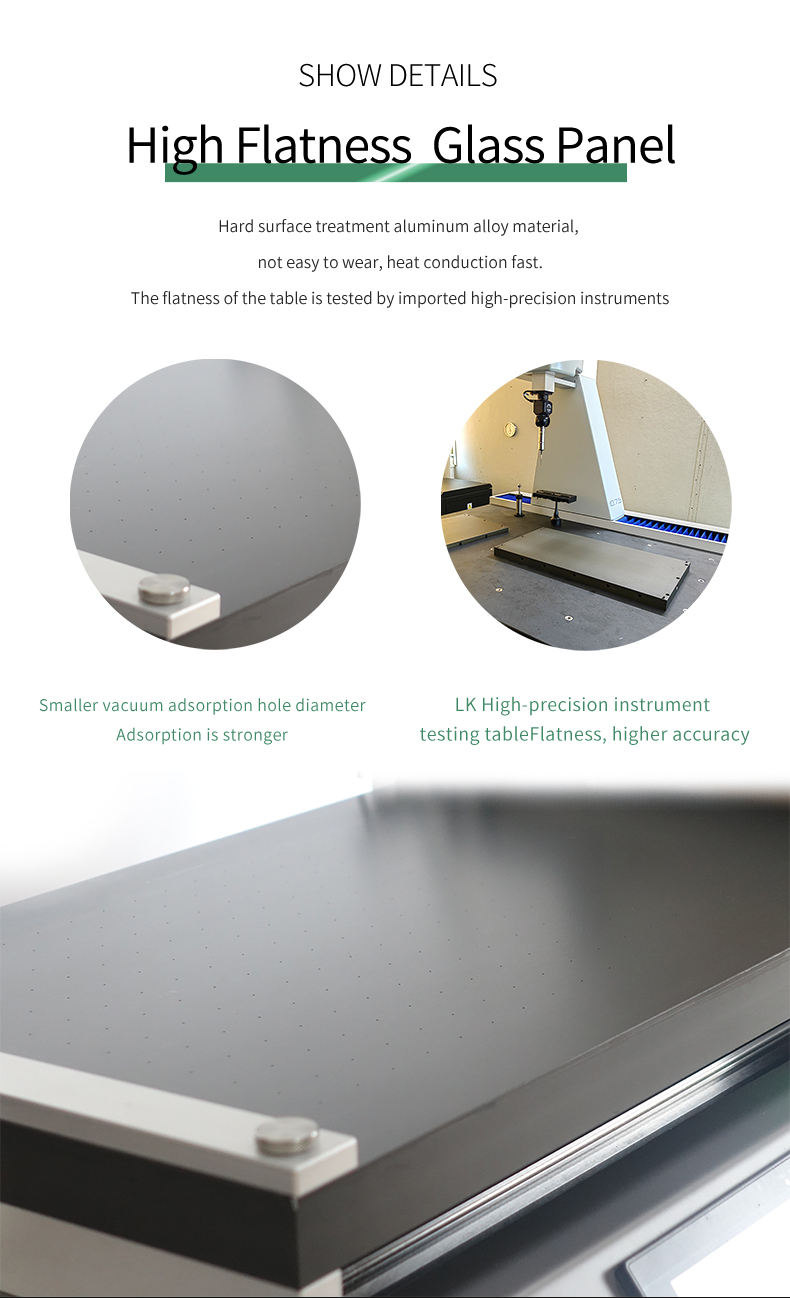

1) Surface hard treatment aluminum alloy countertop, high hardness and wear resistance, and the flatness of the countertop is tested by imported high-precision instruments.

2) Big brand differential adjuster, high film thickness control accuracy

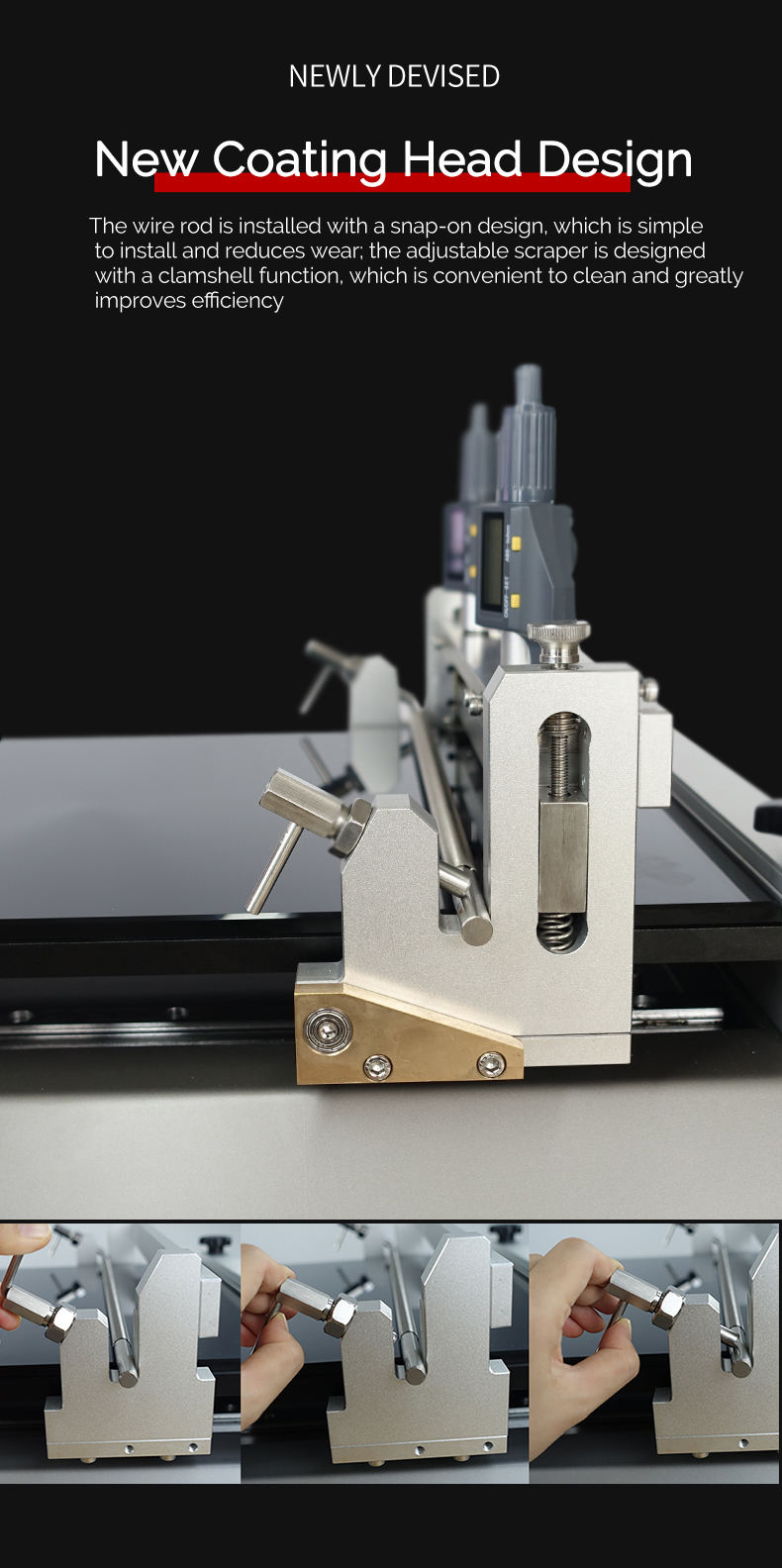

3) Clamshell scraper coating head, easy to clean

4) Equipped with high-precision Film Applicator, the original imported wire rod coating film is uniform and high accuracy

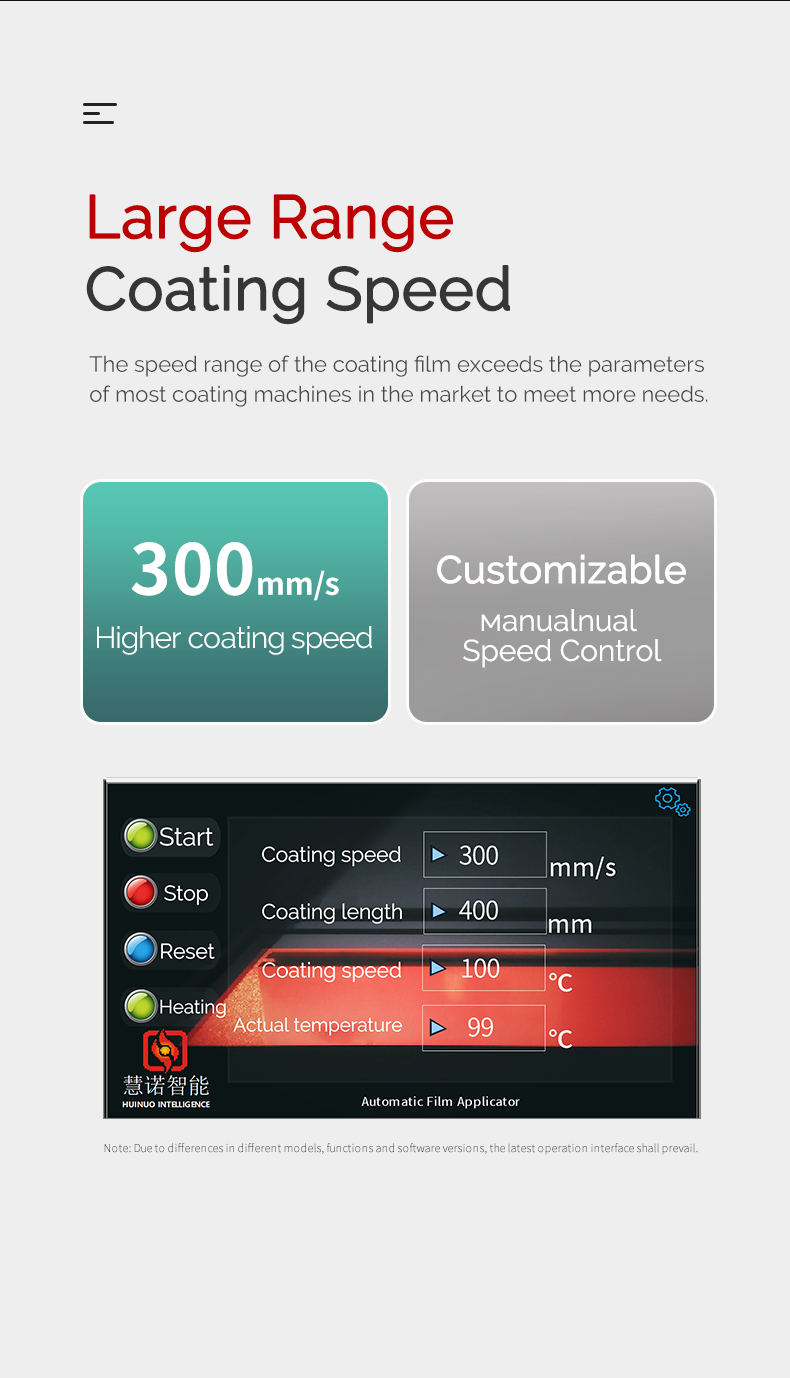

5) Touch screen control panel, easy to operate

6) The coating length and coating speed can be adjusted freely

7) With heating and vacuum adsorption function.

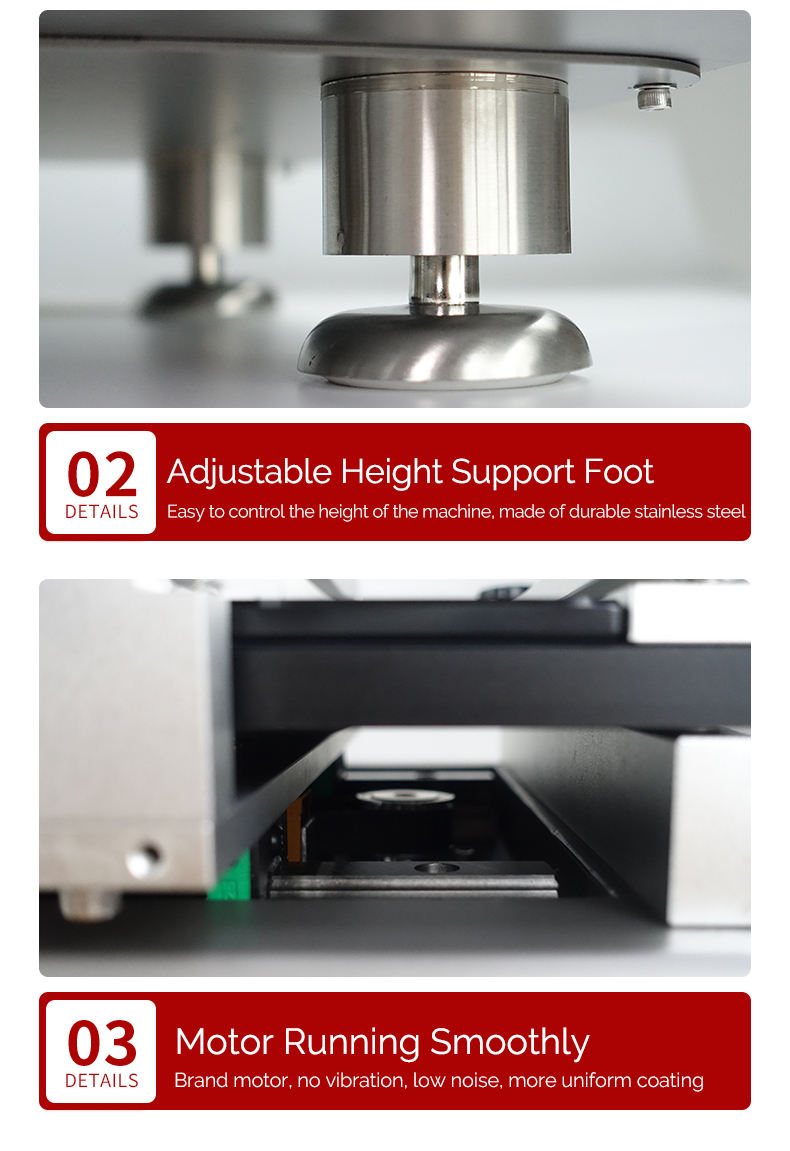

8) Servo motor is adopted, which is more stable in operation and higher in coating accuracy.

Packing list：Host X1, manual X1, scraper x1, imported wire rod X1, certificate X1, vacuum pump X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
