Factory Direct NBC-5000NHX double column Tensile machining high-precision seamless double roller screw

Full digital control Frequency AC motor, speed accuracy +/- 0.5%; Aluminum extrusion sealing plate built-in high-precision double roller screw, high load efficiency; Maximum range 5000N, Test speed 1-500mm/min.
$6133.00/set
PromotionLoading...
Coupon
Model：
Contact
Details SPEC Con
Similar products

Factory NBC-5000NHX Tensile TesterSPEC

Factory NBC-5000NHX Tensile TesterDetails

Factory NBC-5000NHX Tensile TesterPacking list

SKU
NB050217
Unit switch
9, kg, N, Lb, (provide international standard system, metric system, imperial system three, self-switching use)
Measurement range
1%~ 100% FS (full scale)
Test error of indication
≤+1%
Test force resolution
1/500000
Displacement resolution
0.015mm
Displacement error of indication
≤0.2%
maximum travel
800Mm (the stroke can reach 800mm after installing the forceps clamp)
Test speed
1-500mm/min (stepless speed regulation, servo motor)

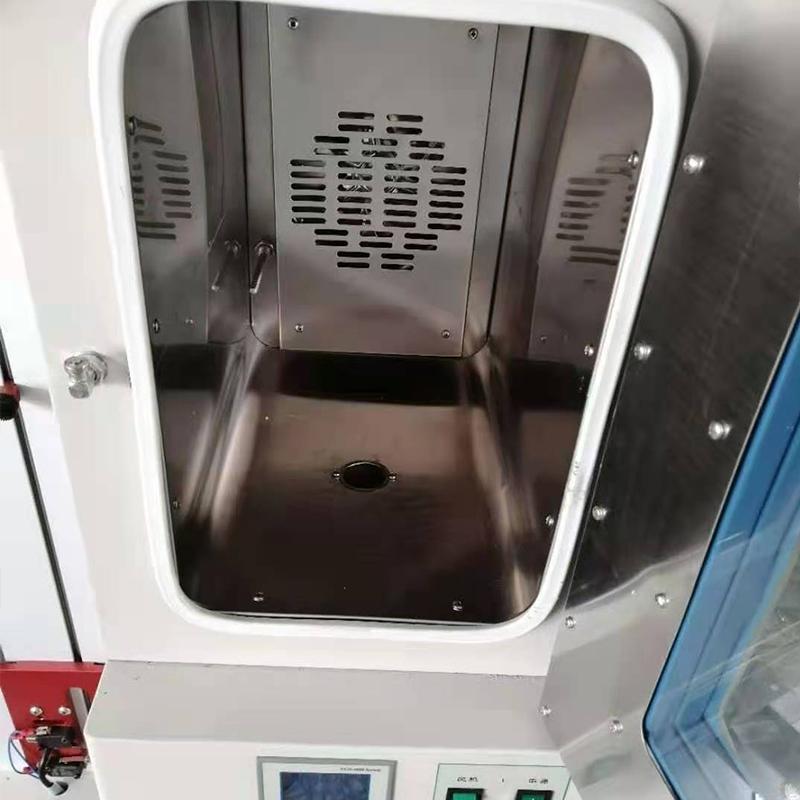

Oven temperature adjustable range
RT+10℃~200℃
Test effective test width
300mm
Miscellaneous
1T double column tensile machine with computer, including high temperature oven
NBC-5000NHX
Tensile Tester
Full digital control Frequency AC motor, speed accuracy +/- 0.5%; Aluminum extrusion sealing plate built-in high-precision double roller screw, high load efficiency; Maximum range 5000N, Test speed 1-500mm/min.

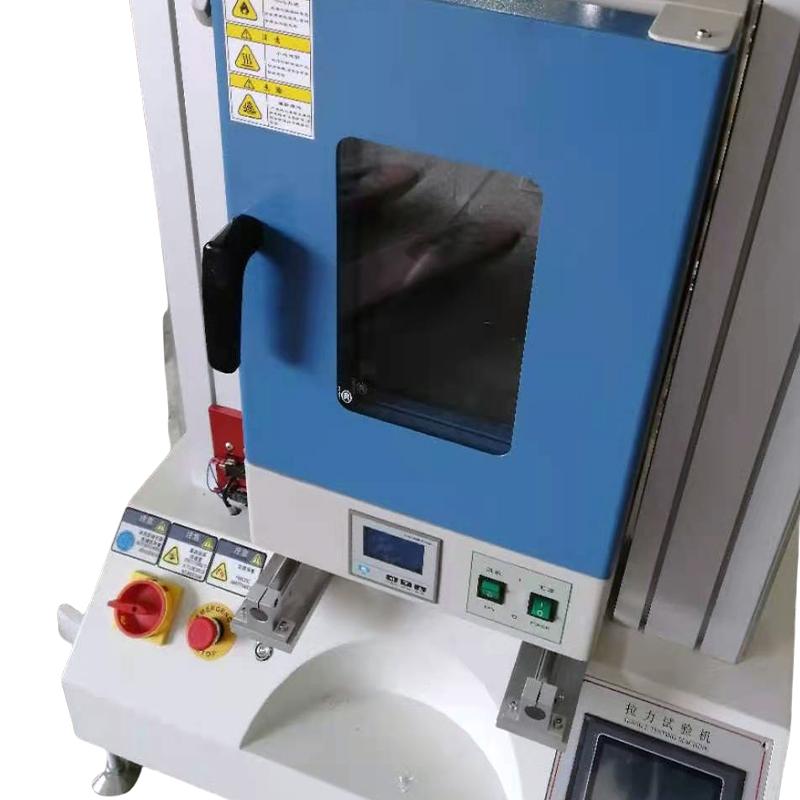

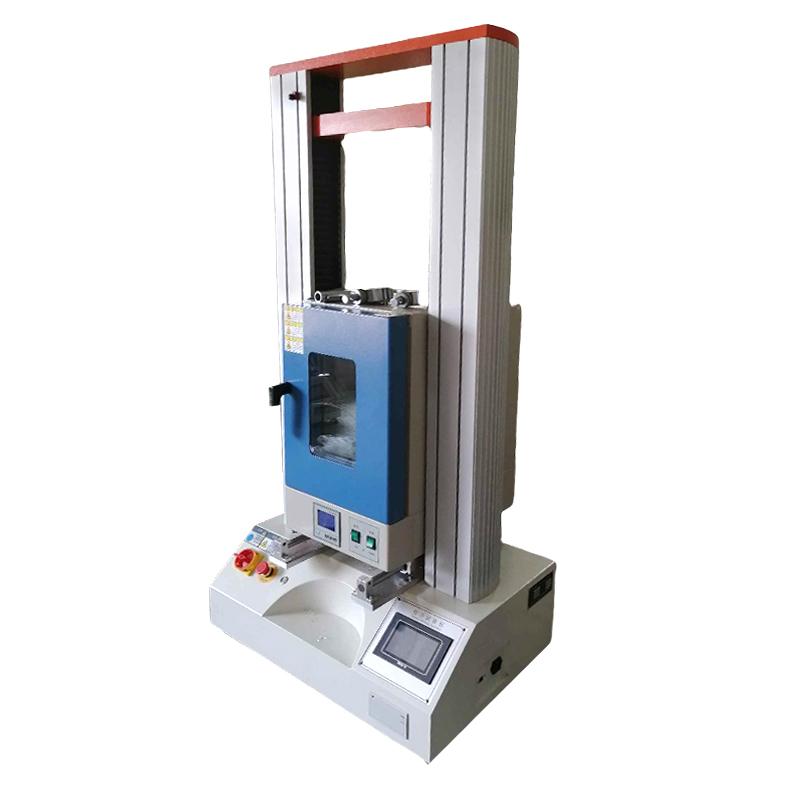

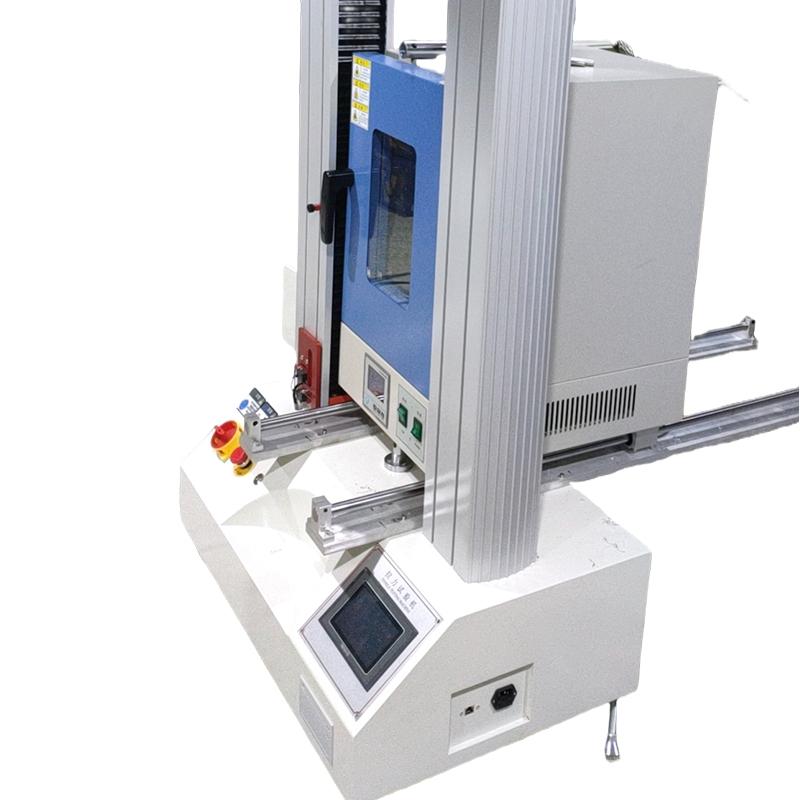

Factory Direct NBC-5000NHX double column Tensile machining high-precision seamless double roller screw Picture

Product Use:

    It is suitable for aerospace, petrochemical, machinery manufacturing, metal materials and products, wires and cables, rubber and plastics, paper products and color printing and packaging, adhesive tape, bags and handbags, textile fibers, food and other industries. It can test the physical properties of various materials and finished products and semi-finished products, and can purchase a variety of different fixtures to do tensile, compressive, tensile, pressure-bearing, bending, tearing, peeling, adhesion, shear and other tests.

peculiarity

1. The control system adopts a fully digital AC motor to control the frequency, which ensures that the transmission system has high efficiency, smooth transmission, low noise, and speed accuracy can be controlled within ±0.5%;

2. The machine structure adopts painted aluminum extrusion sealing plate with built-in high-precision, low-resistance, backlash-free double roller screw and guide column, which improves load efficiency and structural rigidity.

3. The product has stable and reliable performance, high measurement accuracy, powerful test software, and easy to understand.

Safety device

Stroke protection: set as upper and lower limit protection switches to prevent exceeding the preset stroke;

Force protection: The system can set the maximum force value to prevent exceeding the sensor calibration value;

Emergency stop device: There is an emergency stop switch on the right side of the base, which can handle emergencies.

FAQ
QOur factory needs to test the tensile strength of metal materials. Is this Double Column Universal Testing Machine suitable?
A Suitable for. NBC-5000NHX has a maximum range of 5000N, high accuracy, error ≤ +/- 1%, and can accurately measure the tensile performance of metals. It comes standard with a computer, easy to operate, and can meet the factory's quality control requirements for metal material strength.
QWe mainly do rubber, plastic and Encasement material testing, need to do disbonding and tearing experiments, choose this instrument?
A Yes. This testing machine is widely used, covering the rubber, plastic and Encasement industries. By matching different fixtures, you can easily complete the disbonding, tearing and other tests you need. Its effective width is 300mm, Travel can reach 800mm, and it can adapt to samples of various sizes.
QOur factory needs to test the tensile strength of metal materials, which tensile machine is suitable?
A The maximum range of NBC-5000NHX is 5000N, which can accurately measure the tensile performance of metals. The fully digital control AC motor guarantees the Test speed accuracy of +/- 0.5%, which is suitable for the high-precision needs of the metal material industry.
QDo rubber and plastic tear test, can this machine work?
A Yes, NBC-5000NHX supports the purchase of different fixtures, which are specially used for the tear test of rubber and plastic. Displacement resolution is 0.015mm, which can accurately capture the tearing process of materials and is widely used in the quality control of the rubber and plastic industry.
Standard
