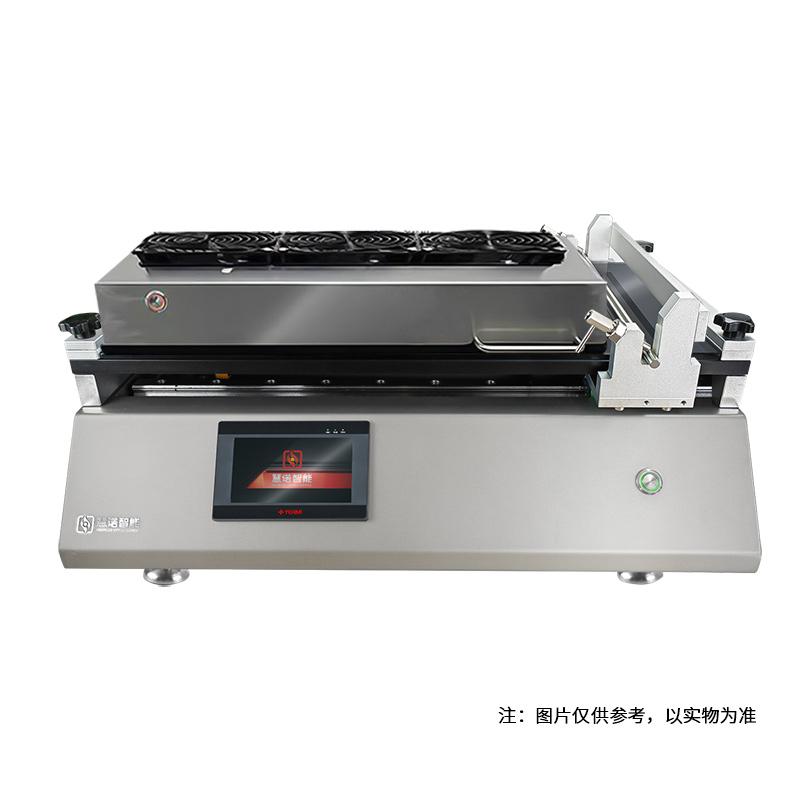

HuiNuo TM1000Pro/UV Automatic Film Applicator (with UV curing) Laboratory Bar Coater servo motor
TM1000pro/UV
HuiNuo TM1000pro/UV Automatic Film Applicator (with UV curing)SPEC
HuiNuo TM1000pro/UV Automatic Film Applicator (with UV curing)Details
HuiNuo TM1000pro/UV Automatic Film Applicator (with UV curing)Packing list
- SKU
- NB050442
- Coating Method
- Bar Spreader
- Coating Speed
- 1~ 300Mm/s stepless speed regulation (can be customized)
- Substrate clamping method
- fixture
- Coating table material
- Aluminum alloy/Glass table (if the specified material is confirmed with customer service)
- Coating table size
- 600*300mm
- Effective coating Area
- 400 * 300Mm (can be customized)
- Film Film thickness
- Controlled by bar, with high Accuracy import bar
- Meyer rod coating Accuracy
- ±0.001mm
- Drive motor
- Servo motor
- power
- 600w
- UV curing area
- 400*300mm
- UV light main peak wave
- 365nm
- UV light power
- 400*2W
- UV light curing wavelength
- 350-450nm
- switch
- Aviation plug/separate switch
- Light source spacing
- 18*18mm
- Lamp board height from coating table
- 20Mm (support customized adjustable height)
- Light type
- LED
- operating language
- Chinese (can be customized in English)
- Display
- Color LCD touch screen
- Host Power Supply
- 220V/50HZ (can be customized 110V/60HZ)
- optional feature
- Drawdown blade, heating, Vacuum chuck
- Dimensions
- 658*438*205mm
- Weight
- 39.7kg
Product Overview:
Automatic film coating machine is a device used to coat film in the laboratory, replacing manual film coating, automating the film coating, and improving the accuracy and efficiency of film coating. The working principle of the experimental automatic film coating machine is to evenly coat the sample on the substrate by controlling the coating head and coating parameters, forming the desired film.
This film coating machine is a basic wire rod coating machine, using a new wire rod installation method, with speed control and coating length adjustment functions, suitable for high-precision automatic coating in the laboratory, in university research institutes, new materials, lithium battery and other laboratories for film proofing.
Product Use:
The coating machine is suitable for coatings, inks, paints, pastes, lithium batteries, pressure-sensitive adhesives, polymer materials, pharmaceuticals, etc., and can be scraped on glass, cardboard, and fabric.
Features
1) The glass countertop is a 3C certified national standard genuine fully tempered glass plate, gold crystal original sheet, heat resistant to 600°C, scratch resistant
2) Equipped with high-precision Film Applicator, the original imported wire rod coating film is uniform and high accuracy
3) Aluminum alloy hard oxidation surface treatment coated base plate, wear-resistant and flat, with flatness accuracy calibration certificate
4) Touch screen control panel, easy to operate
5) The coating length and coating speed can be adjusted freely
