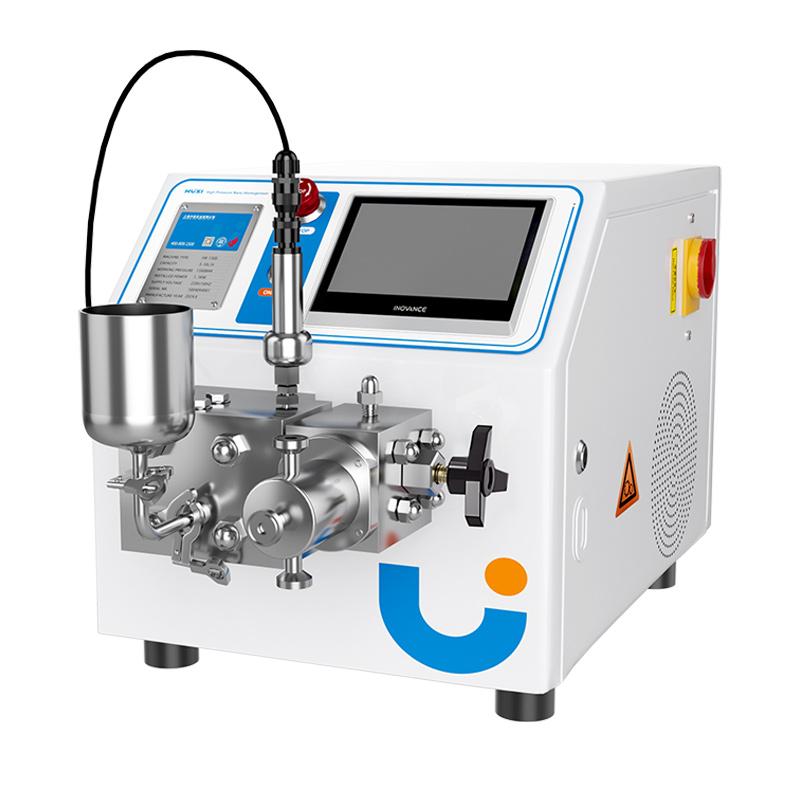

HUXI HR-1500 high Voltage Homogenizer 1500bar Working pressure 4 ℃ Low temperature chill down
HR-1500
HuXi HR-1500 High Voltage HomogenizerSPEC
HuXi HR-1500 High Voltage HomogenizerDetails
HuXi HR-1500 High Voltage HomogenizerPacking list
- SKU
- NB050556
- Processing samples
- E. coli, yeast, insect cells, etc
- Feed size
- ＜500μm
- Flow rate
- 5-15L/h
- design pressure
- 2000bar
- Working pressure
- 1500bar
- Power
- 1.5kW
- Processing Capacity
- 60ml-15L/h
- Processing Capacity
- 60ml
- product viscosity
- ＜2000cP
- Feed temperature
- ＜90℃
- dispersion series
- first level
- pressure gauge
- Hygienic pressure sensor
- Accuracy
- 1bar
- Main motor
- Swiss ABB/SIEMENS 1.5kW 8-class motor
- Voltage and Frequency
- 220V, 50Hz, three-phase
- level
- Sanitary grade
- plunger
- 1 piece
- Internal chill down
- Fan
- Inlet and outlet connection
- Tri-Clamp Quick Connect
- Maximum cleaning temperature
- ＜90℃
- Maximum sterilizing temperature
- ＜145℃
- Cleaning/sterilizing time
- 30min
- Water consumption during cleaning/sterilizing
- 30L/h
- Dimensions (W * H * L)
- 785*450*475mm
- Packaging Dimensions (W * H * L)
- 880*630*650mm
- Net Weight
- 110kg
- Gross Weight
- 180kg
- chiller
- Standard
- Sink Volume
- 2.1L
- Temperature range
- -20℃~RT
- No-load minimum temperature
- -20℃
- Temperature control Accuracy
- ±1℃
- cooling Capacity
- -20℃（120W） -10℃（280W ） 0℃（460W） 20℃（700W）
- 120W
- 280W
- circular interface
- Outer diameter 10mm (pagoda type)
- Maximum Circulating Flow rate
- 11L/min
- head
- 8M
- pressure
- 0.4bar
- Storage tank material
- SUS304
- refrigerant
- R404A
- Shell material
- Cold plate electrostatic spraying SPCC
- drain valve
- Yes.
- Liquid level indicator window
- Yes.
- Rated Power
- 420W
- Environmental temperature
- 5-35℃
- power requirements
- 220V 50Hz
- Dimensions (length * width * height)
- 445*265*535mm
- Packaging Dimensions (L * W * H)
- 500*310*600mm
- Net Weight
- 30kg
- Gross Weight
- 50kg
Application of the product
The high-pressure homogenizer is that the material is transported to a valve manifold of adjustable size under the action of the reciprocating movement of the plunger, which is subjected to extremely strong compression, and when passing through the flow limiting slit, it hits the homogenization valve at a very fast speed, producing a hole effect, impact effect and shear effect, so that the agglomerated material is evenly dispersed. Built-in heat exchange system, cooled by 4°C low temperature environment throughout the process, and the sample does not stay at high temperature throughout the process, mainly used in: Escherichia coli, yeast, various mammalian cells (VREO, 293, diploid).
Product features:
The material of the homogenization valve can be diamond or alloy;
Easy-to-observe digital display pressure gauge and electronic overVoltage protection system;
small size, convenient to put on the test bench;
Modular structure, easy to operate and simple to maintain.
