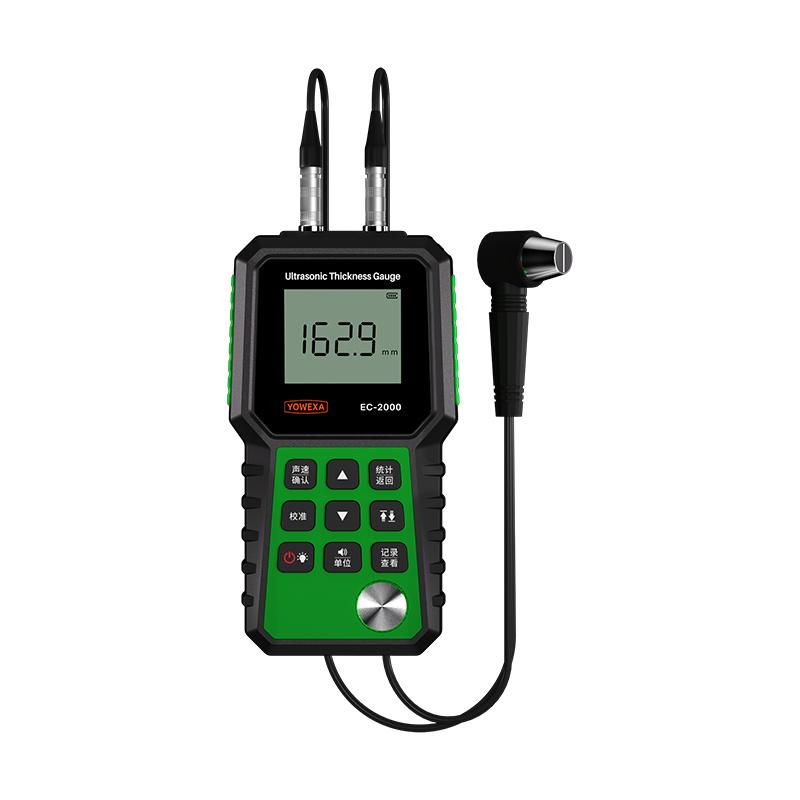

YUWEN EC-2000-L Ultrasonic Thickness Gauge high-precision portable thickness Measurement Instrument
EC-2000-L
YOWEXA EC-2000-L Ultrasonic Thickness GaugeSPEC
YOWEXA EC-2000-L Ultrasonic Thickness GaugeDetails
YOWEXA EC-2000-L Ultrasonic Thickness GaugePacking list
- SKU
- NB050592
- Measurement principle
- Ultrasonic pulse reflection
- Frequency
- 5MHz
- Measurement range
- 1~ 300Mm (steel)
- Measurement mode
- Continuous measurement
- Speed of sound
- 1000~9999m/s
- resolution
- 0.1mm
- Accuracy
- 1.0 to 9.9mm: +/- 0.1mm 10.0 to 299.9mm ： +/- ( 1% reading + 0.1mm) EC-2000-C: 300.0 to 400.0 mm ： +/- ( 2% reading + 0.10mm) Miscellaneous range indication for reference only
- Support probe
- PU5-10
- unit
- Mm mm, inch
- reaction time
- Single measurement about 0.5 seconds, continuous measurement about 0.3 seconds
- Storage Capacity
- 60 sets of data
- Calibration method
- 4Mm calibrated
- show
- Segment screen with backlight
- Operating environment
- Temperature: -10~ 50 ℃; Humidity: ≤ 90% RH, no condensation
- Storage environment
- Temperature: -20~ 60 ℃; Humidity: ≤ 90% RH, no condensation
- Power Supply
- 3 AA 1.5V alkaline batteries; USB 5V/2A (Type-C interface)
- Protection level
- IP40
- Dimension
- 135*72*27mm
- Shell material
- ABS
- Weight
- Approximately 127g (without battery)
- Probe model
- PU5-10 (standard)
- Probe type
- Ordinary probe
- Frequency
- 5MHz
- Measurement range
- Determined by the host
- Minimum measurement area
- Diameter 15mm
- contact temperature
- -10~60℃
- Line length
- About 1m
- Weight
- About 45g
Product Description:
The EC-2000, EC-2000-L, and EC-2000-C are instruments that apply the principle of ultrasonic pulsed reflection to measure the thickness (or velocity of sound) of ultrasonic good conductor materials, including: measuring the thickness of metallic materials such as steel, iron, copper, or aluminum, and measuring the thickness of non-metallic materials such as plastics, ceramics, rocks, or glass.
EC-2000 and EC-2000-C have a measuring range of 1~400mm, and EC-2000-L has a measuring range of 1~300mm; The EC-2000 has a resolution of up to 0.01mm, and the EC-2000-L and EC-2000-C have a resolution of 0.1mm. When measuring, apply a couplant to the test object, and then attach the probe end to the application site, and the instrument can measure the thickness of the test object.
The EC-2000 uses a dot matrix display with a standard menu and data display interface that displays average, minimum, and maximum values simultaneously. In addition, the instrument contains a large amount of memory. During the measurement process, the instrument can count and record the measurement results (restart to query). The EC-2000-L and EC-2000-C use a segment code display with a streamlined data display interface, which is simple and easy to use.
The EC-2000, EC-2000-L, and EC-2000-C come standard with a probe line length of approximately 1 meter and can be operated in tight spaces or on the assembly line.
Product features:
Measure material thickness, measure material sound velocity, measurement range 400mm (steel) (EC-2000, EC-2000-C)
Maximum resolution of 0.01mm (EC-2000), adjustable sound velocity, single/continuous measurement (EC-2000, EC-2000-C)
Data statistics and storage, metric and imperial units optional, coupling status prompts
Split probe, user calibration, display with backlight, battery protection
Applications:
Petrochemical, metallurgical processing, shipbuilding, aerospace
Notes:
Avoid sun exposure, avoid direct contact with corrosive chemicals, and be careful of drops
warn
It is forbidden to disassemble without permission!
Strictly prevent strong electricity and static shock!
