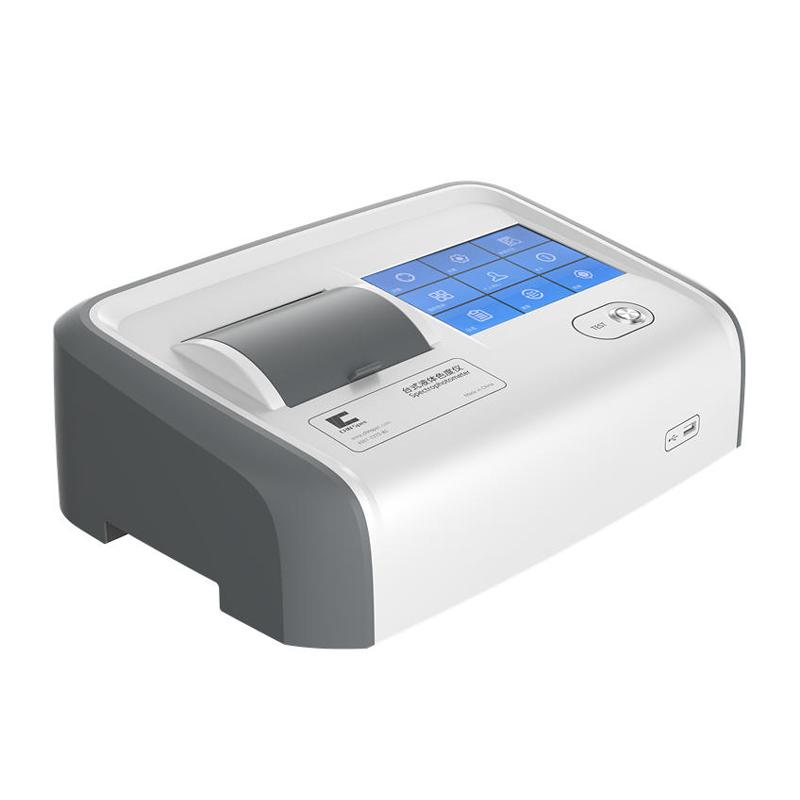

CHNSPEC DS-812N Benchtop liquid Colorimeter intelligent zero calibrated minimum liquid addition 1ml
Intelligent zero-point calibrate ensures High Accuracy of Delta E * ab ≤ 0.01, minimum liquid addition is only 1ml, Measurement speed is as fast as 1.5 seconds, equipped with 7-inch Touchscreen and can store more than 100,000 pieces of data to meet strict quality control requirements.
$3646.00/set
PromotionLoading...
Coupon
Model：
DS-812N
CHNSpec DS-812N Benchtop ColorimeterSPEC
CHNSpec DS-812N Benchtop ColorimeterDetails
CHNSpec DS-812N Benchtop ColorimeterPacking list
- SKU
- NB050769
- Measurement condition
- D/0 (Scattering Illuminant, 0 degree viewing angle) (in accordance with CIE No. 15, ISO 7724/1, ASTM E1164, DIN 5033 Teil7, JIS Z8722 Condition c.) ASTM D1209, ASTM D5386, ASTM D6045, ASTM D6166, ASTM D1502
- stand-alone operation
- support
- integrating sphere
- φ 40mm, Avian-D full diffuse reflection surface coating
- Illuminant
- CLEDs (Full Band Equalized Led Illuminants)
- Sensor
- Dual Optical Path Sensor Array Sensor
- Wavelength range
- 360-780nm
- wavelength interval
- 10nm
- Bandwidth
- 5nm
- Measurement range
- 0~200%
- resolution
- 0.0001
- Observer Angle
- 2°/10°
- Observational Illuminant
- A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V4
- show
- Pharmacopoeia color number, transmission chart/data, sample chromatic value, color difference value/chart, pass/fail result, Color bias, Color simulation, Historical data color simulation, Manual input of standard sample, Test report
- Measurement time
- ≤ 1.5 seconds
- Measurement optical path
- Standard: 10mm Glass Cuvette, 50mm Glass Cuvette (optional 33mm and 100mm Glass Cuvette)
- Color space
- CIE Lab, LCh, CIE Luv, XYZ, Yxy, Transmittance, Hunter Lab Munsell, MI, CMYK
- Color difference formula
- ΔE*ab,ΔE*CH,ΔE*uv,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*94,ΔE*02
DS-812N
Benchtop Colorimeter
Intelligent zero-point calibrate ensures High Accuracy of Delta E * ab ≤ 0.01, minimum liquid addition is only 1ml, Measurement speed is as fast as 1.5 seconds, equipped with 7-inch Touchscreen and can store more than 100,000 pieces of data to meet strict quality control requirements.
Product features:
More than 30 chromaticity indicators, including platinum-cobalt index, Gardner, Cyport, China, the United States, European pharmacopoeia standards, etc
Intelligent zero point calibration is used to ensure accurate measurement of △E*ab≤0.01
The minimum liquid addition volume is reduced to 1ml, and 10mm and 50mm cuvettes are standard, and 33mm and 100mm cuvettes are optional
The measurement speed is fast, taking only 1.5 seconds for a single measurement
The thermostatic sample tank (temperature up to 90°C) is designed to ensure sample fluidity
The 7-inch touch screen provides friendly human-computer interaction, and the instrument can store more than 100,000 pieces of data
FAQ
QWe do chemical Color detection, the amount of samples is very small, and some samples are very viscous at room temperature, what instrument can measure it accurately?
A
CHNSPEC DS-812N is suitable. It only requires a minimum sample volume of 1ml, which solves the problem of precious or small samples. More importantly, it has a thermostatic sample tank with a temperature up to 90 ° C, which can heat the viscous sample to a flowing state and then perform measurement. In this way, the measured Color data is accurate and reliable, suitable for quality control in Resin, grease, chemicals and other industries.
QI want to test the Liquid Color specified in Pharmacopoeia. Is there any suitable instrument recommended?
A
Recommended CHNSPEC DS-812N Benchtop liquid Colorimeter. It has built-in chroma standards of Chinese, American and European pharmacopoeias, can directly display the pharmacopoeia color number, suitable for pharmaceutical, chemical and other industries for pharmacopoeia compliance testing, easy to operate.
QThe quantity of samples in our laboratory is very small, and some samples are relatively viscous. Is there an instrument that can measure it?
A
CHNSPEC DS-812N is suitable. It only requires a minimum sample volume of 1ml, which is friendly to precious or small samples. The instrument also has a thermostatic sample tank, which can be heated up to 90 ° C, which can effectively reduce the viscosity of the sample, ensure the flowability, and make the measurement results more accurate.
