Defelsko Positector 6000 NAS1000 anodic oxidation Thickness Gauge
SEDefelskoNAS1 anodic oxidation Thickness Gauge is a monochrome display, can record/download 1000 readings, can be split and replaced probe compatible with all hosts, anodic oxidation aluminum film measurement, one-handed operation, menu navigation.
$1266.00/set
PromotionLoading...
Coupon
Model：
Positector 6000 NAS1
Similar products
Defelsko Positector 6000 NAS1 Coating Thickness GaugeSPEC
Defelsko Positector 6000 NAS1 Coating Thickness GaugeDetails

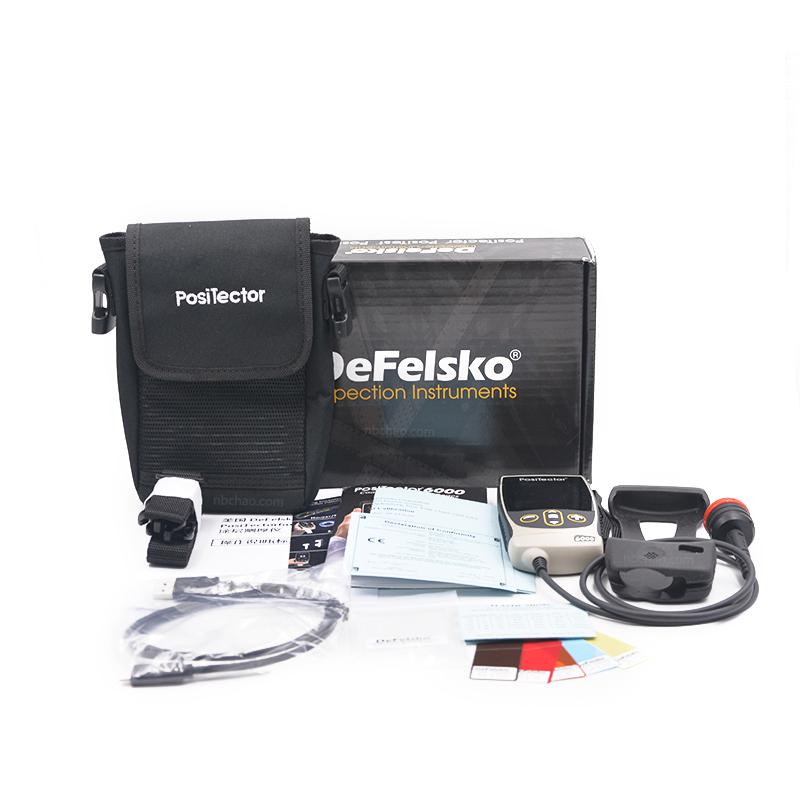

Defelsko Positector 6000 NAS1 Coating Thickness GaugePacking list
- SKU
- NB000555
- Measurement principle
- Eddy Current
- Measurement range
- 0~625μm
- margin of error
- ±3%
- Resolution
- 0.1μm
- probe
- NAS1 probe (measurement of aluminum oxide film)
- statistical function
- Measurement times, MAX Maximum, MIN Minimum, Average, Standard deviation
- icon function
- without
- Power Supply
- 3 * AAA alkaline battery
- Standards
- ISO 2178/2360/2808、PrEN ISO 19840、ASTM B499/D1186/D1400/D7091/E376/G12、BS3900-C5、SSPC-PA2等
- Calibrated Certificate
- Yes.
- Language
- Chinese, English
- Display screen
- 2.8-Inch color touchscreen
- Interface
- USB
- supporting software
- PosiSoft Software Suite
- Machine Weight
- 137G (without battery)
- Machine size
- 127*66*25.4mm
- Data storage
- 1000 Measured values
- Test environment
- Non-ferrous metal substrate nonconductive coating environment
- Defelsko calibrated standard
- STDS2、STDA2
- screen image saving
- One hundred.
- Protection level
- IP65
- Measurement speed
- 60 + readings per minute

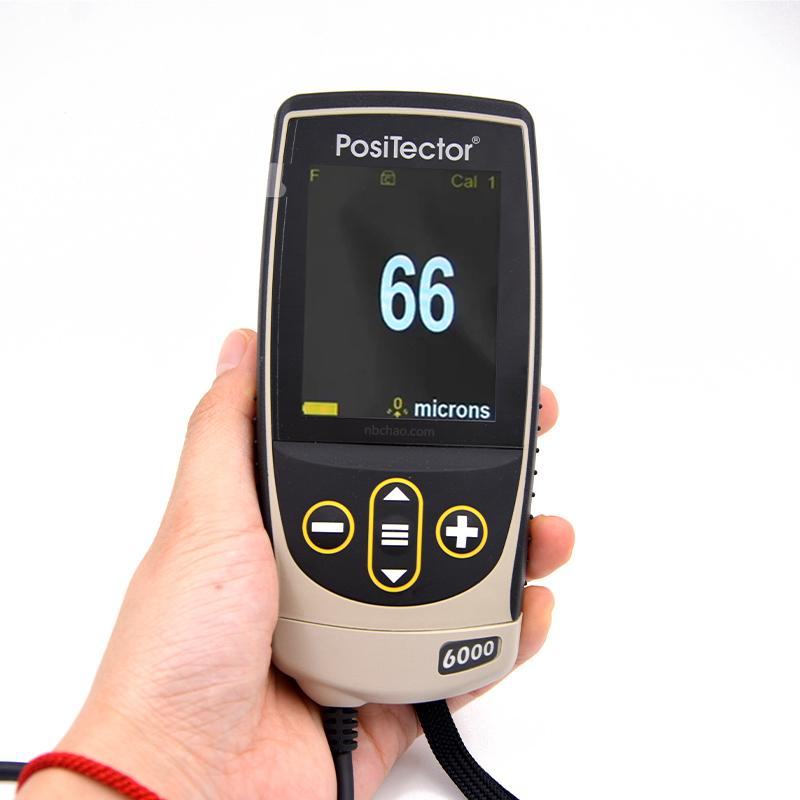

Positector 6000 NAS1
Coating Thickness Gauge
Overview
Defelsko Positector 6000 NAS1The anodized aluminum Film Thickness Gauge is an external probe dedicated to measuring the anodized aluminum film, and the object of measurement is the thickness of the non-conductive coating on the non-ferrous metal substrate, and the thickness of the coating is measured in the range of 0~625 microns.Positector 6000 NAS1The anodized aluminum Film Thickness Gauge has characteristics in terms of safety protection, not only the probe has good wear resistance, but also the host is equipped with a protective sleeve, which has the characteristics of good dustproof, waterproof, oil discharge, etc., to a certain extent, to ensure the longer service life of the Thickness Gauge.
Single Function:
Substrate: Non-ferrous metals (aluminum, copper)
Coating: Non-conductive coating
NAS1 – Non-ferrous metals (aluminum, copper), anodized aluminium film measurement
Recommended reading
★《How do you choose the Defelsko PosiTector 6000 Coating Thickness Gauge?》
★Defelsko PosiTector 6000 Series Coating Thickness Gauge Details (Text Version)
FAQ
QIn what environment is this thickness gauge suitable for use?
A
Positector 6000 NAS1 with IP65 Protection Rating, Probe wear-resistant and the main machine with protective cover, dustproof, waterproof and oil-proof, suitable for use in industrial environments such as workshops and laboratories, can ensure the service life of the instrument under harsh conditions.
QWhat special features are required for the measurement of anodic oxidation layers on Aluminum Panels?
A
The Positector 6000 NAS1 is designed for aluminum-based oxide film, which can automatically identify aluminum substrates, direct measurement nonconductive coatings, simple operation, and can store 1000 data to facilitate mass control.
QDo the Defelsko 6000 series thickness gauges come standard with software?
A
This does not have a physical software CD, but PosiSoft software can be downloaded for free on the manufacturer's official website for downloading and viewing data reports.
QWhy can't the Defelsko Coating thickness gauge be charged?
A

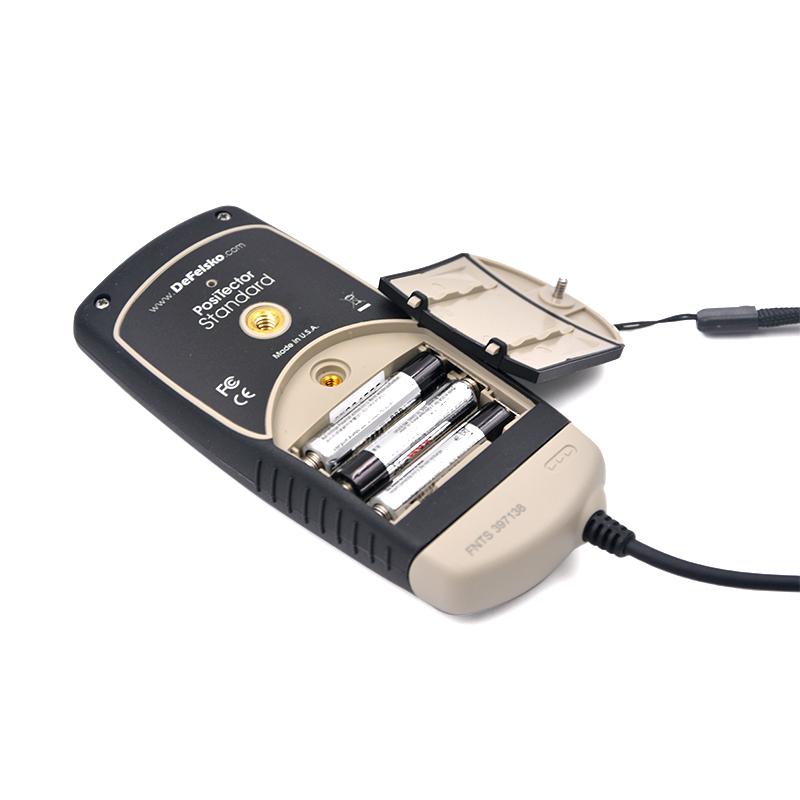

Hello, there are two solutions: 1. It is equipped with 3 ordinary AA batteries, please open it and replace it; 2. It can also be connected to a computer for direct use, but it cannot be charged (powered by a USB cable).
QDoes the Coating thickness gauge meet the specifications of ASTME376?
A
Model Positector 6000 NAS1 Coating thickness gauge
QIs this a special measurement of oxide film Film thickness?
A
Hello, yes.
Knowledge
Standard
- 1ISO 《Non-magnetic metallic coatings on metallic and non-metallic basis materials — Measurement of coating thickness — Phase-sensitive eddycurrent method》
- 2JB/T 13939-2020《Nondestructive testing instruments.Eddy current thickness gauge》
- 3QJ 990.3A-2011《Inspection methods of coating.Part 3:Measurement of coating thickness》
- 4JJG 818-2018《Magnetic and Eddy Current M easuring I nstrument for Coating Thickness》
- 5GB/T 1727-2021《General methods for preparation of coating films》
- 6HG/T 20720-2020《Construction and acceptance specification of waterborne anti-corrosion coatings for steel structures in industrial buildings》
- 7ASTM B244-2021《Standard Test Method for Measurement of Thickness of Anodic Coatings on Aluminum and of Other Nonconductive Coatings on Nonmagnetic Basis Metals with Eddy-Current Instruments》
- 8ISO 2360-2017《Non-conductive coatings on non-magnetic electrically conductive base metals — Measurement of coating thickness — Amplitude-sensitive eddy-current method》
- 9ASTM D7091-2022《Standard Practice for Nondestructive Measurement of Dry Film Thickness of Nonmagnetic Coatings Applied to Ferrous Metals and Nonmagnetic, Nonconductive Coatings Applied to Non-Ferrous Metals》
- 10ASTM E376-2019《Standard Practice for Measuring Coating Thickness by Magnetic-Field or Eddy Current (Electromagnetic) Testing Methods》
