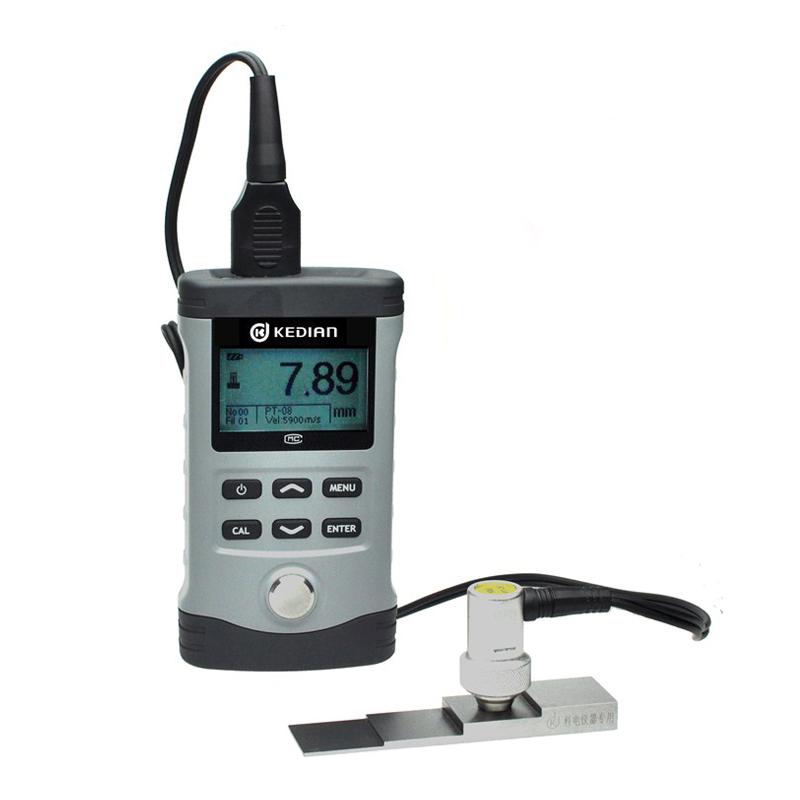

HCH-3000E/E high-precision Ultrasonic Thickness Gauge Speed of sound measurement film thickness up to 500mm

HCH-3000E/E

Ultrasonic Thickness Gauge

Introduction of HCH3000E/E high-precision ultrasonic Thickness Gauge

Kedian HCH-3000E-E echo-echo ultrasonic Thickness Gauge adopts the new technology of single-chip microcomputer and CPLD integrated system, which is an intelligent ultrasonic Thickness Gauge that integrates transmission-echo mode and echo-echo mode. It has the characteristics of low power consumption, strong penetration, stable indication value, high detection accuracy, and more user-friendly operation interface. New additions include probe identification, batch group management data, multiple online measurement modes, sound velocity measurement, and more, making the instrument more suitable for the needs of industrial sites.

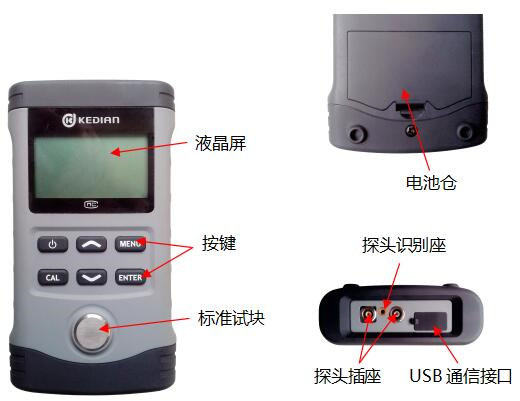

Product structure diagram

Features

1. There are two measurement methods: primary bottom wave and echo-echo

2. Pulse ~ echo mode (standard mode, used for ordinary thickness measurement)

3. Echo ~ echo method (coating mode, used for net thickness measurement of substrate without removing the paint layer)

4. Reverse measurement of sound velocity: The sound velocity of the material can be measured according to the thickness of the known material

5. Automatic sensitivity gain optimization - automatically adjust the sensitivity to make the measurement more accurate

6. Probe automatic identification, a variety of probes can be selected

7. Minimum value scanning mode, 10 times per second, quickly measure and capture the minimum value

8. The upper and lower limit alarm thresholds can be set, and when the measured thickness exceeds the threshold, the alarm signal will be given

9. Difference mode: The measured thickness is compared with the set base value, and the difference is displayed on the screen

10. Large-capacity storage, data group management

11. The printout can communicate with the PC

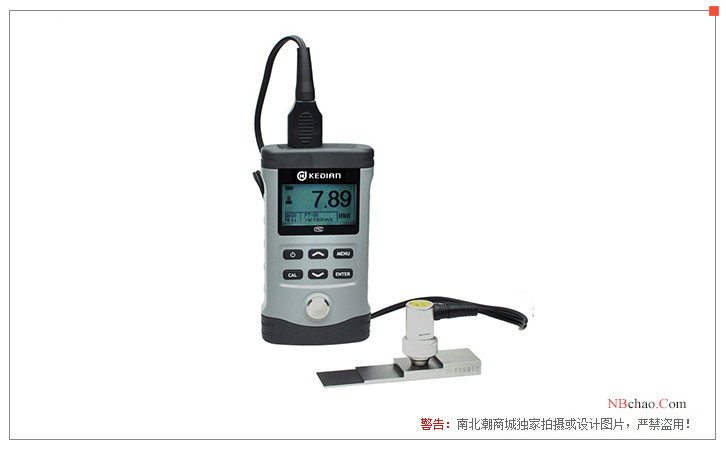

Product display diagram

Packing list：host x1, probe x1, coupling agent x1, battery x2, instruction manual x1, warranty card x1, certificate x1, suitcase x1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
