APPLENT AT526 battery Tester for measurement of any type of battery

APPLENT AT526 battery Tester is a professional battery Tester for the measurement of various battery resistance or life evaluation, etc. Measurement range of AT526:0.0005mΩ~ 33Ω (resistance), 0.00001mV~ 120.0000Vdc (Voltage).
Model：
Certificate
Contact
Details SPEC CAT

Applent AT526 Battery internal resistance TesterSPEC

Applent AT526 Battery internal resistance TesterDetails

Applent AT526 Battery internal resistance TesterPacking list

SKU
NB005847
Measurement parameter
AC resistance, DC Voltage
Basic Precision
Resistance: 0.2% Voltage: 0.01%
Measurement range
Resistance: 0.001mΩ~ 33.000kΩ Voltage: 0.00001V~ 120.000VDC
signal source
AC 1kHz
range
Seven range automatic and manual
Test speed
145 times/second, 30 times/second, 10 times/second, 1 time/second
Show results
Direct reading, sorting results
Maximum reading
Resistance: 33,000 Voltage: 1,200,000
correction
Short circuit clearing in full scale
comparator
RHI/RNG/RLO output VHI/VNG/VLO output, absolute tolerance +/- TOL sorting, percentage tolerance TOL sorting, sequential comparison sorting
trigger method
Internal trigger, manual trigger, external trigger and remote trigger
standard interface
RS-232C interface USB interface Handler interface (PLC interface) RS-232C interface USB interface
other
True color TFT-LCD display, keylock and data retention function, internal flash memory and U disk data recording
power requirements
Voltage: 110VAC/240VAC Frequency: 50Hz Power: Maximum 15VA
size
External Dimensions (mm): 264 (W) x107 (H) x350 (D)
Weight
4kg
AT526
Battery internal resistance Tester
APPLENT AT526 battery Tester for measurement of any type of battery Picture

Introducing the AT526 Battery Tester

AT526 is a newly designed battery Tester with high precision and high stability. It is controlled by a high-performance ARM microprocessor. True color 3.5-inch LCD display in Chinese and English, more convenient to operate. It is an upgraded product of AT520. It is a high-performance, intelligent instrument widely used in contact resistance, battery Voltage and battery internal resistance testing. New and improved sampling circuitry that can measure any kind of battery. In addition, the instrument has a professional sorting function, sorting signal settings, and is applied to the automatic sorting system to complete the automatic assembly line test. It can also be equipped with a USB interface for remote control and data acquisition and analysis, which is very suitable for mass production of batteries.

Performance characteristics

● Vector method is used to measure, and a variety of parameters are measured at the same time

● Comparator (sorting) function

● Test line damage detection

● Compatible with SCPI instruction set

● New and improved sampling circuit

Display diagram

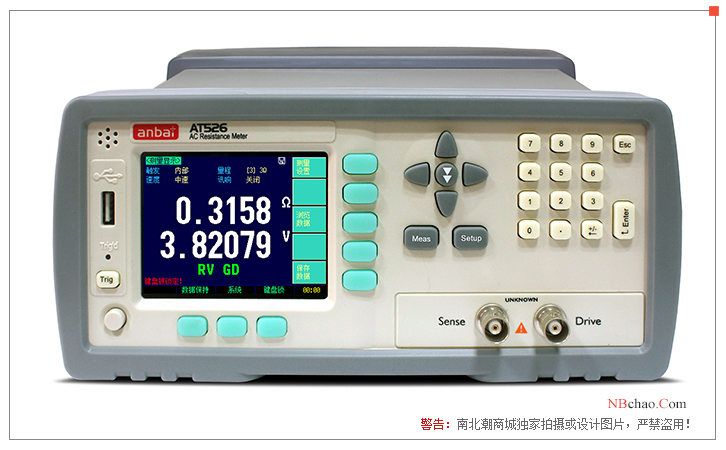

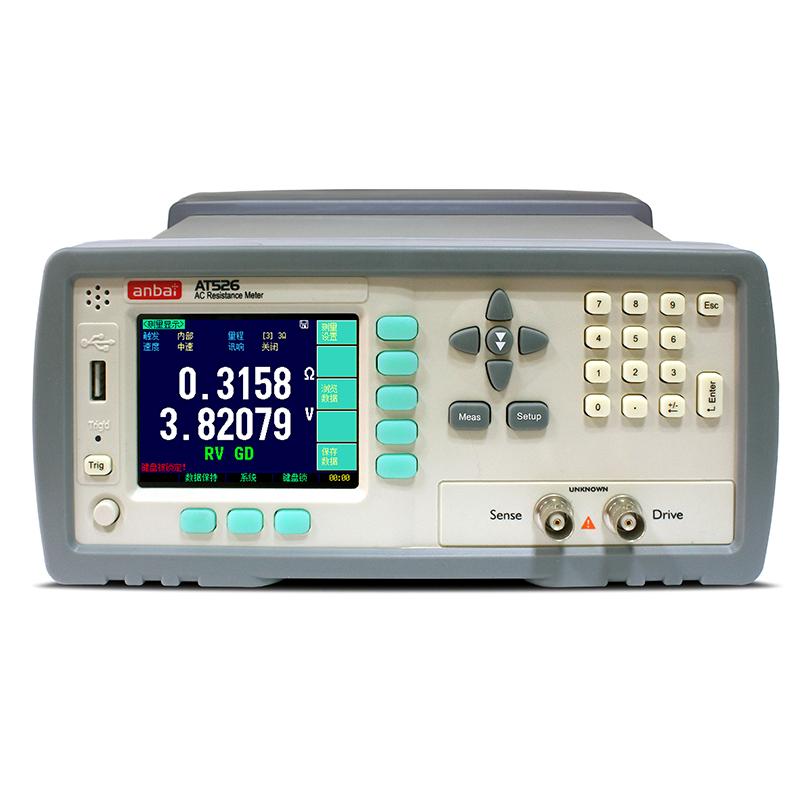

Front view of the Amber AT526 battery Tester

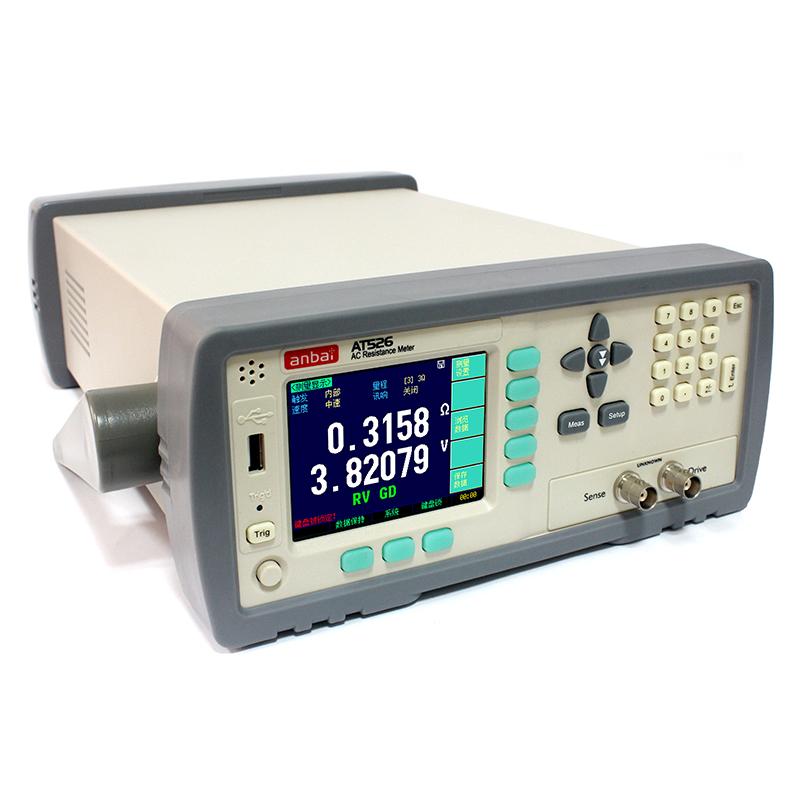

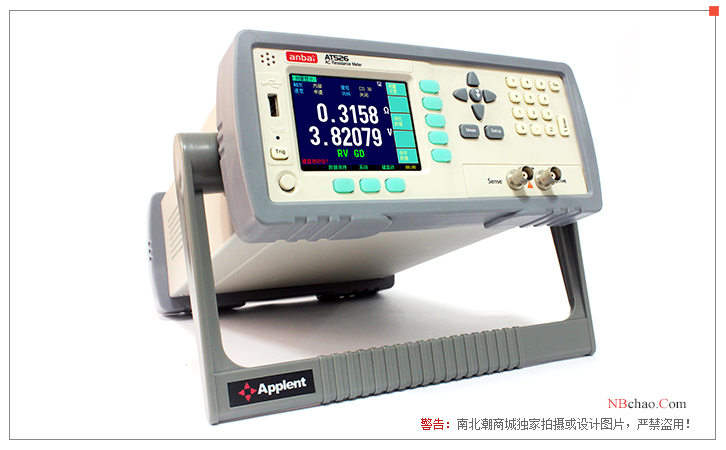

Image of AMBER AT526 battery Tester

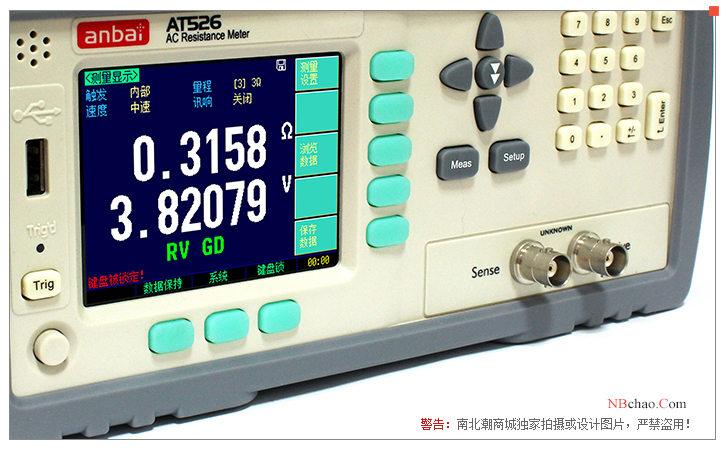

Detail of the display of the AMMG AT526 battery Tester

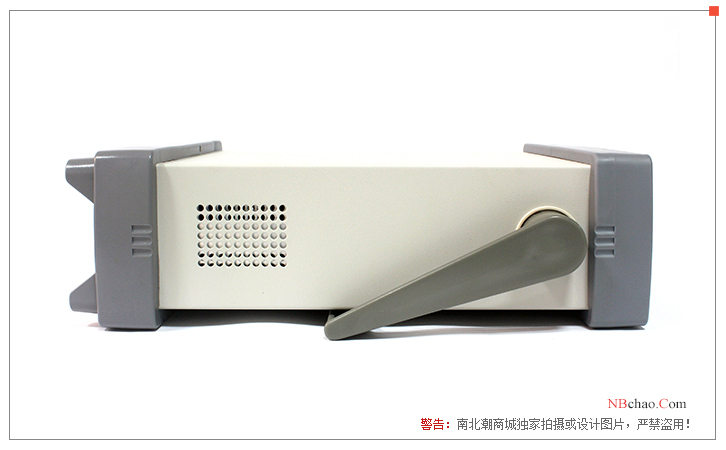

Side view of the AMBER AT526 battery Tester

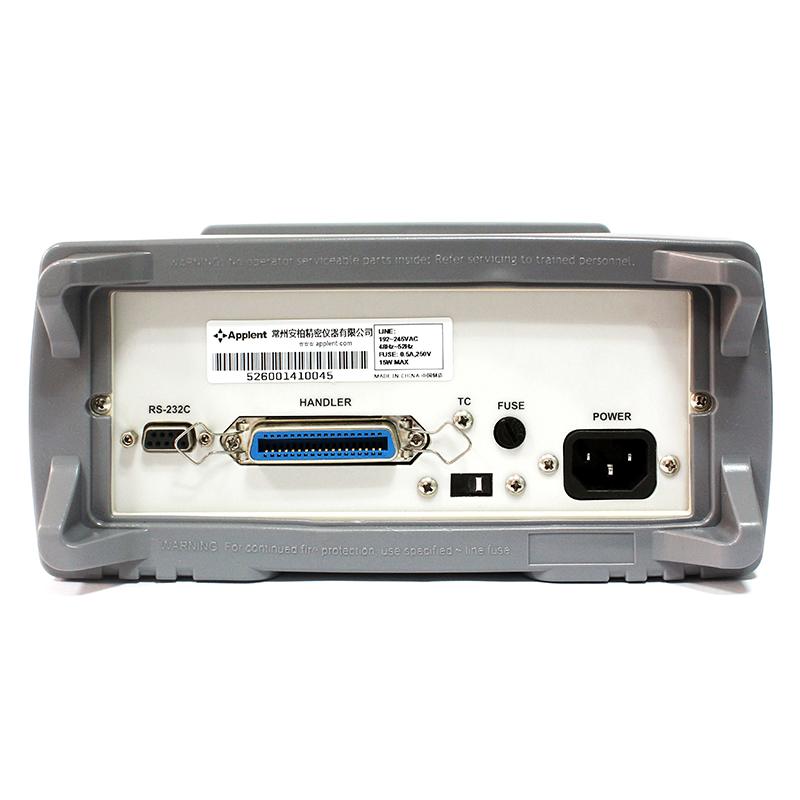

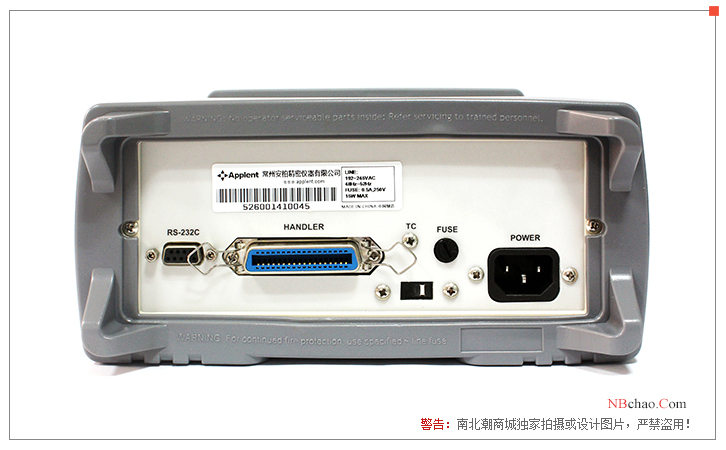

Rear view of AMBER AT526 battery Tester

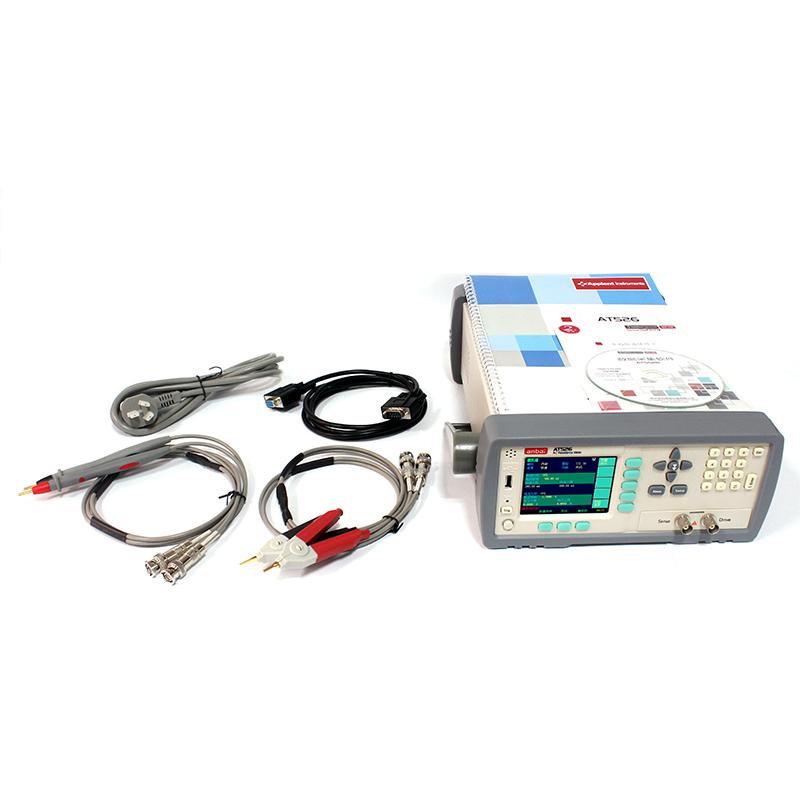

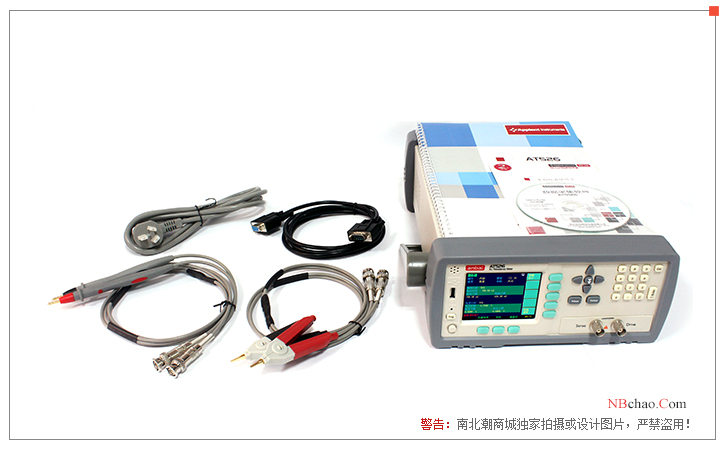

Amber AT526 battery Tester parts drawing

Application

● Test of various contact resistances

● Alkaline batteries, lead-acid batteries, lithium battery deterioration measurement and life assessment

● UPS online detection

● Battery factory inspection

● Supercapacitor equivalent resistance (ESR) measurement

Amber batteriesTester Selection Table

Amber Battery Tester Selection Table

FAQ
QIs there anything more accurate than this 526?
A Without higher accuracy, this one is already the highest.
QWhat is the function of Amber AT526 HANDLER PLC interface? Is it different from RS232?
A Hello, the RS-232 interface conforms to the serial data communication interface standard formulated by the Electronic Industry Alliance of America (EIA). The original full name is EIA-RS-232 (abbreviated as 232, RS232). It is widely used in computer serial interface peripheral connection. Connect cables and machinery, electrical characteristics, signal functions and transmission processes. The function of the output interface circuit of the PLC is to convert the signal output by the CPU into a signal that can drive external actuators, so as to control the power-on and power-off of electrical appliances such as contactor coils. The input and output interface circuit of the PLC generally adopts optical coupling isolation technology, which can effectively protect the internal circuit.
