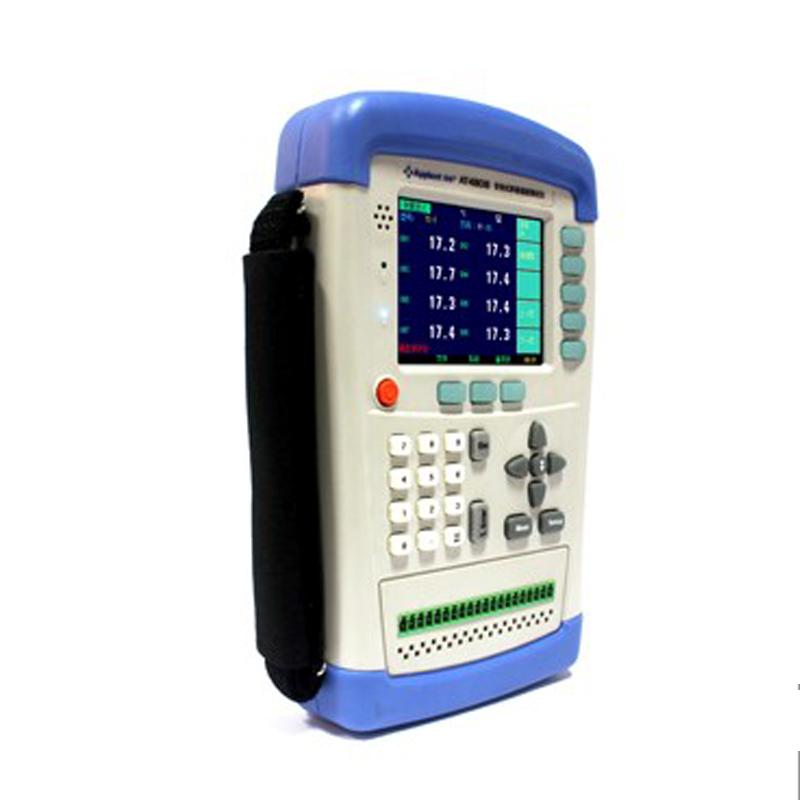

APPLENT AT4808 Handheld multi-channel temperature Tester 8 channels
AT4808
Applent AT4808 Multichannel temperature TesterSPEC
Applent AT4808 Multichannel temperature TesterDetails
Applent AT4808 Multichannel temperature TesterPacking list
- SKU
- NB005865
- indexing mark
- Thermocouple: J/K/T/E/S/N/B/R/type
- Basic Precision
- 0.2% + 1 ℃ (excluding Thermocouple)
- Temperature Measurement Range
- -200~1300℃
- resolution
- 0.2 ℃ +/- 2 characters
- Number of channels
- 8 channel
- Sampling rate
- Fast: 100ms Medium speed: 500ms Slow speed: 1s
- correction
- error correction per channel
- comparator
- Up and down super alarm (set up and down super value separately for each channel)
- Interface
- U disk interface, Mini-USB (virtual serial port)
- Standard software
- ATS45 data collection software
- cold junction compensation
- Precision: 0.5 ℃
- other
- TFT-LCD true color liquid crystal display, even detection function
- Power Supply
- Input: 100-240V~ 50/60Hz 0.35A Output: 9V 1A DC
- Power Supply
- 8.4V, Li, 2200mAh rechargeable battery
- Power Supply
- Charging time: 300Min max.
- Battery life
- ≥ 8 hours
- Dimension
- 130.23 *210.76*37.88mm
- Weight
- 650g
Introduction
AMPLUS AT4808 Handheld Multi-channel Temperature Tester is an ARM microprocessor-controlled handheld multi-channel temperature Tester, which samples multi-channel parallel testing, and simultaneously collects, alarms, and communicates 8-channel temperature transmission. Compatible with a variety of temperature sensors, fast response, stable data, and has the function of broken detection.
The sampling professional test principle makes the temperature test resolution to 0.1 degrees.
The AT4808 handheld multiplex temperature Tester has a wide range of adaptability and supports thermocouples type K/N/E/J/T/R/S/B. The test range is from -200°C~1800°C.
AT4808 adopts AMMG instrument operating system ATOS™v6 with independent property rights, which makes the operation of the test instrument simpler and more convenient, and relies on ATOS™v6 at the same time, the instrument can be well compatible with large-capacity memory and has strong PC communication capabilities, the instrument is equipped with USB interface as standard, and provides free communication through PC software can easily realize data acquisition, analysis and printing.
The AT4808 is housed in a rugged, vibration-resistant enclosure that can operate in harsh environments. Fully isolated digital and analog signals, safe and reliable. The AT4808 is equipped with a USB flash drive interface as standard, which supports real-time data storage.
Performance characteristics
● TFT true color LCD display, three display fonts
● Fast, medium and slow three-level scanning speed
● Cold junction compensation
● Standard USB disk interface, supporting large-capacity storage devices
● Standard MiniUSB interface
● Automatic detection of broken couples
● Designated channel scanning
● ATS48 data acquisition software is standard
● Powered by 8.4V lithium battery

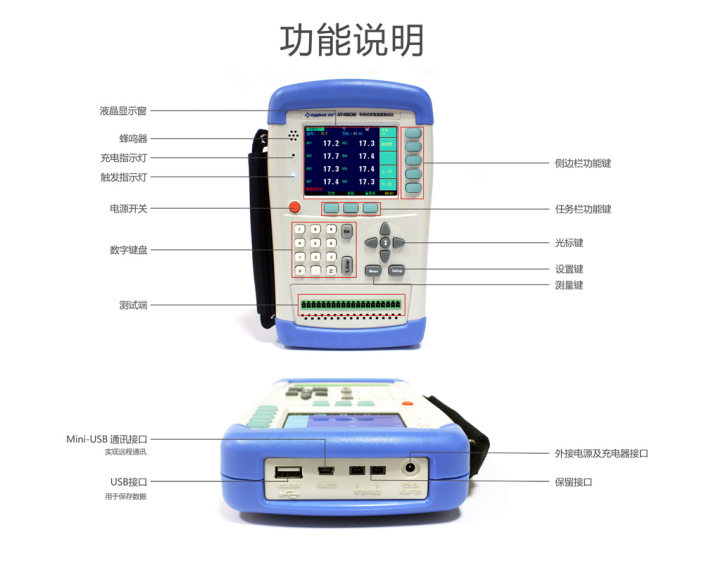

Structural diagram
Application
● It is suitable for multi-point temperature testing by manufacturers and quality inspection departments of home appliances, motors, electric heating appliances, thermostats, transformers, ovens, thermal protectors, power supplies, lighting, electric power, LEDs and other industries
Amber Multi-way Temperature Tester Selection Table
