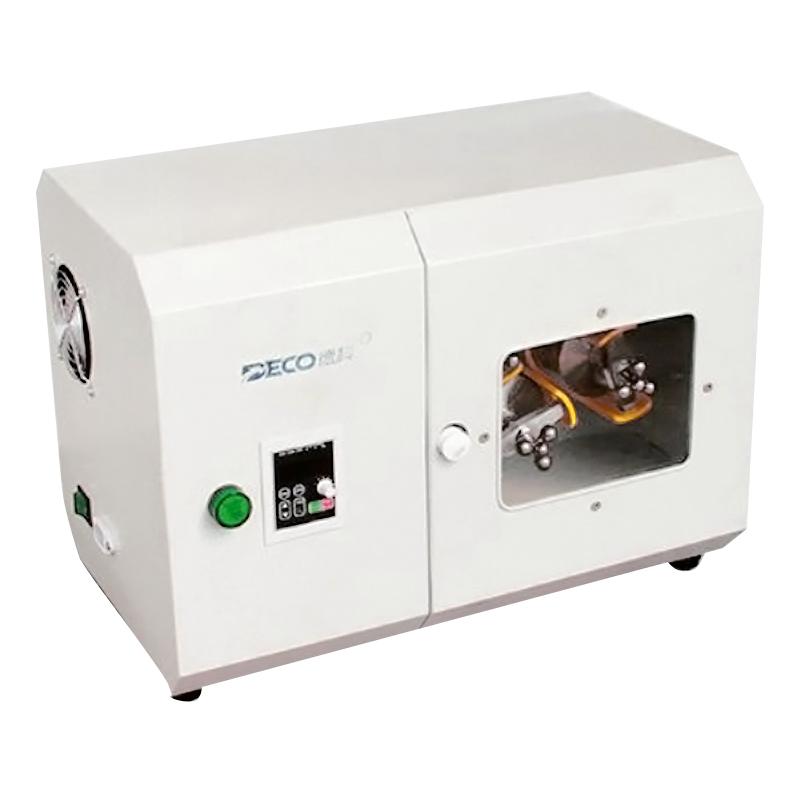

DECO DECO-PBM-H-0.4L Laboratory horizontal planetary high energy Ball mill
SE
DECO-PBM-H-0.4L
DECO DECO-PBM-H-0.4L Laboratory horizontal Planetary Ball millSPEC
DECO DECO-PBM-H-0.4L Laboratory horizontal Planetary Ball millDetails
DECO DECO-PBM-H-0.4L Laboratory horizontal Planetary Ball millPacking list
- SKU
- NB005958
- Application
- Pharmaceuticals, Food, Chemicals, Synthetic Materials, Electronics, Engineering, Metallurgy, Glass, Ceramics, Biology, Agriculture, etc
- sample characteristics
- Soft/hard materials, brittle materials
- Processing principle
- Friction, impact force
- Grinding method
- Dry grinding, wet grinding, low temperature grinding, vacuum grinding
- Regular crushing time
- 5-10min
- Feed particle size
- ＜2mm
- Minimum discharge particle size
- 0.1μm
- Processing Capacity
- 400ml
- station number
- 4pcs
- speed ratio
- 1:2
- Rotation speed of ball mill tank
- 1100rpm
- Planetary disk diameter
- 190mm
- Planetary disk thickness
- 6mm
- Type of ball mill
- Conventional type, vacuum type
- Ball mill material
- Stainless steel/nylon/polyurethane/polytetrafluoroethylene/polypropylene (PP)/polymer polyethylene (PE)/agate/aluminum oxide/zirconia
- Grinding tank size
- 25ml|50ml|100ml
- Grinding material
- Stainless steel, aluminum oxide, zirconia
- Grinding ball size
- 3mm 5mm 8mm 10mm
- function mode
- Forward operation (time can be set), reverse operation (time can be set), positive and negative alternating operation, intermittent operation (time can be set), Timer grinding (time can be set), pause, stepless speed regulation, emergency stop, restore
- Ground time setting
- Digital display, 00:00:01 to 99:59:59
- Intermittent operation time setting
- Digital display, 00:01:00~99:59:59
- Intermittent operation time setting
- Digital display, 00:00:01~ 99:59:59
- drive
- Frequency converter, three-phase AC motor
- Driving Power
- 0.25kw
- Power supply Voltage
- 110-120V / 220-240V
- Frequency
- 50-60Hz
- Power Connector
- single phase
- Dimension
- 500*300*350mm
- Net Weight
- 33kg
- Gross Weight
- 49kg
- Protection level
- IP53
- standard
- CE

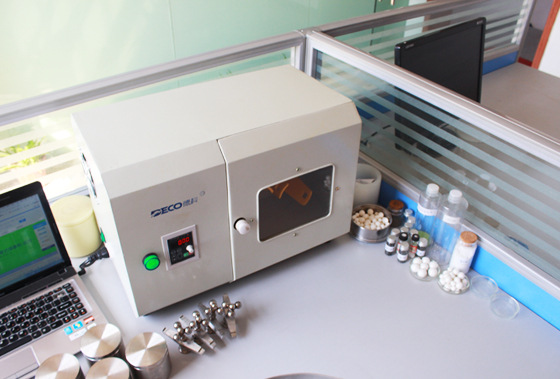

DECO Deco horizontal planetary high-energy ball mill "DECO-PBM-H-0.4L" is suitable for rapid, effective and accurate sample development, mixing and homogenization in the laboratory. It is a small volume, low noise and strong controllability , small grinding equipment with comprehensive functions, fine grinding and fast grinding, widely used in many fields such as chemical industry, medical treatment, food, beauty, metallurgy, ceramics, glass, scientific research and teaching;
In the planetary ball mill, the ball mill jar with the grinding balls and samples rotates in reverse at high speed under the high-speed motion of the planetary disc, and the sample and the grinding balls are constantly colliding and rubbing against the inner wall of the ball mill jar. The energy, this huge energy makes the sample achieve a good crushing effect; DECO Deke planetary high-energy ball mill has a short grinding time, and the output reaches nano-scale ultra-fine particle size;
Performance advantages
1. The grinding time is short, the output particle size is fine and the precision is high;
2. The ball mill tank operates in the bedroom, effectively preventing the sample from sinking to the bottom and grinding more evenly;
3. High consistency of repeated grinding;
4. A wide range of ball mill materials can be selected, and various types of materials can be ground;
5. With four working positions, it can grind up to 4 kinds of materials of different types and qualities at a time;
6. Under the same conditions, the accuracy of grinding samples for each batch of each jar is high;
7. It has many functions such as reverse, forward and reverse alternate operation, stepless speed regulation, timing, intermittent operation, safety protection, power-off memory, data storage, etc.;
