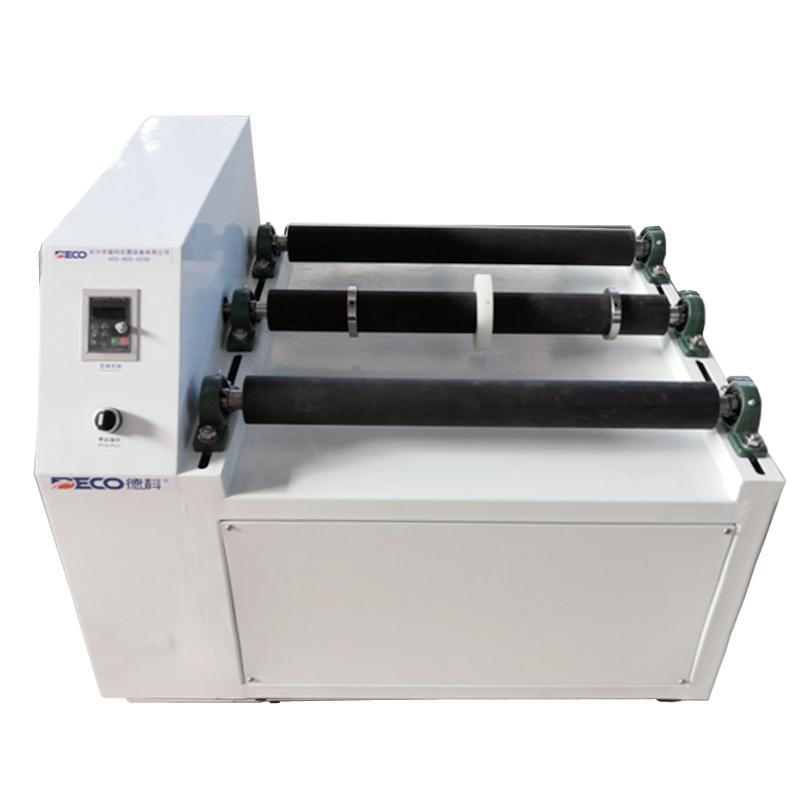

DECO 20L DECO-PM-4 * 5L horizontal can mill Ball mill single layer/four cans
DECO-PM-4*5L
DECO DECO-PM-4*5L Horizontal tank mill Ball millSPEC
DECO DECO-PM-4*5L Horizontal tank mill Ball millDetails
DECO DECO-PM-4*5L Horizontal tank mill Ball millPacking list
- SKU
- NB006008
- application
- Crushing, grinding, mixing, homogenizing, polishing, etc
- Application
- Agriculture, Chemical, Beauty, Glass, Ceramics, Spinning & weaving, Electronics, Teaching, Research, etc
- sample characteristics
- Heavy, ultra-light, high tack, strong, liquid, corrosion, easy oxidation, etc
- pulverization principle
- Friction, impact, shearing
- Ground structure
- horizontal
- loading method
- intermittent
- Dry grinding
- Yes
- wet grinding
- Yes
- Vacuum mill
- optional
- station level
- single layer
- Ground tank station
- 4pcs
- Ball mill tank Volume
- 0.5L / 1L / 1.5L / 2L / 3L / 4L / 5L
- Rotation speed of ball mill tank
- 480r/min
- Drive shaft material
- chrome plated steel
- Drive shaft diameter
- 60mm
- Rubber roller material
- rubber
- Type of ball mill
- Horizontal practical type, horizontal vacuum type
- Ball mill material
- Stainless steel, nylon, polypropylene (PP), ultra-high density polyethylene (PE), polytetrafluoroethylene, polyurethane, corundum, zirconia, agate
- Ground ball material
- Stainless steel, corundum, aluminum oxide, agate, cemented carbide, etc
- Grinding ball size
- 3-30mm
- Ground time setting
- 0-3600 minutes
- pause time setting
- 0-3600 seconds
- drive
- Frequency converter, three-phase AC motor
- driving Voltage
- 220V
- Driving Power
- 0.75kw
- Frequency
- 50Hz
- Power Connector
- single phase
- Protection level
- IP53
- Accessories
- manual, warranty card, Certificate of conformity
- Body size (width * depth * height)
- 860*660*690mm
- Net Weight
- 90kg
Introduction:
"DECO-PM-4*5L" tank grinding ball mill, also known as roller table machine, can be used for powder production in various industries such as chemical industry, materials, metallurgy, ceramics, glass, etc., as well as sample development in universities and scientific research units. The equipment can prevent up to 4 ball mill pots with a volume of 0.5-5L at the same time, with a maximum output of 20L, with three chrome-plated optical shafts, adjustable optical shaft spacing and rubber roller spacing to facilitate the use of ball mill jars of different volumes, the selection of good Dedong brand motor and Delixi brand frequency conversion system, with stepless speed regulation, forward and reverse operation, intermittent operation, timing and other functions, widely used in various fields of industrial powder production and scientific research and teaching sample development.
Operating Principle:
The ball mill has three shafts, one of which is powered by the motor pulley and can roll at high speed, and the rubber roller interspersed on the shaft is made of polyurethane, which has good friction, heat resistance and wear resistance, and the ball mill tank placed on the rubber roller also rolls at high speed under the rolling of the transmission shaft, which makes the material and the grinding ball in the ball mill tank produce huge energy under the action of gravity, friction and impact force, and this energy can make the material achieve the effects of crushing, mixing and homogenization;
Application examples:
Paint, wet grinding, titanium oxide, quartz sand, zirconia, alumina, graphite, fibers, seeds, ginseng......
Process characteristics:
1. The transmission shaft is made of chrome-plated material, which is bright and beautiful, no rust, and is more convenient for the rubber roller to adjust the distance laterally;
2. The thickened square steel structure is selected, the control cabinet shell is finely made, the thickened material is thickened, and the whole is strong and durable;
3. The inside and outside are treated with milky white spraying, which is smooth and exquisite and effectively anti-corrosion;
4. The selection of Delixi brand control system, Dedong brand good motor;
5. The control cabinet is easy to open, easy to overhaul and maintain;
