JINGKELIAN QHQ-A Portable pencil method Determination of Hardness Gauge Paint film Hardness test

QHQ-A Pencil Hardness Tester that can test Paints Hardness, which is a three-in-one of 1000, 500g, and 750g. Technical characteristics of paint film Hardness test are determined by the pencil Hardness level of the plowed paint film

$156.00/set

PromotionLoading...

Coupon

Model：

QHQ-A

Certificate

JingKeLian

Manufacturer authorization

Contact

Details SPEC Con OI

JingKeLian QHQ-A Portable pencil Hardness GaugeSPEC

JingKeLian QHQ-A Portable pencil Hardness GaugeDetails

JingKeLian QHQ-A Portable pencil Hardness GaugePacking list

SKU: NB000619

Applicable standard: GB/T6739-86 JISK5401 ASTMD2197

load: 500/750/1000g

test angle: 45°

Standard pencil: 6B-6H

Scratch speed: 1mm/s

Specifications: 90×75×60mm

QHQ-A

Portable pencil Hardness Gauge

QHQ-A portable pencil method Hardness Tester is a common pencil Hardness Tester, mainly through the test pencil of different hardness values, manually push the pencil Hardness Tester on the surface of the paint film to scratch, and identify the hardness of the paint film.QHQ-A Portable Pencil Method Hardness Tester is a Hardness Tester with mechanical structure design, which is very simple to operate. Fine scienceThe outer box of QHQ-A pencil Hardness Tester is a well-used wooden box, and the pencil Hardness Tester model name is printed on the surface of the box.

Portable pencil Hardness TesterOperating Principle

QHQ-AThe portable pencil method Hardness Tester is mechanical, and the three-point contact with the tested surface (two points is the wheel, one point is the lead core) always ensures that the pencil forms a 45° angle with the tested surface, which is used to push the movement of the Hardness Tester, and the test process can be completed.

Portable pencil Hardness TesterUses and technical characteristics

QHQ-APortable pencil Hardness TesterDetermination of paint film hardness test by plow paint film pencil hardness grade Technical characteristics: Hardness is expressed as the pencil hardness grade of the plow paint film under specified test conditions.

Detail diagram

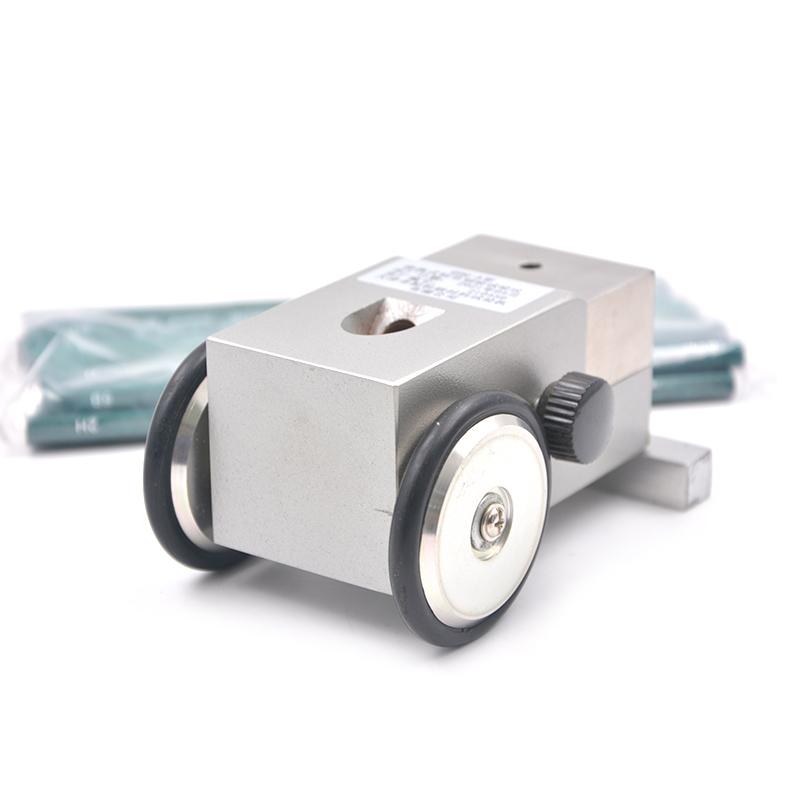

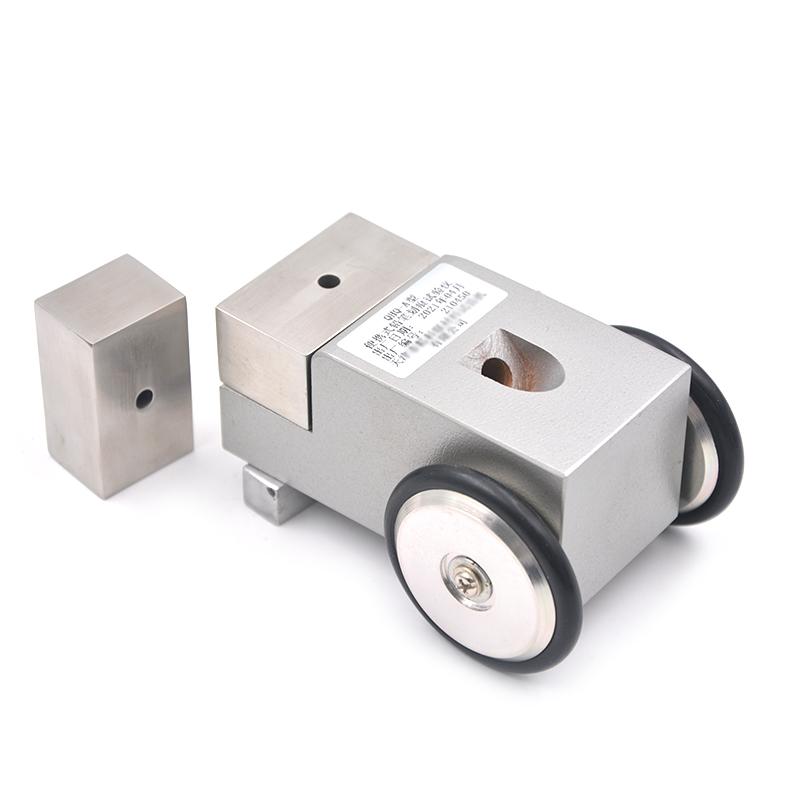

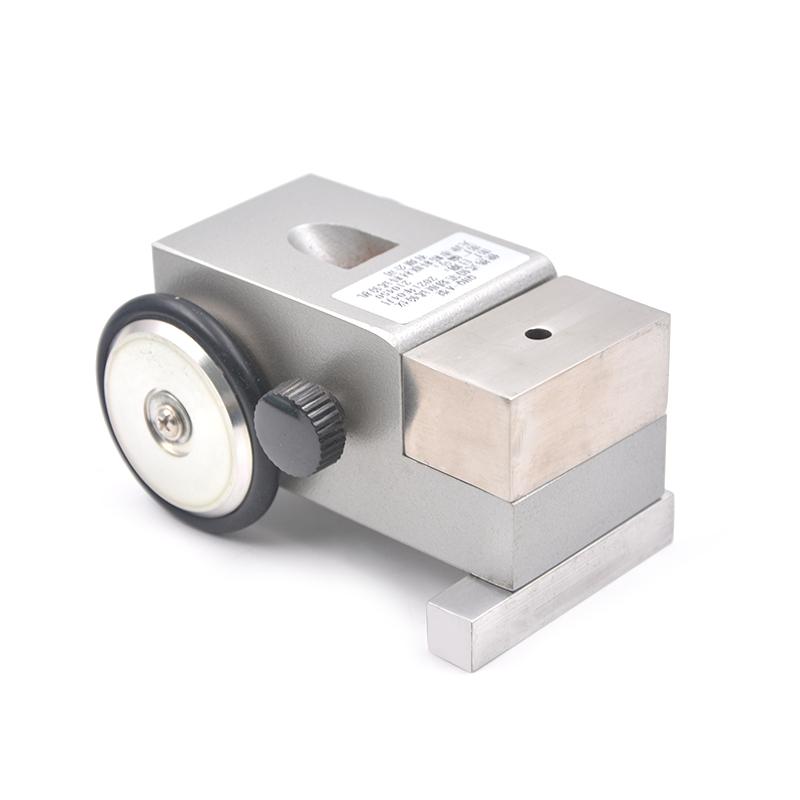

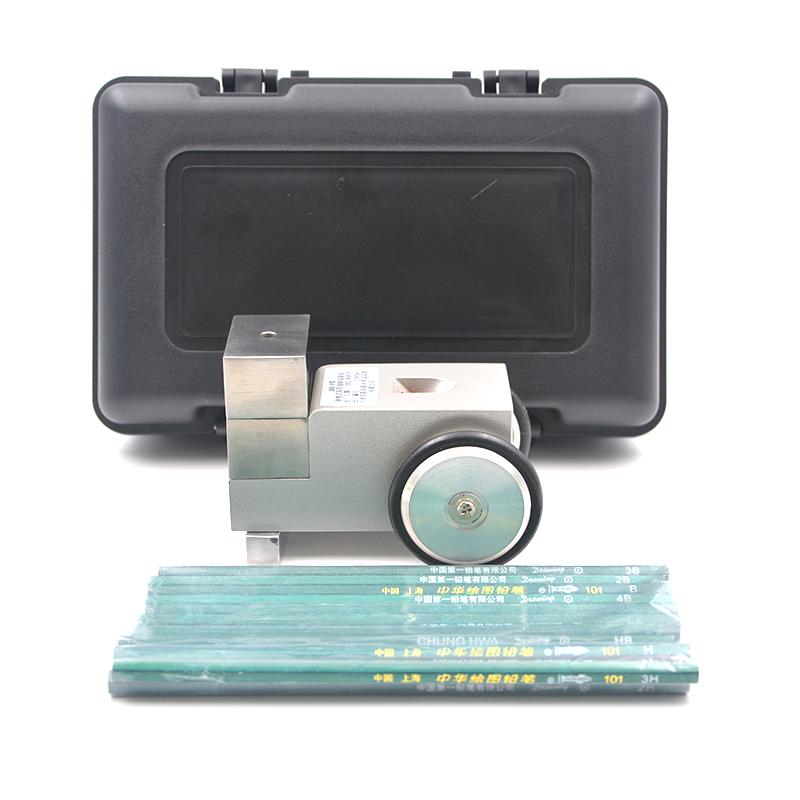

QHQ-A pencil Hardness Tester real shot picture

【Extended Reading】QHQ-A Pencil Hardness Tester Instruction Manual

FAQ

QI want to test the film Hardness, is there a portable and easy to operate instrument recommended?

A The QHQ-A Portable pencil hardness gauge adopts a mechanical structure design, which is very simple to operate, and can be tested by hand only. The three-point contact design can automatically maintain the 45 ° standard test angle, which is very suitable for rapid inspection of paint film Hardness in the field.

QIs this pencil hardness tester with load, or do you need to match it yourself?

A Equipped

QHow many pencils are there in this standard package? Is it one for each specification of 6B-6H? This is for cash sale, right?

A One pencil each, 6B-6H, cash sale

QPencil hardness tester is 750g?

A Hello, no, the QHQ-A has a load of 1000g.

QMeet ASTMD3363 Portable Pencil Hardness Tester

A QHQ-A Portable Pencil Method Hardness Tester, please refer to it.

QWhich of the QHQ-A Pencil hardness testers from Kexin and Jingke is better to use?

A Hello, both are good domestic brands. Both are portable Pencil hardness testers with a load of 1000g. For Miscellaneous, you can enter the corresponding product page to make a comparison. Thank you for your consultation.

QHow many pencils are there in the matching package?

A Hello, the pencil of this Pencil hardness tester is 6H-6B, which are 6B, 5B, 4B, 3B, 2B, B, HB, H, 2H, 3H, 4H, 5H, 6H, a total of 13 pcs.

QDoes this pencil hardness tester contain this pencil?

A QHQ-A pencil hardness tester contains a set of pencils.
