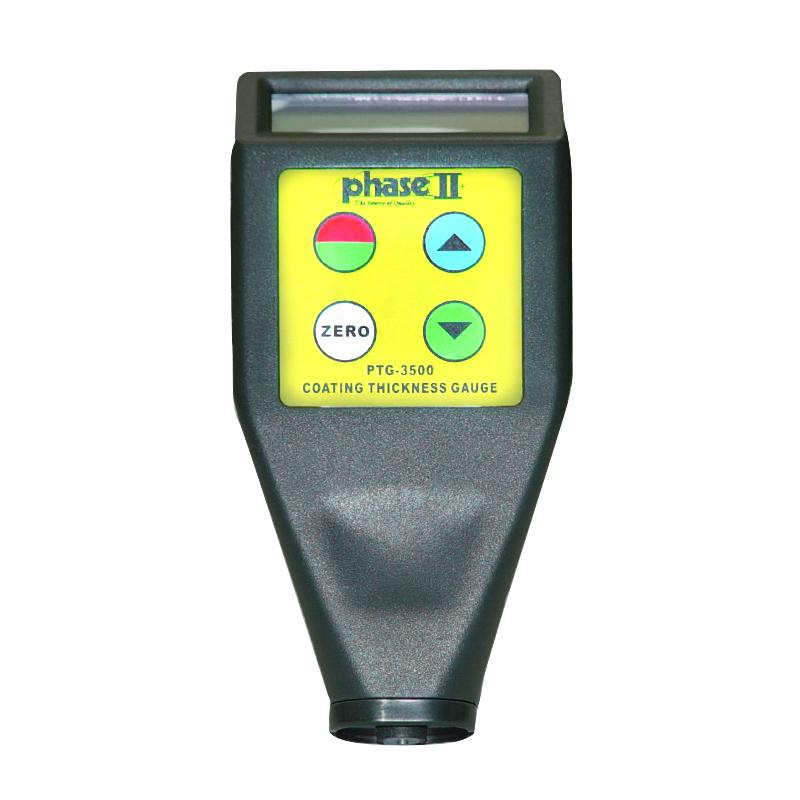

PhaseII PTG-3500 Coating Thickness Gauge
PhaseII brand Coating Thickness Gauge PTG-3500 has two different Measuring methods, respectively using eddy Current and magnetic Induction principle for paint thickness measurement.
Model：
PTG-3500
PhaseII
Similar products
-
PHYNIX Surfix SX-N1.5 non-ferrous paints Thickness Gauge 1500μm -
IPRE CT400 magnetic Induction eddy Current Coating Thickness Gauge Measurement range 0~1500μm$ 254.00SE -
IPRE CT300 paints film thickness Measurement Instrument magnetic Induction/eddy Current dual-use$ 371.00SE -
YIBAI CTG-600 Coating Thickness Gauge dual-use Film Thickness Gauge$ 282.00SE
PhaseII PTG-3500 Coating Thickness GaugeSPEC
PhaseII PTG-3500 Coating Thickness GaugeDetails
PhaseII PTG-3500 Coating Thickness GaugePacking list
- SKU
- NB006358
- Measurement principle
- Magnetic Induction + eddy Current
- Measurement range
- 0~1000µm
- margin of error
- ±3%
- resolution
- 0.1μm|1μm
- Minimum measurement surface
- Φ5mm
- Minimum radius of curvature
- Convex 3mm; Concave 30mm
- thinnest substrate
- 0.5mm(F)；50mm(N)
- probe
- Line probe
- Power Supply
- 4 * AA battery
- system language
- Chinese
- Display screen
- 4-Bit LCD display
- Weight
- 260g
- Dimension
- 161*69*32mm
- Minimum measurement surface
- 5*5mm

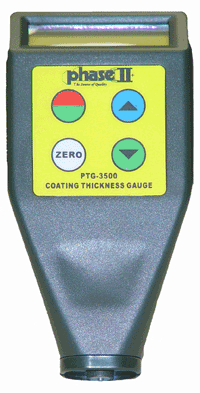

PTG-3500
Coating Thickness Gauge
Simplified coating thickness measurement
The PhaseII brand coating Thickness Gauge PTG-3500 has two different measurement methods that utilize the principles of eddy current and magnetic induction to measure the thickness.
Non-destructive measurement, and its accuracy.
With this professional Thickness Gauge, you can easily measure the thickness of non-magnetic coatings on magnetic substrates, or non-conductive coatings on non-magnetic substrates, by using an integrated built-in probe or a split external probe.
Phase II brand PTG-3500 is used in a variety of industries including manufacturing, general engineering, commodity inspection, and more
FAQ
QCoating thickness gauge can be applied to ISO2178?
A
OK
QCan the PTG-3500 Coating thickness gauge test high temperature objects?
A
Hello, yes, but the maximum temperature can only reach 150 ° C.
QWhat is the thinnest substrate Film thickness that can be tested by the PTG-3500 Coating thickness gauge of PhaseII?
A
Hello, the iron base is 0.5mm, and the non-iron base is 50mm.
QDoes the PhaseII PTG-3500 come with a battery?
A
Hello, yes, with 4 AA batteries.
