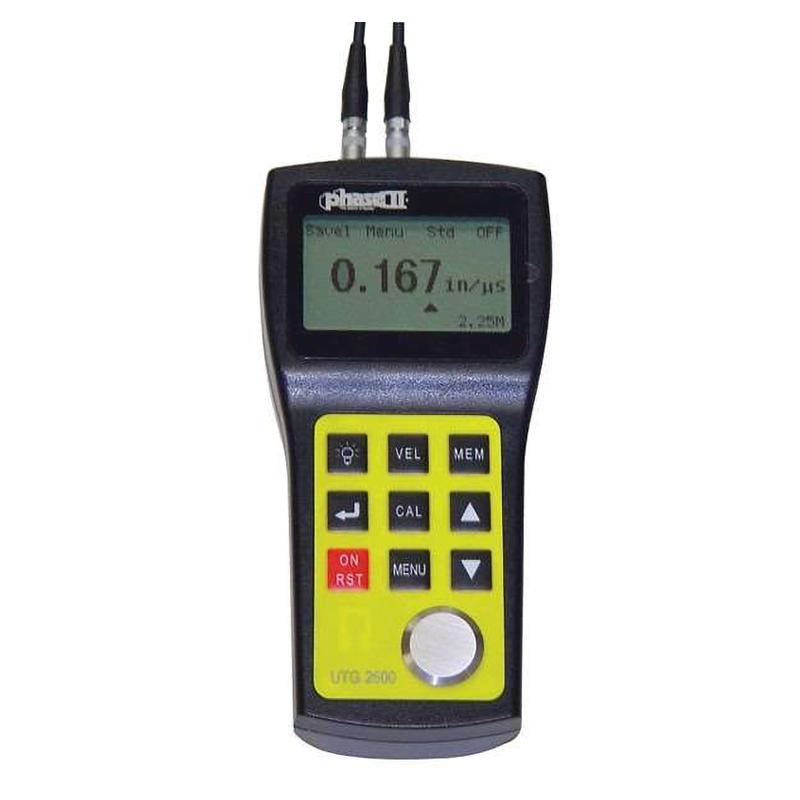

US Phase II UTG-2600 Ultrasonic Thickness Gauge with penetrating coating function, model

Phase II UTG-2600 Ultrasonic Thickness Gauge Measurement range Standard mode: 0.7~ 200mm (in steel, standard probe); coating mode: 3.0~20mm, probe style split probe, probe Frequency 4MHz, Speed of sound range 1000~9999m/s, measurement error +/- (1% H + 0.018) mm, resolution 0.07/0
Model：
Contact
Details SPEC CAT
Similar products

PhaseII UTG-2600 Ultrasonic Thickness GaugeSPEC

PhaseII UTG-2600 Ultrasonic Thickness GaugeDetails

PhaseII UTG-2600 Ultrasonic Thickness GaugePacking list

SKU
NB006372
Measurement range
Standard mode: 0.7~ 200mm (in steel, standard probe); coating mode: 3.0~20mm
Probe style
Split probe
Probe Frequency
4MHz
Speed of sound
1000~9999m/s
measurement error
±(1%H+0.018)mm
Display resolution
0.07/0.007mm
Data storage
Store 500 measurements in 5 groups
Operating language
Chinese
Display
4-Bit LCD with backlight
Host size
149*73*32mm
Weight
160g
Application
Steel, Aluminum, Titanium, Plastic Products, Ceramics, Glass and Miscellaneous Good Ultrasonic Conductors
Power Supply
2 * AA alkaline battery
Max/min alarm preset
Yes.
Environmental temperature
0~50℃
Probe Frequency
4Hz
micro printer
optional
Operating Time
100h
Power consumption
Operating current must not exceed 3V
UTG-2600
Ultrasonic Thickness Gauge

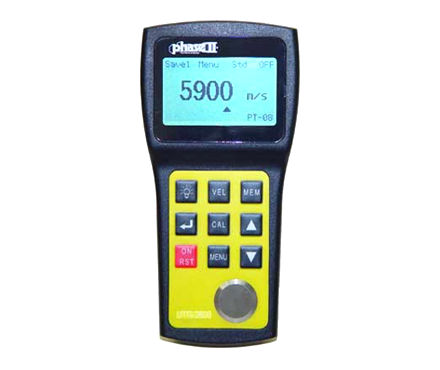

US Phase II UTG-2600 Ultrasonic Thickness Gauge with penetrating coating function, model Picture

This new ultrasonic Thickness Gauge has a penetrating coating capability

Model UTG-2600

This smart Thickness Gauge uses expertise to read the thickness of a pipe wall through coatings and paints without compromising measurement accuracy. The UTG-2600 has common measurement functions, including basic measurement, scanning, sound velocity adjustment, and large memory.


The UTG-2600 is mainly used to measure the thickness of metallic and non-metallic materials, such as steel, aluminum, titanium, plastic products, ceramics, glass and other ultrasonic conductors. As long as the upper and lower surfaces of the part to be measured are parallel, the UTG-2600 can accurately display the measured values in metric or imperial systems with a simple calibration of known thickness and sound velocity.



FAQ
QMeasurement equipment wall thickness gauge carbon steel material, the thickness of the material itself 0-30mm, there may be paints layer
A This one is ok.
QCan UTG-2600 Ultrasonic Thickness Gauge print data?
A Hello, yes, but you need to buy another micro printer.
QDo you have the Ultrasonic Thickness Gauge involved in GB/T11344?
A The UTG-2600 Ultrasonic Thickness Gauge will do
