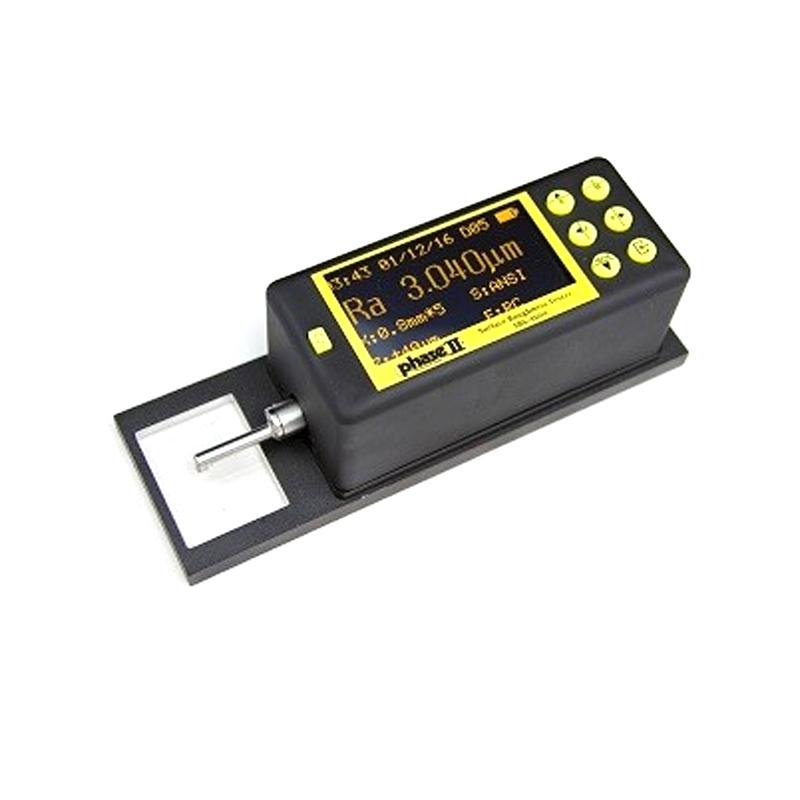

PHASE II SRG-4500 Portable Surface Roughness Tester

Model：
Contact
Details SPEC CAT

PhaseII SRG-4500 Portable surface roughness meterSPEC

PhaseII SRG-4500 Portable surface roughness meterDetails

PhaseII SRG-4500 Portable surface roughness meterPacking list

SKU
NB006374
Display mode
digital explicit
Measurement parameters
Ra、Rz、Ry、Rq、Rt、Rp、Rs、Rv、Rms(Rq)、Rmax、Rm、R3z、Rsk、Rpc、Rmr
Measurement range
Ra, Rq：0.01~40µm Rz,Ry,Rp,Rt,R3z, Rm：0.02~160µm Sm, S：2~4000µm Rsk：0~100%
Resolution
0.01μm|0.02μm|0.04μm
Error of indication
≤±10%
Indication variability
≤6%
Sampling length
0.25mm|0.8mm|2.5mm
Sensors - Materials
Displacement Differential Inductance Sensors, Diamond, 90 ° cone angle, 5μm tip radius
Sensors - Force Measurement
4mN
Stroke length
17.5mm
filter
RC、PC-RC、GAUSSIAN、D-P
Interface
USB
Power Supply
Built-in lithium-ion rechargeable battery, charging with 8.4V, 500mA, Charging time is about 3 hours
Dimensions
119*47*65mm
Product Weight
440g
Applicable standards
ISO、DIN、JIS、ANSI
Operating Environment
5-40℃
Sensors coasting speed
Speed = 1mm/s (sampling length is 2.5mm) Speed = 0.5mm/s (sampling length is 0.8mm); Speed = 0.135mm/s (sampling length is 0.25mm);
SRG-4500
Portable surface roughness meter

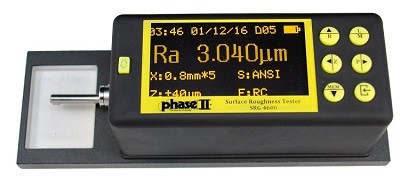

PHASE II SRG-4500 Portable Surface Roughness Tester Picture

PHASE II company introduces a new model of Specialized Technology Surface Roughness Tester SRG-4500, which adheres to the highest level of quality control in production, workshop and laboratory. The extended storage and output capabilities, combined with a wide range of useful features, make the SRG-4500 an obvious participant in ultra-accurate surface profile testing.

This kind of surface roughness Tester is distinguished from other brand products by high precision, more measurement parameters and simple operation. The PHASE II Surface Roughness Tester provides 15 popular surface roughness parameters including Ra, Rq(Rms), Rt, Rz and Rmax with extreme sensitivity and accuracy. ）

The high sensitivity and precision of the diamond stylus enable a display resolution of up to 0.001 microns. The SRG-4500 Surface Roughness Tester uses a simple internal structure that allows for metric to inch conversion, measurement length, sample length, parameters, test level (sensor position), digital filter and much more!
The battery-powered portability allows the SRG-4500 Surface Roughness Tester to increase productivity throughout the job shop.

  • Capable of measuring 15 different roughness parameters

  • The roughness of the I/O.D. surface can be measured

  • Sensor stylus position indication

  • The USB port is connected to the PC

  • Memory storage function

Optional

  • - Connecting the poles

  • - Accurate measurement platform

  • - Deep groove sensors

  • - Small hole sensor

  • - Curved surface sensor

FAQ
QDoes this portable surface roughness instrument meet the GB/T6060.5 standard?
A The portable surface roughness instrument is suitable for GB/T6060.5, please consult customer service for detailed application definition
